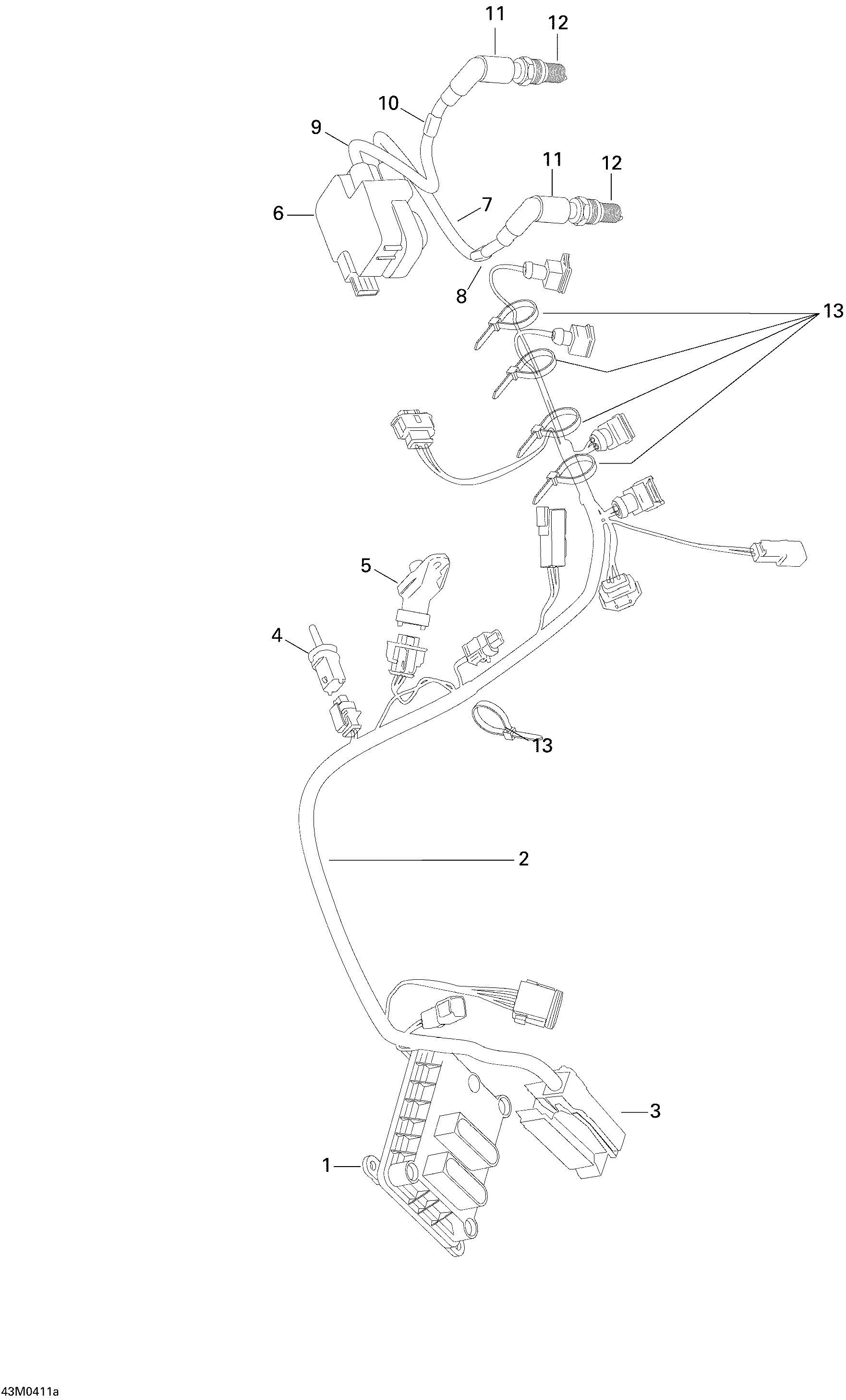

10- Engine Harness для BRP Ski-Doo MX Z 600 HO SDI - 2004
-
№АртикулНазвание
-
1420665025 Electronic BoxElectronic Box
-
2420664316 Engine Wiring HarnessEngine Wiring Harness
-
3420664450 Connector HousingConnector Housing
-
4420966970 Temperature SensorTemperature Sensor
-
5420274055 Pressure SensorPressure Sensor
-
6420266070 Ignition CoilIgnition Coil
-
7420664300 Ignition Cable (365 mm) (Mag)Ignition Cable (365 mm) (Mag)
-
8420660632 Sleeve MagSleeve Mag
-
9420664307 Ignition Cable (430 mm) (PTO)Ignition Cable (430 mm) (PTO)
-
10420660630 Sleeve PTOSleeve PTO
-
11278000237 Spark Plug CapSpark Plug Cap
-
12415128524 Spark Plug NGK BR9ECS 0.8mmSpark Plug NGK BR9ECS 0.8mm
-
13420866714 Tie RapTie Rap
