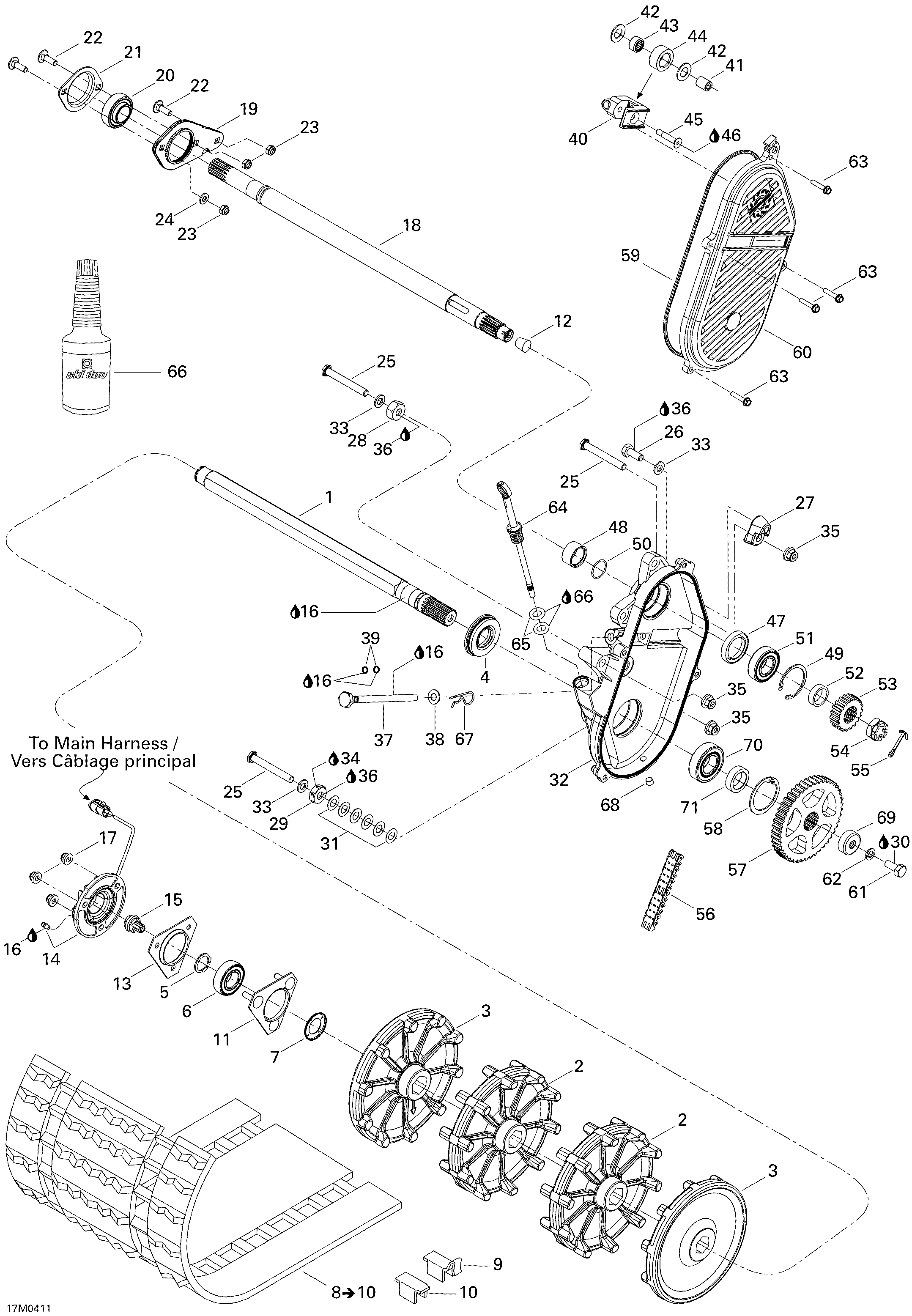

05- Drive System для BRP Ski-Doo MX Z 600 HO SDI - 2004
-
№АртикулНазвание
-
1501027400 Drive AxleDrive Axle
-
2504152198 Sprocket (10 Teeth)Sprocket (10 Teeth)
-
3504152199 Half Sprocket (10 Teeth)Half Sprocket (10 Teeth)
-
4504151918 Oil Seal Ass'YOil Seal Ass'Y
-
5371910200 CirclipCirclip
-
6504152009 Ball BearingBall Bearing
-
7501017400 Ball Bearing ProtectorBall Bearing Protector
-
8504152305 Track Ass'Y (15''X136''X1.250''). 15''X136''X1.250'' / Includes 8 to 10Track Ass'Y (15''X136''X1.250''). 15''X136''X1.250'' / Includes 8 to 10
-
504152314 Track Ass'Y (15''X136''X1.750''). 15''X136''X1.750'' / Includes 8 to 10Track Ass'Y (15''X136''X1.750''). 15''X136''X1.750'' / Includes 8 to 10
-
504152381 Track Ass'Y (15''X121''X1.000'' SP 66-66-67). 15''X121''X1.000'' SP 66-66-67 / Includes 8 to 10Track Ass'Y (15''X121''X1.000'' SP 66-66-67). 15''X121''X1.000'' SP 66-66-67 / Includes 8 to 10
-
504152383 Track Ass'Y (15''X121''X1.250''). 15''X121''X1.250'' / Includes 8 to 10Track Ass'Y (15''X121''X1.250''). 15''X121''X1.250'' / Includes 8 to 10
-
9500003400 Guide Cleat. 15''X136''X1.250''Guide Cleat. 15''X136''X1.250''
-
500003400 Guide Cleat. 15''X136''X1.750''Guide Cleat. 15''X136''X1.750''
-
500003400 Guide Cleat. 15''X121''X1.000'' SP 66-66-67Guide Cleat. 15''X121''X1.000'' SP 66-66-67
-
500003400 Guide Cleat. 15''X121''X1.250''Guide Cleat. 15''X121''X1.250''
-
10500003300 Cleat. 15''X136''X1.250''Cleat. 15''X136''X1.250''
-
504151828 Cleat. 15''X136''X1.750''Cleat. 15''X136''X1.750''
-
500003300 Cleat. 15''X121''X1.000'' SP 66-66-67Cleat. 15''X121''X1.000'' SP 66-66-67
-
500003300 Cleat. 15''X121''X1.250''Cleat. 15''X121''X1.250''
-
11504151860 Bearing HousingBearing Housing
-
12414784800 CorkCork
-
13501025000 FlangeFlange
-
14504152345 SensorSensor
-
15504152040 Magnetic AdaptatorMagnetic Adaptator
-
16219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
17233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
18504152018 Counter ShaftCounter Shaft
-
19504151968 SpacerSpacer
-
20504152026 Ball BearingBall Bearing
-
21501026900 FlangeFlange
-
22207782544 Carriage Bolt M8 X 25Carriage Bolt M8 X 25
-
23232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
24234081410 Flat Washer 8 mmFlat Washer 8 mm
-
25250000151 Hex Screw M10 X 80Hex Screw M10 X 80
-
26207102544 Hex Screw M10 X 25Hex Screw M10 X 25
-
27504152252 SpacerSpacer
-
28504083800 SpacerSpacer
-
29504152237 SpacerSpacer
-
30293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
31504073700 WasherWasher
-
32504152312 ChaincaseChaincase
-
33503183800 WasherWasher
-
34293800070 Loctite 767, Antiseize, 8 OzLoctite 767, Antiseize, 8 Oz
-
35233201414 Elastic Flanged Stop Nut M10Elastic Flanged Stop Nut M10
-
36293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
37732601314 Adjusting ScrewAdjusting Screw
-
38234001410 Flat Washer 10 mmFlat Washer 10 mm
-
39414484400 O-RingO-Ring
-
40504151951 Chain TensionerChain Tensioner
-
41504080200 SpacerSpacer
-
42504080300 WasherWasher
-
43405403000 Needle BearingNeedle Bearing
-
44414531300 RollerRoller
-
45732601144 ScrewScrew
-
46293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
47415049300 SealSeal
-
48507031500 SpacerSpacer
-
49371901700 Circlip (Interior)Circlip (Interior)
-
50414876700 O-RingO-Ring
-
51504152006 Ball BearingBall Bearing
-
52504147200 ShimShim
-
53504091100 Sprocket (22 Teeth)Sprocket (22 Teeth)
-
504096200 Sprocket (21 Teeth)Sprocket (21 Teeth)
-
504152030 Sprocket (19 Teeth)Sprocket (19 Teeth)
-
54250000012 Hex Castellated Nut M20Hex Castellated Nut M20
-
55371006300 Cotter PinCotter Pin
-
56504151830 Drive Chain, Large (72 Links)Drive Chain, Large (72 Links)
-
504151857 Drive Chain Large (74 Links)Drive Chain Large (74 Links)
-
57504148500 43 Teeth Sprocket (Large)43 Teeth Sprocket (Large)
-
58415064300 Circlip (Interior)Circlip (Interior)
-
59415046400 O-RingO-Ring
-
60504152027 Chaincase CoverChaincase Cover
-
61207102544 Hex Screw M10 X 25Hex Screw M10 X 25
-
62234100602 Lock Spring Washer 10 mmLock Spring Washer 10 mm
-
63210263080 Hex Forming Screw M6 X 30Hex Forming Screw M6 X 30
-
64504151703 Filler Cap Ass'YFiller Cap Ass'Y
-
65414969400 O-RingO-Ring
-
66413803300 Synthetic Chaincase Oil, 12 x 355 mlSynthetic Chaincase Oil, 12 x 355 ml
-
67414575600 Hair PinHair Pin
-
68504151921 Plug 1/8''-27Plug 1/8''-27
-
69504152104 CapCap
-
70504152005 Ball BearingBall Bearing
-
71504152058 ShimShim
