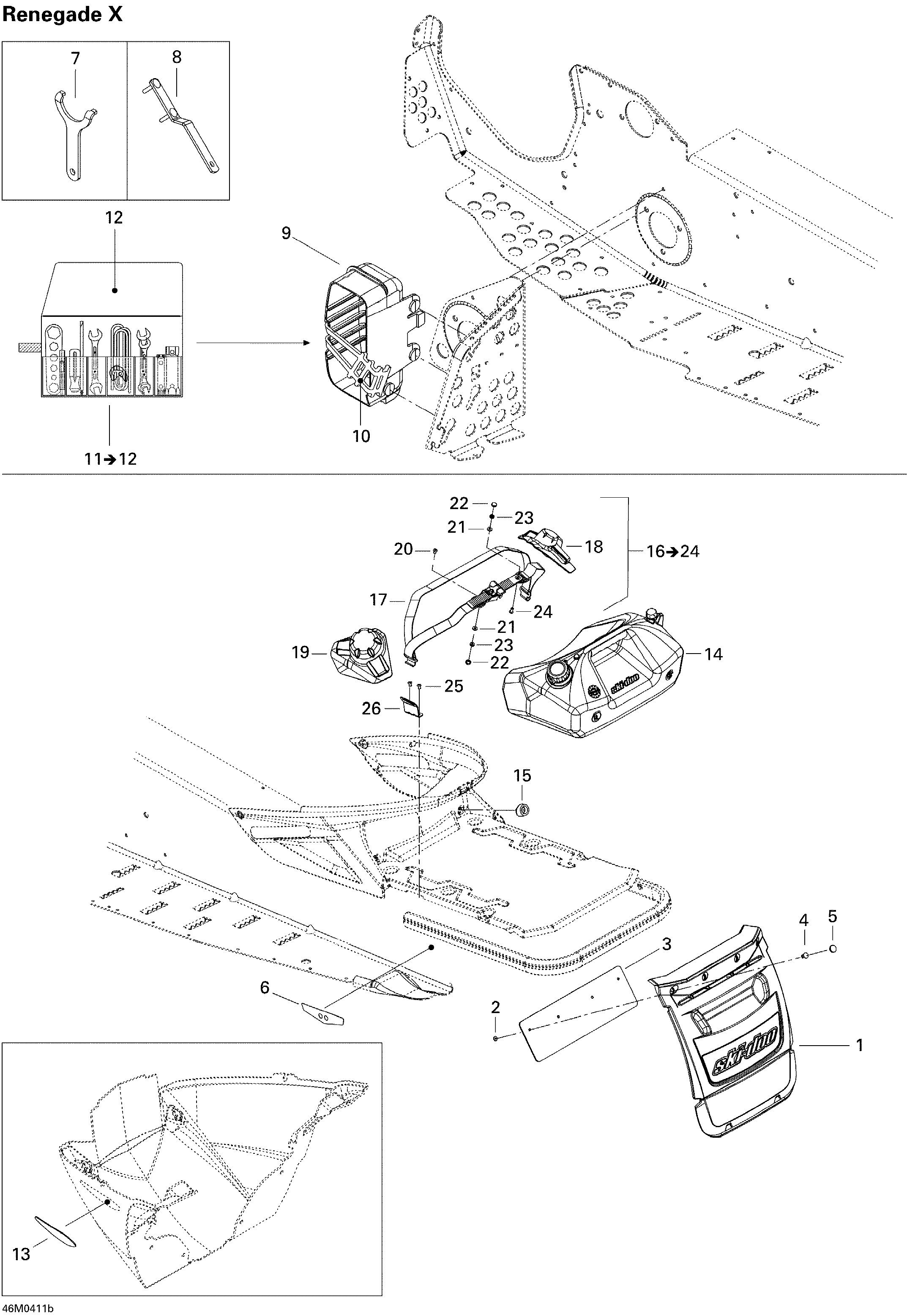

09- Utilities (RENEGADE X) для BRP Ski-Doo MX Z 600 HO SDI - 2004
-
№АртикулНазвание
-
1520000446 Snow GuardSnow Guard
-
2517225900 Flat WasherFlat Washer
-
3520000453 Snow Guard ReinforcementSnow Guard Reinforcement
-
4293150087 Pop Rivet 3/16'' (Black)Pop Rivet 3/16'' (Black)
-
5277000203 Grip Cap (Black)Grip Cap (Black)
-
6520000382 Rear Reflector (Red)Rear Reflector (Red)
-
7529035582 Wrench AdjusterWrench Adjuster
-
8520000126 Adjustment WrenchAdjustment Wrench
-
9520000322 TrunkTrunk
-
10570069700 LatchLatch
-
11529035596 Tool Kit. Includes items 11 to 12Tool Kit. Includes items 11 to 12
-
12520000047 Tool BagTool Bag
-
13516001336 Front ReflectorFront Reflector
-
14520000419 Fuel Tank Ass'YFuel Tank Ass'Y
-
15520000355 StopperStopper
-
16520000440 Strap Ass'Y. Includes items 16 to 24Strap Ass'Y. Includes items 16 to 24
-
17520000386 StrapStrap
-
18520000438 Vent CapVent Cap
-
19520000439 Filler neck CapFiller neck Cap
-
20293150102 Pop Rivet 3/16Pop Rivet 3/16
-
21517225900 Flat WasherFlat Washer
-
22414436900 Snap Cap (Black)Snap Cap (Black)
-
23414436800 Retainer CapRetainer Cap
-
24390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
25390402200 Rivet 3/16''Rivet 3/16''
-
26520000459 LH AttacheLH Attache
-
520000460 RH AttacheRH Attache
