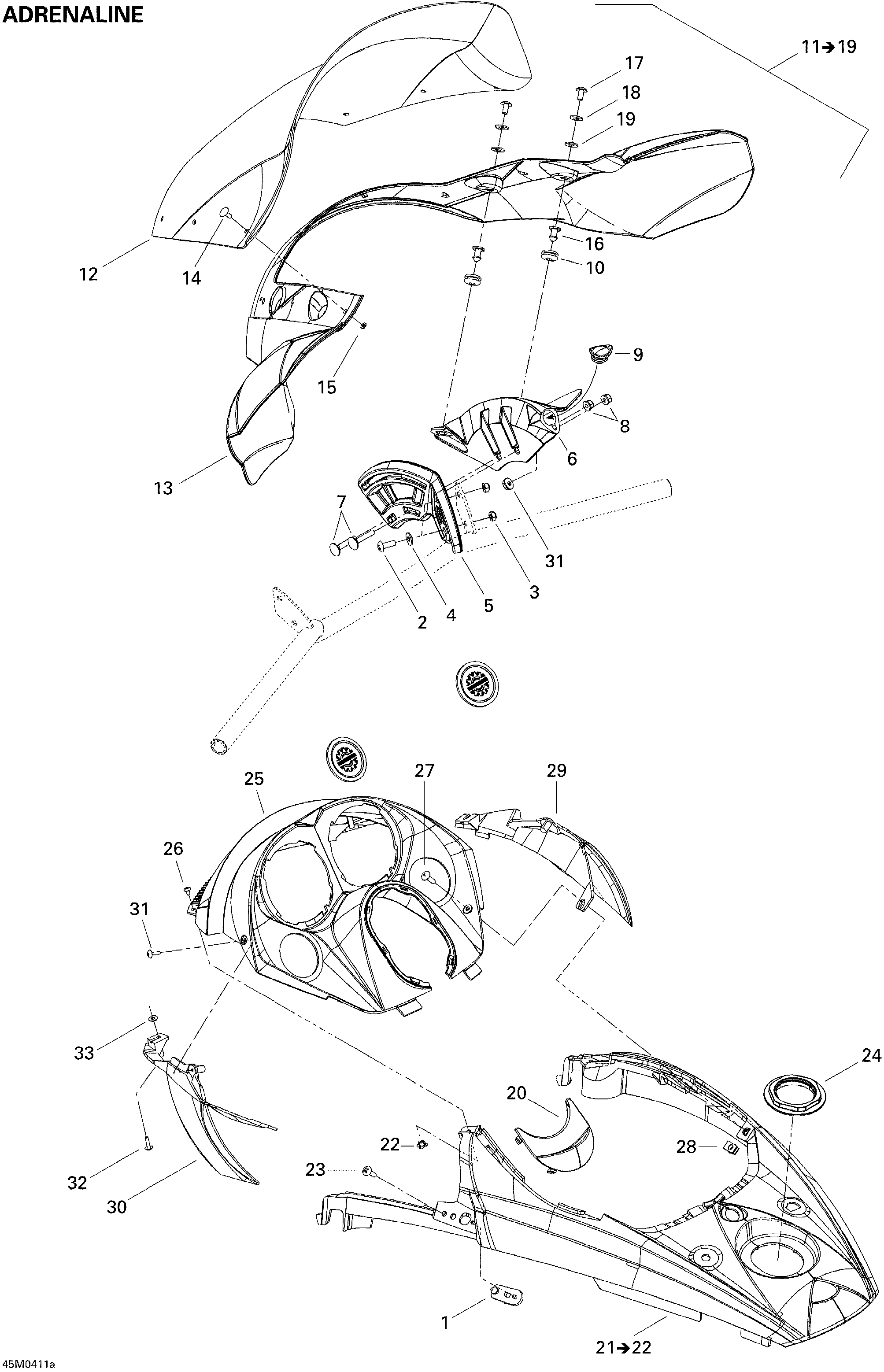

09- Windshield and console (Adrenaline) для BRP Ski-Doo MX Z 600 HO SDI - 2004
-
№АртикулНазвание
-
1517302616 Hood LatchHood Latch
-
2250000129 Torx Pan Head Screw M6 X 16. AdrenalineTorx Pan Head Screw M6 X 16. Adrenaline
-
3250000135 Hex Nut M6. AdrenalineHex Nut M6. Adrenaline
-
4517302736 Nylon Washer. AdrenalineNylon Washer. Adrenaline
-
5517303076 RH Fixing Plate. AdrenalineRH Fixing Plate. Adrenaline
-
517303078 LH Fixing Plate. AdrenalineLH Fixing Plate. Adrenaline
-
6517303077 RH Windshield Support. AdrenalineRH Windshield Support. Adrenaline
-
517303079 LH Windshield Support. AdrenalineLH Windshield Support. Adrenaline
-
7207763584 Carriage Bolt M6 X 35. AdrenalineCarriage Bolt M6 X 35. Adrenaline
-
8233261494 Elastic Flanged Nut M6. AdrenalineElastic Flanged Nut M6. Adrenaline
-
9517302806 Cap. AdrenalineCap. Adrenaline
-
10517302841 Grommet. AdrenalineGrommet. Adrenaline
-
11517303064 Windshield. Includes items 11 to 19 / AdrenalineWindshield. Includes items 11 to 19 / Adrenaline
-
12517302443 Windshield (Medium)Windshield (Medium)
-
13517302816 Air DeflectorAir Deflector
-
14517303070 Windshield DartWindshield Dart
-
15250100034 Push NutPush Nut
-
16517302719 KnobKnob
-
17250000145 Torx Screw M5 X 14Torx Screw M5 X 14
-
18250200025 Washer 5 mmWasher 5 mm
-
19250200024 Rubber Washer M5Rubber Washer M5
-
20517302592 Console CapConsole Cap
-
21517303066 Center Console. Includes items 21 to 22 / SDI Black (B-160)Center Console. Includes items 21 to 22 / SDI Black (B-160)
-
517303067 Center Console. Includes items 21 to 22 / SDI Yellow (B-190)Center Console. Includes items 21 to 22 / SDI Yellow (B-190)
-
517303069 Center Console. Includes items 21 to 22 / SDI Blue (B-225)Center Console. Includes items 21 to 22 / SDI Blue (B-225)
-
22250100030 '' T'' Flanged Nut M4'' T'' Flanged Nut M4
-
23250000128 Torx Pan Head Screw M6 X 20Torx Pan Head Screw M6 X 20
-
24517302575 Console NutConsole Nut
-
25517302796 Support. AdrenalineSupport. Adrenaline
-
26250000127 Torx Screw M4 X 8Torx Screw M4 X 8
-
27250000130 Torx Screw M5 X 20Torx Screw M5 X 20
-
28250000079 Nut M5Nut M5
-
29517302546 RH Air Deflector. AdrenalineRH Air Deflector. Adrenaline
-
30517302547 LH Air Deflector. AdrenalineLH Air Deflector. Adrenaline
-
31250000084 Phillips Screw K40 X 16Phillips Screw K40 X 16
-
32250000113 Screw M4 X 16Screw M4 X 16
-
33234042600 Flat Washer 4 mmFlat Washer 4 mm
