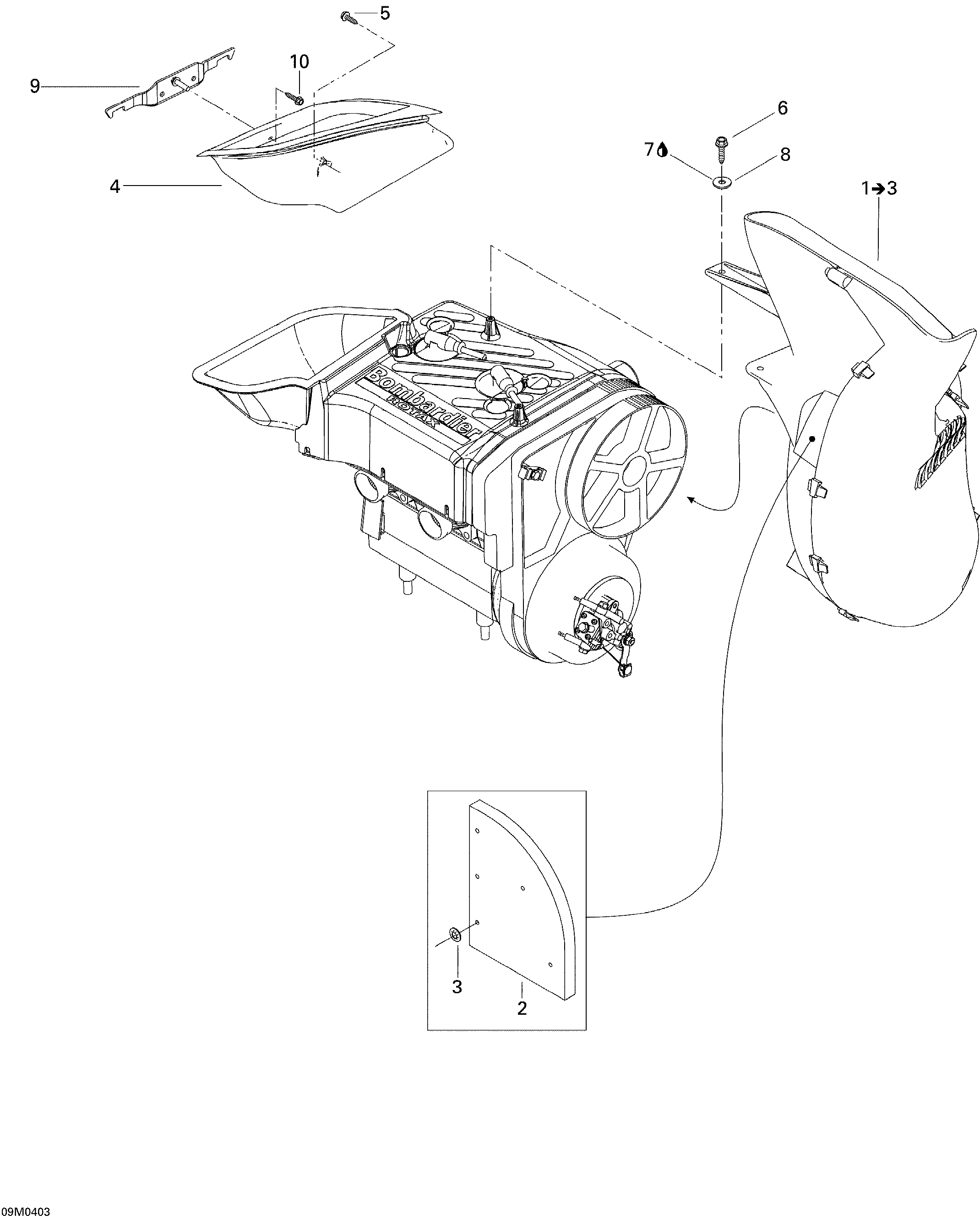

01- Cooling System SKANDIC (550F) для BRP Ski-Doo Skandic 550F - 2004
-
№АртикулНазвание
-
1509000218 Inlet Duct. INCLUDES 1 TO 3Inlet Duct. INCLUDES 1 TO 3
-
2509000152 FoamFoam
-
3389804300 Push NutPush Nut
-
4509000118 Outlet DuctOutlet Duct
-
5250000068 Hex Tapping Screw #8 X 5/82Hex Tapping Screw #8 X 5/82
-
6241151640 Hex Flanged Screw K50 X 16Hex Flanged Screw K50 X 16
-
7413408300 Glue Tube, Loctite 454, 20GGlue Tube, Loctite 454, 20G
-
8391301600 WasherWasher
-
9509000164 SupportSupport
-
10732601210 Hex Flanged Screw #8 X 3/8Hex Flanged Screw #8 X 3/8
