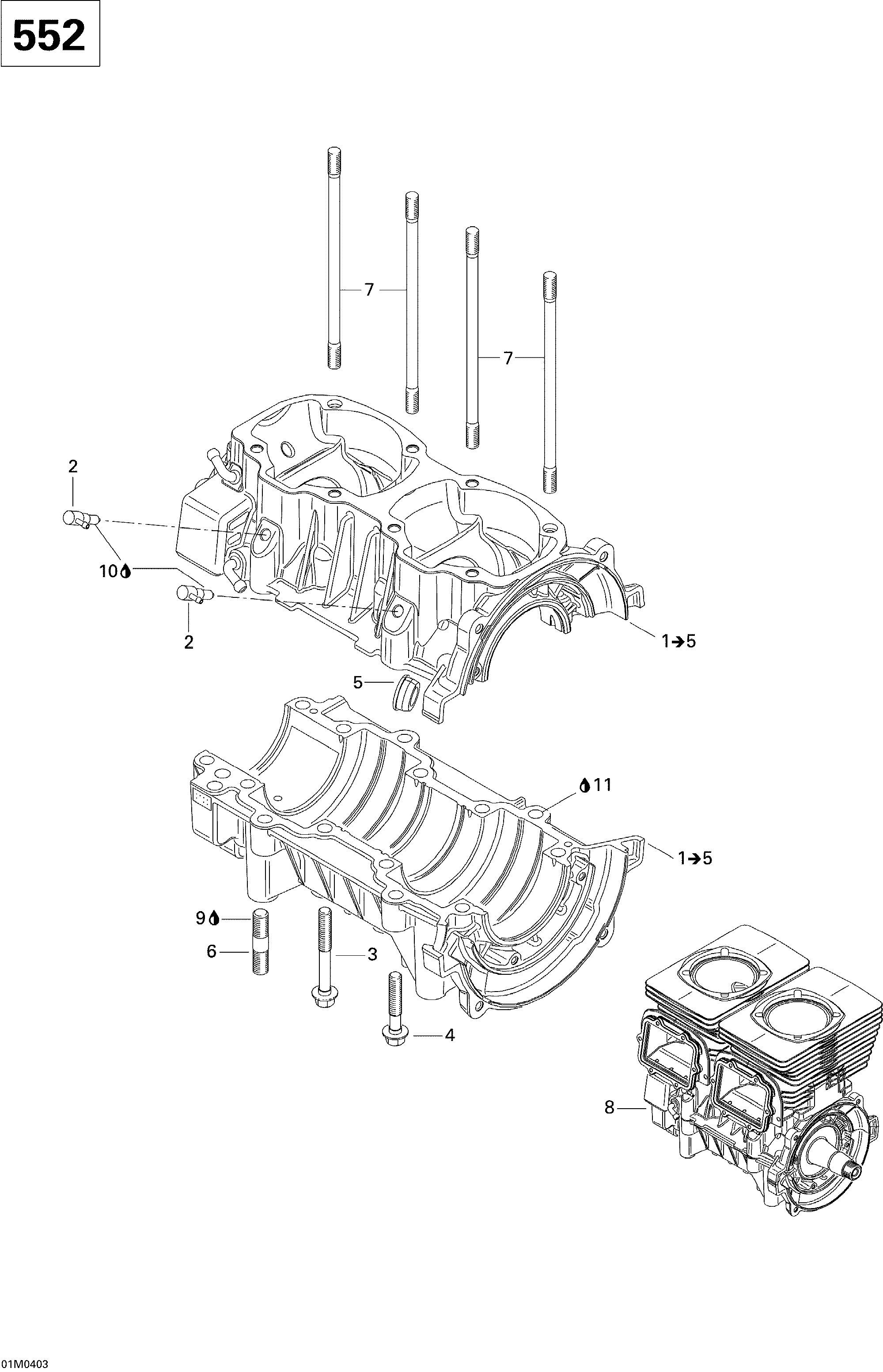

01- Crankcase SKANDIC (550F) для BRP Ski-Doo Skandic 550F - 2004
-
№АртикулНазвание
-
1420888498 Crankcase Ass'y. Includes Items 1 to 5Crankcase Ass'y. Includes Items 1 to 5
-
2420956510 Check ValveCheck Valve
-
3420640951 Hex. Screw M8 x 68.5Hex. Screw M8 x 68.5
-
4420640431 Hex. Screw M8 x 45Hex. Screw M8 x 45
-
5420860962 Cable GrommetCable Grommet
-
6420941644 Stud M10 x 23Stud M10 x 23
-
7420840556 Stud Screw M8 x 173.5Stud Screw M8 x 173.5
-
8420055202 Short Block Ass'yShort Block Ass'y
-
9293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
10413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
11420297906 Sealing Compound, 30 mlSealing Compound, 30 ml
