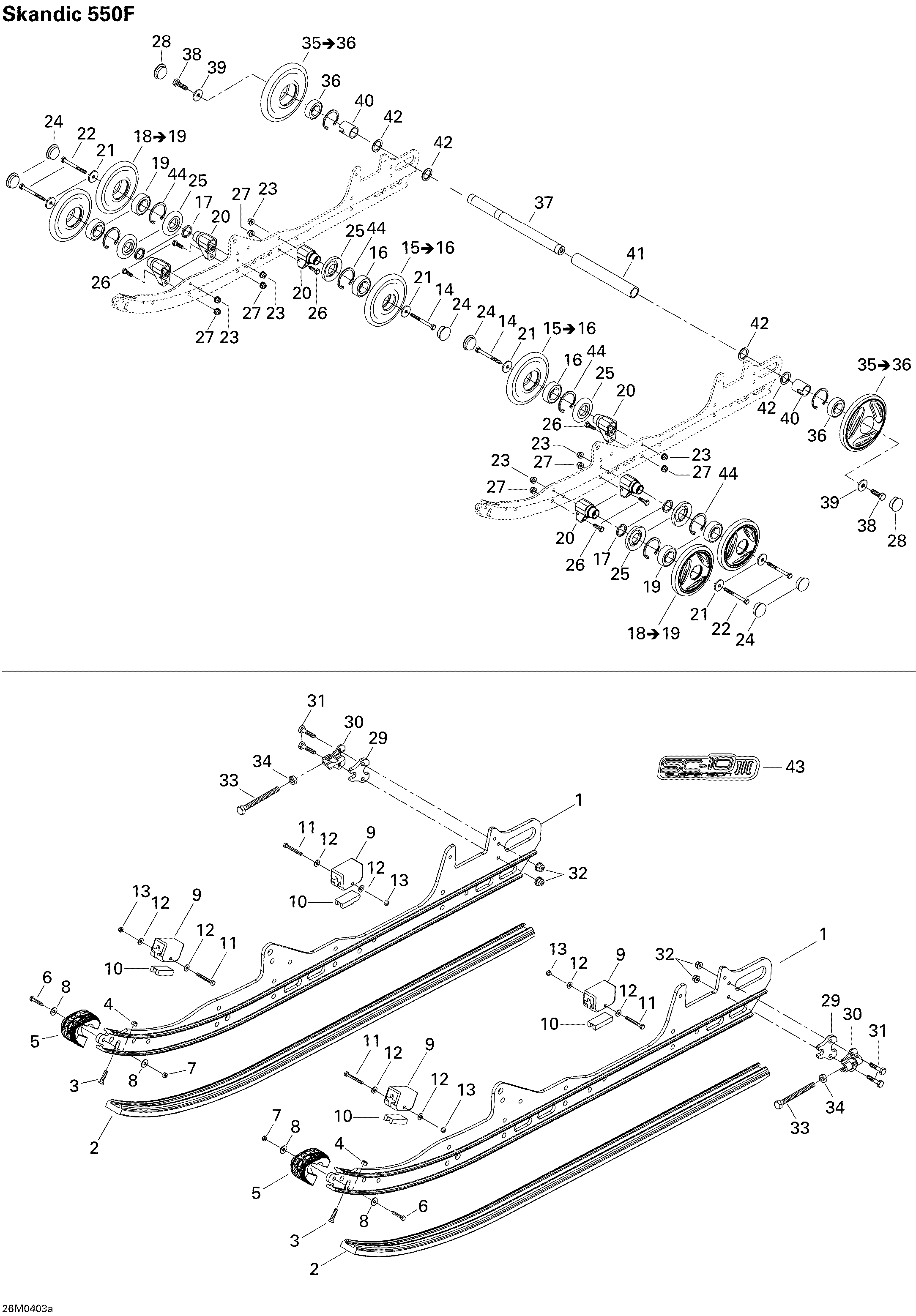

08- Rear Suspension SKANDIC 550F для BRP Ski-Doo Skandic 550F - 2004
-
№АртикулНазвание
-
1503190115 RunnerRunner
-
2503189639 ShoeShoe
-
3208562560 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
4232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
5572075400 Runner ProtectorRunner Protector
-
6207152544 Hex Screw M5 X 25Hex Screw M5 X 25
-
7232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
8391301600 WasherWasher
-
9570063000 Rubber StopperRubber Stopper
-
10572084800 Stopper ReinforcementStopper Reinforcement
-
11207054044 Hex Screw M5 X 40Hex Screw M5 X 40
-
12391301700 WasherWasher
-
13232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
14207088044 Hex Screw M8 X 80Hex Screw M8 X 80
-
15503190213 Wheel 139. INCLUDES 15 TO 16Wheel 139. INCLUDES 15 TO 16
-
16503189567 Ball Bearing 6205Ball Bearing 6205
-
17503173700 WasherWasher
-
18503190212 Wheel 139 (Yellow). INCLUDES 18 TO 19Wheel 139 (Yellow). INCLUDES 18 TO 19
-
19503189567 Ball Bearing 6205Ball Bearing 6205
-
20503190389 SupportSupport
-
21503183100 WasherWasher
-
22207088544 Hex Screw M8 X 85Hex Screw M8 X 85
-
23233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
24570063600 Wheel CapWheel Cap
-
25572089000 Labyrinth SealLabyrinth Seal
-
26207182544 Hex Screw M8 X 25Hex Screw M8 X 25
-
27233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
28570063600 Wheel CapWheel Cap
-
29503189160 Tensioner SpacerTensioner Spacer
-
30503155300 TensionerTensioner
-
31207063044 Hex Screw M6 X 30Hex Screw M6 X 30
-
32233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
33230100044 Hex Screw M10 X 100Hex Screw M10 X 100
-
34233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
35503189566 Wheel 165 Ass'Y. INCLUDES 35 TO 36Wheel 165 Ass'Y. INCLUDES 35 TO 36
-
36503189567 Ball Bearing 6205Ball Bearing 6205
-
37503162400 Rear AxleRear Axle
-
38250000019 Hex Screw With NylonHex Screw With Nylon
-
39503183300 WasherWasher
-
40503189809 Outer SpacerOuter Spacer
-
41503188941 Spacer (Long)Spacer (Long)
-
42503180400 WasherWasher
-
43516001248 Suspension DecalSuspension Decal
-
44371901700 Circlip (Interior)Circlip (Interior)
