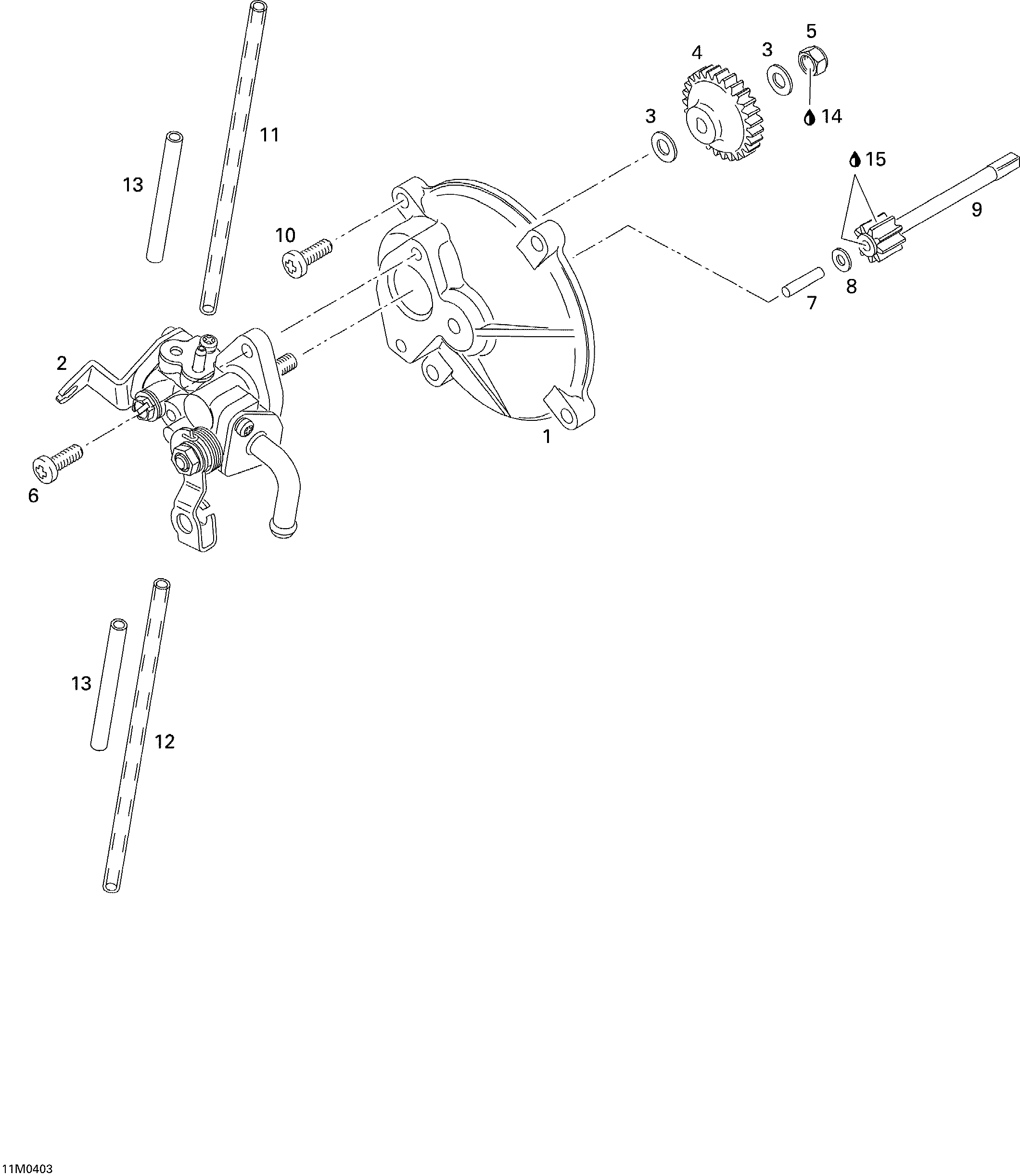

02- Oil Injection System SKANDIC 550F для BRP Ski-Doo Skandic 550F - 2004
-
№АртикулНазвание
-
1420910160 Pump Mounting FlangePump Mounting Flange
-
2420889070 Oil Pump Ass'yOil Pump Ass'y
-
3420927945 Flat WasherFlat Washer
-
4420935930 Oil Pump Gear (27 Teeth)Oil Pump Gear (27 Teeth)
-
5232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
6420841971 Screw M5.5 x 16 (Plastite)Screw M5.5 x 16 (Plastite)
-
7420832260 Needle PinNeedle Pin
-
8420244073 Washer 4.3 mmWasher 4.3 mm
-
9420935970 Gear (9 Teeth)Gear (9 Teeth)
-
10420841976 Screw M5.5 x 16 (Plastite)Screw M5.5 x 16 (Plastite)
-
11414413800 Oil Line (210 mm)Oil Line (210 mm)
-
12420960729 Isolation Hose (150 mm)Isolation Hose (150 mm)
-
13420660495 Isolation Line (120 mm)Isolation Line (120 mm)
-
14293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
15413707000 Molykote 111Molykote 111
