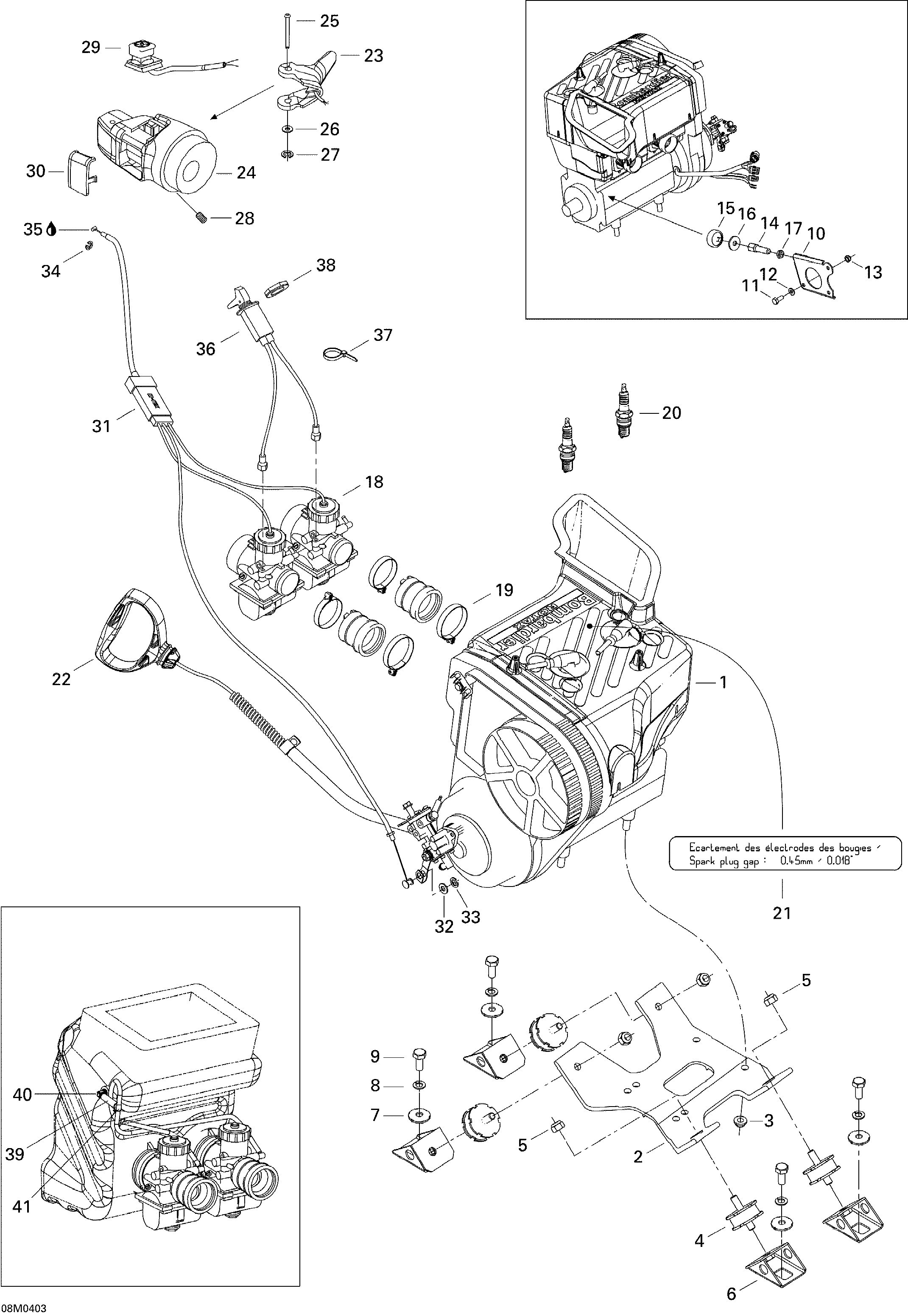

01- Engine System, SKANDIC 550F для BRP Ski-Doo Skandic 550F - 2004
-
№АртикулНазвание
-
1400509745 Engine 552Engine 552
-
2512059397 Engine SupportEngine Support
-
3233201414 Elastic Flanged Stop Nut M10Elastic Flanged Stop Nut M10
-
4570128700 Rubber MountRubber Mount
-
5233201414 Elastic Flanged Stop Nut M10Elastic Flanged Stop Nut M10
-
6512050900 Engine SupportEngine Support
-
7512056700 Lock WasherLock Washer
-
8234100602 Lock Spring Washer 10 mmLock Spring Washer 10 mm
-
9207102544 Hex Screw M10 X 25Hex Screw M10 X 25
-
10512059446 Welded PlateWelded Plate
-
11207182044 Hex Screw M8 X 20Hex Screw M8 X 20
-
12234081410 Flat Washer 8 mmFlat Washer 8 mm
-
13232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
14512058800 Stopper ScrewStopper Screw
-
15512059056 StopperStopper
-
16512059057 WasherWasher
-
17732610019 RH Hex Jam Nut M12RH Hex Jam Nut M12
-
18403138727 Carburator Vm-34Carburator Vm-34
-
19512059834 Gemi ClampGemi Clamp
-
20414961100 Spark Plug (NGK Br9Es)Spark Plug (NGK Br9Es)
-
21516000986 Spark Plug DecalSpark Plug Decal
-
22572084400 Starter GripStarter Grip
-
23512059623 Heat Throttle Handle 34 mmHeat Throttle Handle 34 mm
-
24512059489 Throttle HousingThrottle Housing
-
25414438700 Lever PinLever Pin
-
26234051600 Flat Washer M5Flat Washer M5
-
27414439000 CirclipCirclip
-
28414440800 Set Screw M8 X 10Set Screw M8 X 10
-
29515175410 Kill SwitchKill Switch
-
30572100901 Switch CoverSwitch Cover
-
31512059625 Throttle CableThrottle Cable
-
32234081100 Flat Washer 8 mmFlat Washer 8 mm
-
33414753500 CirclipCirclip
-
34414274500 CirclipCirclip
-
35293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
36512059441 Choke CableChoke Cable
-
37293750009 Tie Rap 160 mmTie Rap 160 mm
-
38512059094 Plastic NutPlastic Nut
-
39415080200 LineLine
-
40414580600 Elbow Male ConnectorElbow Male Connector
-
41572045500 T-ConnectorT-Connector
