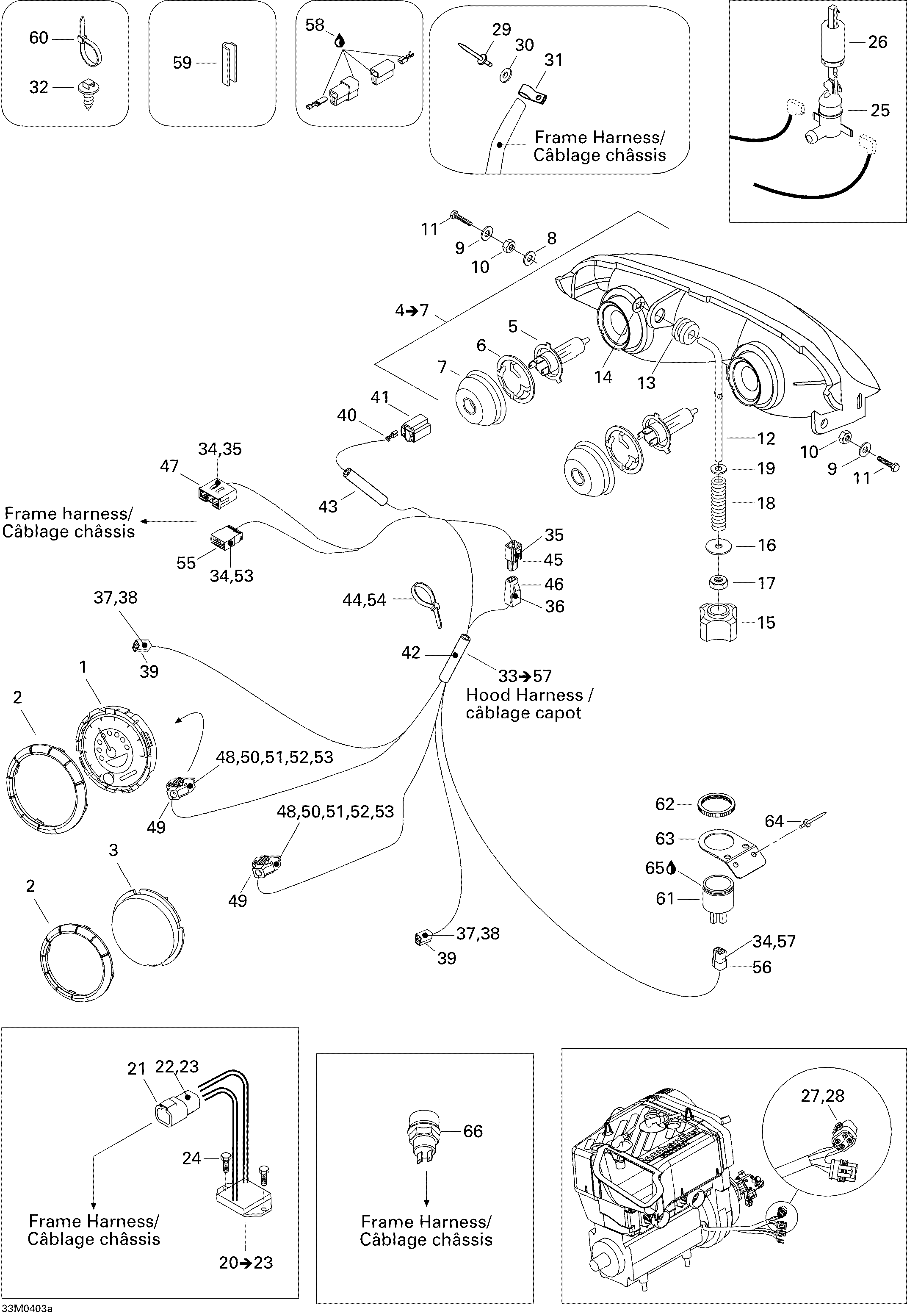

10- Electrical System 1 (SKANDIC 550F) для BRP Ski-Doo Skandic 550F - 2004
-
№АртикулНазвание
-
1515175999 SpeedometerSpeedometer
-
2515175651 Gauge RingGauge Ring
-
3515175901 Bottom RingBottom Ring
-
4515175909 Halogen Headlamp. INCLUDES 4 TO 7Halogen Headlamp. INCLUDES 4 TO 7
-
5410504401 Halogen Bulb (60/55 W, 12 V)Halogen Bulb (60/55 W, 12 V)
-
6515175910 Bulb HolderBulb Holder
-
7515175911 CoverCover
-
8234001410 Flat Washer 10 mmFlat Washer 10 mm
-
9234051410 Flat WasherFlat Washer
-
10250100018 Well-Nut M5Well-Nut M5
-
11207053544 Hex Screw M5 X 35Hex Screw M5 X 35
-
12517295800 Adjuster RodAdjuster Rod
-
13415100800 GrommetGrommet
-
14732610072 Push NutPush Nut
-
15515175548 HandleHandle
-
16224060251 WasherWasher
-
17232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
18415100600 SpringSpring
-
19234061410 Flat WasherFlat Washer
-
20515175655 Voltage Regulator. INCLUDES 20 TO 23Voltage Regulator. INCLUDES 20 TO 23
-
21278001477 Male Terminal Housing (4 Circuits)Male Terminal Housing (4 Circuits)
-
22515175568 Male TerminalMale Terminal
-
23278001478 (Female) Secondary Lock (4 Circuits) (Deutsch)(Female) Secondary Lock (4 Circuits) (Deutsch)
-
24210261680 Hex Screw M6 X 16Hex Screw M6 X 16
-
25414681800 Level SwitchLevel Switch
-
26414681900 FloatFloat
-
27278001473 Female Terminal Housing (4 Circuits)Female Terminal Housing (4 Circuits)
-
28278001474 Female Lock (4 Circuits)Female Lock (4 Circuits)
-
29390402200 Rivet 3/16''Rivet 3/16''
-
30517225900 Flat WasherFlat Washer
-
31415018200 ClipClip
-
32293730018 Dart MountDart Mount
-
33515175984 Cab Wiring Harness. INCLUDES 33 TO 57Cab Wiring Harness. INCLUDES 33 TO 57
-
34515175232 Male TerminalMale Terminal
-
35515175273 Male TerminalMale Terminal
-
36515175282 Female TerminalFemale Terminal
-
37561503100 Female TerminalFemale Terminal
-
38561503100 Female TerminalFemale Terminal
-
39409204300 Female Terminal Housing (3 Circuits)Female Terminal Housing (3 Circuits)
-
40515175321 Female TerminalFemale Terminal
-
41409202700 Female Terminal Housing (3 Circuits)Female Terminal Housing (3 Circuits)
-
42415080000 Tubing (16 mm)Tubing (16 mm)
-
43415079900 Tubing (10 mm)Tubing (10 mm)
-
44293750001 Tie Rap 94 mmTie Rap 94 mm
-
45515175509 Male Terminal Housing (1 Circuit)Male Terminal Housing (1 Circuit)
-
46515175510 Female Terminal Housing (1 Circuit)Female Terminal Housing (1 Circuit)
-
47515175720 Male Terminal HousingMale Terminal Housing
-
48515175812 PlugPlug
-
49515175801 Female Terminal Housing (24 Circuits)Female Terminal Housing (24 Circuits)
-
50515175802 RetainerRetainer
-
51515175803 SealSeal
-
52515175804 HousingHousing
-
53515175806 Female TerminalFemale Terminal
-
54414115200 Tie Rap 180 mmTie Rap 180 mm
-
55415128526 Male Terminal Housing (10 Circuit)Male Terminal Housing (10 Circuit)
-
56515176069 Male Terminal Housing (3 Circuits)Male Terminal Housing (3 Circuits)
-
57515176071 Female TerminalFemale Terminal
-
58293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
59271000110 TrimTrim
-
60414115200 Tie Rap 180 mmTie Rap 180 mm
-
293750001 Tie Rap 94 mmTie Rap 94 mm
-
293750009 Tie Rap 160 mmTie Rap 160 mm
-
61515176035 HornHorn
-
62414805101 Plastic NutPlastic Nut
-
63515175688 Painted PlatePainted Plate
-
64390402200 Rivet 3/16''Rivet 3/16''
-
65296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
66415101200 Reverse KnobReverse Knob
