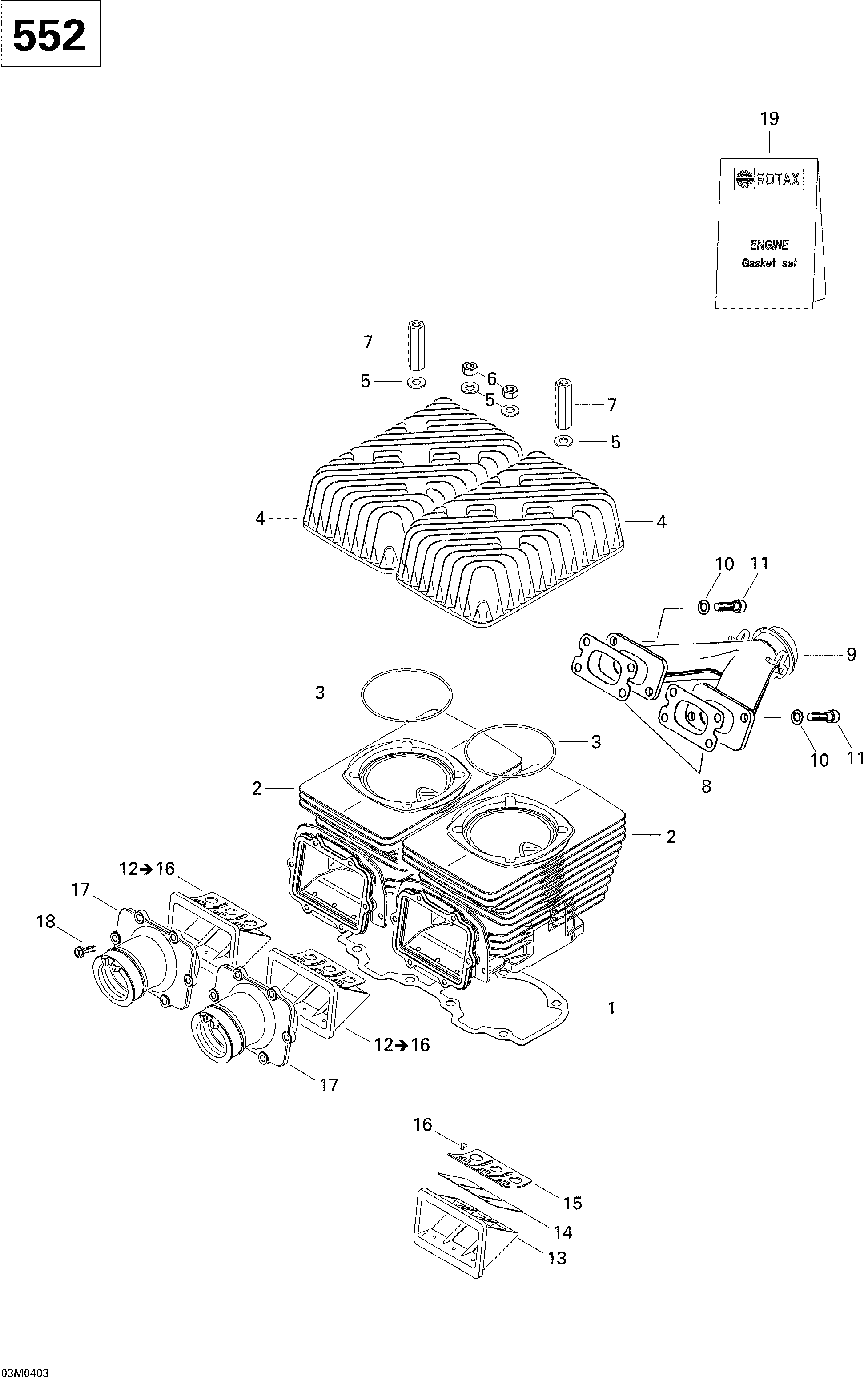

01- Cylinder, Exhaust Manifold для BRP Ski-Doo Skandic 550F - 2004
-
№АртикулНазвание
-
1420950910 Gasket 0.3 mmGasket 0.3 mm
-
1420950911 Gasket 0.4 mmGasket 0.4 mm
-
1420950912 Gasket 0.6 mmGasket 0.6 mm
-
2420923975 Cylinder With SleeveCylinder With Sleeve
-
3293300026 O-RingO-Ring
-
4420923595 Cylinder HeadCylinder Head
-
5420250311 Washer 8.4 mmWasher 8.4 mm
-
6232081414 Hex. Nut M8Hex. Nut M8
-
7420842203 Distance Nut M8Distance Nut M8
-
8420831849 Gasket 1 mmGasket 1 mm
-
9420673065 Exhaust ManifoldExhaust Manifold
-
10420945752 Lock Washer 8 mmLock Washer 8 mm
-
11205083044 Socket Head Screw M8 x 30Socket Head Screw M8 x 30
-
12420924519 Reed Valve Ass'y. Includes Items 12 to 16Reed Valve Ass'y. Includes Items 12 to 16
-
14420924532 Reed PedalReed Pedal
-
15420924539 Reed Pedal StopReed Pedal Stop
-
16420941215 Oval Head Screw M3 x 25Oval Head Screw M3 x 25
-
17420867100 Carburetor SocketCarburetor Socket
-
18420941925 Tapping Screw M5 x 16Tapping Screw M5 x 16
-
19420889910 Gasket SetGasket Set
