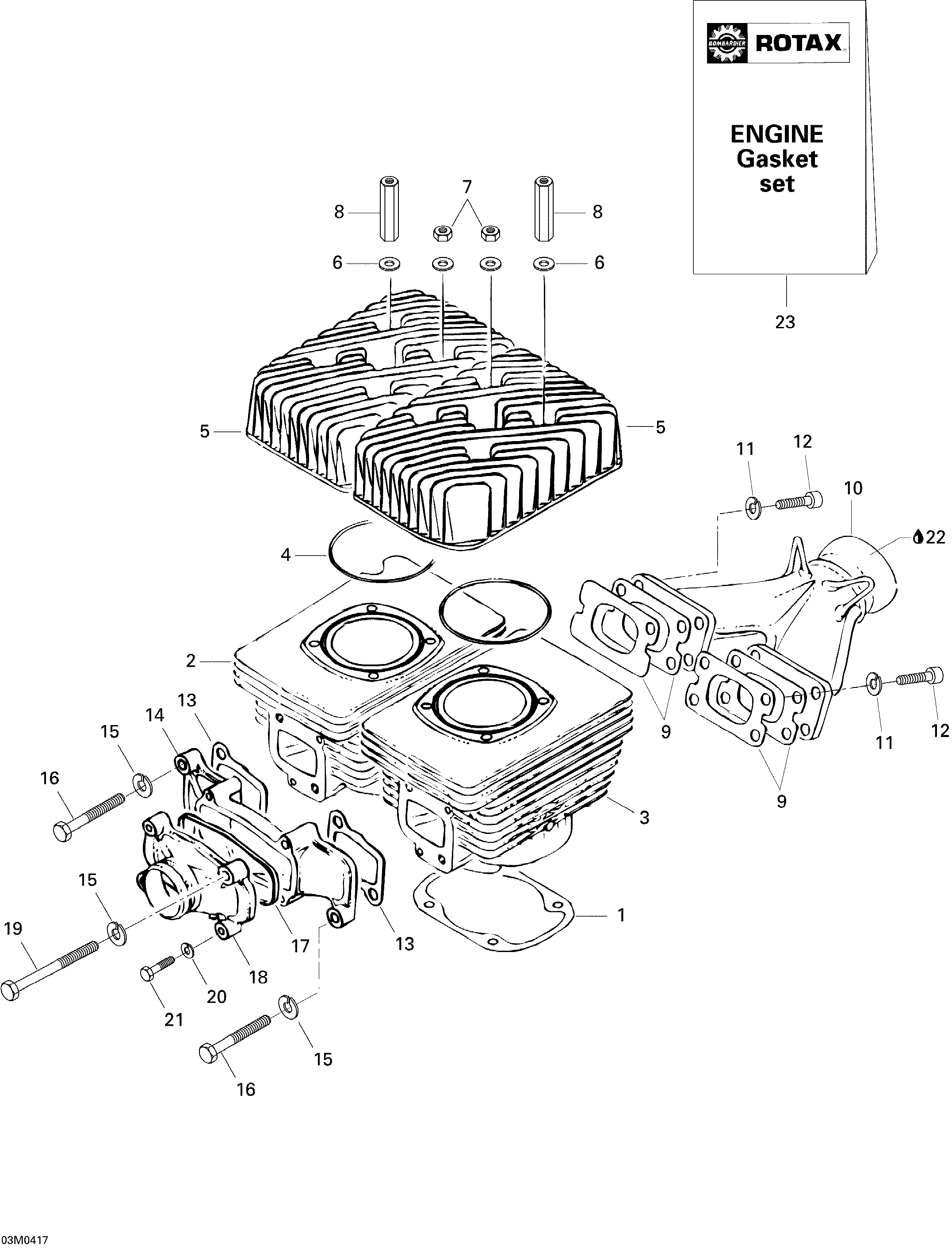

01- Cylinder, Exhaust Manifold для BRP Ski-Doo Skandic LT 440F - 2004
-
№АртикулНазвание
-
1420931780 Gasket 0,3Gasket 0,3
-
1420931781 Gasket 0,4Gasket 0,4
-
1420931782 Gasket 0,6Gasket 0,6
-
2420923790 PTO Side CylinderPTO Side Cylinder
-
3420923795 Mag Side CylinderMag Side Cylinder
-
4420931380 O'RingO'Ring
-
5420923377 Cylinder HeadCylinder Head
-
6234081410 Flat Washer 8 mmFlat Washer 8 mm
-
7232081414 Nut M8Nut M8
-
8420842208 Distance Nut M8 X 51Distance Nut M8 X 51
-
9420850114 GasketGasket
-
10420879459 Exhaust ManifoldExhaust Manifold
-
11234181401 Lock Washer 8 mmLock Washer 8 mm
-
12M40135 Socket Head Screw M8 X 30Socket Head Screw M8 X 30
-
13420831867 Intake Gasket 1.0 mmIntake Gasket 1.0 mm
-
14420867435 Intake ManifoldIntake Manifold
-
15234181401 Lock Washer 8 mmLock Washer 8 mm
-
16207083544 Hex Screw M8 X 35Hex Screw M8 X 35
-
17420850190 Rubber RingRubber Ring
-
18420867442 Intake Cover-IntakeIntake Cover-Intake
-
19420841201 Hex Screw M8 X 70Hex Screw M8 X 70
-
20420945751 Lock Washer 6 mmLock Washer 6 mm
-
21207162544 Hex Screw M6 X 25Hex Screw M6 X 25
-
22293800090 Sealant, Loctite 30542, 80 mlSealant, Loctite 30542, 80 ml
-
23420994232 Gasket KitGasket Kit
