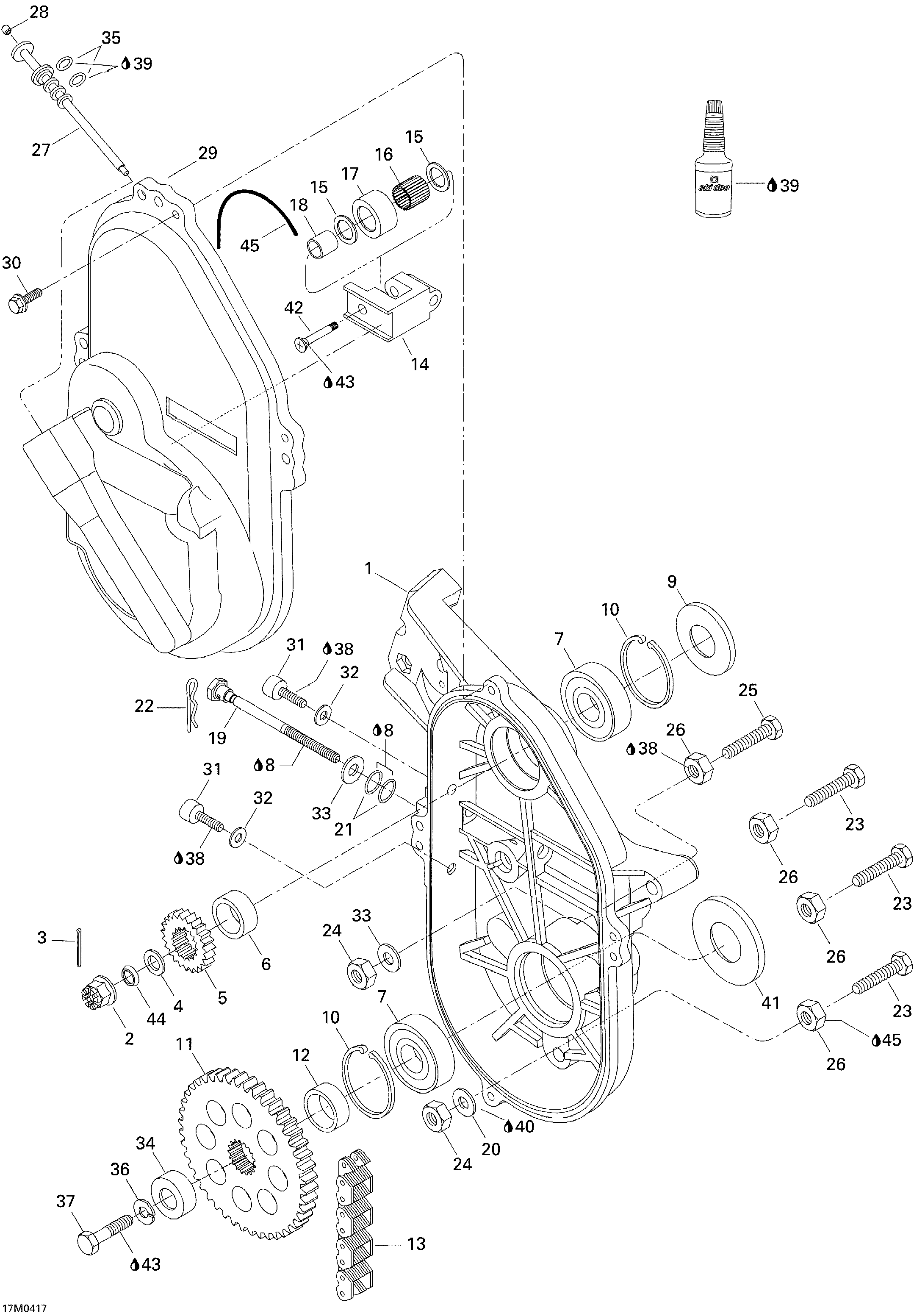

05- Chaincase для BRP Ski-Doo Skandic LT 440F - 2004
-
№АртикулНазвание
-
1504144600 Machined ChaincaseMachined Chaincase
-
2232210414 Hex Castellated Nut M16Hex Castellated Nut M16
-
3371801300 Cotter PinCotter Pin
-
4504152049 SpacerSpacer
-
5504071800 Sprocket 17 ThSprocket 17 Th
-
6504093400 ShimShim
-
7504152006 Ball BearingBall Bearing
-
8219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
9414882800 Oil SealOil Seal
-
10371901700 Circlip (Interior)Circlip (Interior)
-
11504070900 Sprocket 44ThSprocket 44Th
-
12504146400 SpacerSpacer
-
13504151882 Driving Chain 70 MDriving Chain 70 M
-
14504081000 Machined TensionerMachined Tensioner
-
15504080300 WasherWasher
-
16M31050 Needle BearingNeedle Bearing
-
17414531300 RollerRoller
-
18504080200 SpacerSpacer
-
19732601311 Adjusting ScrewAdjusting Screw
-
20M20073 WasherWasher
-
21414484400 O-RingO-Ring
-
22414575600 Hair PinHair Pin
-
23M40201 ScrewScrew
-
24233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
25M40043 ScrewScrew
-
26504083800 SpacerSpacer
-
27572092700 Filler Cap Ass'Y. includes Items 27 to 28Filler Cap Ass'Y. includes Items 27 to 28
-
28206540490 Set Screw M4Set Screw M4
-
29080037100 Casting CoverCasting Cover
-
30M40340 Hex Forming ScrewHex Forming Screw
-
31M40859 Socket Head ScrewSocket Head Screw
-
32M20022 WasherWasher
-
33234001410 Flat Washer 10 mmFlat Washer 10 mm
-
34501026200 CapCap
-
35M28402 JOINT TORIQUE *O RINGJOINT TORIQUE *O RING
-
36M20068 Lock WasherLock Washer
-
37207102544 Hex Screw M10 X 25Hex Screw M10 X 25
-
38293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
39413803300 Synthetic Chaincase Oil, 12 x 355 mlSynthetic Chaincase Oil, 12 x 355 ml
-
40413702700 Loctite 515, 50 mlLoctite 515, 50 ml
-
41504152076 Seal Oil Ass'YSeal Oil Ass'Y
-
42732601144 ScrewScrew
-
43293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
44417000900 Spring WasherSpring Washer
-
45414362300 O-RingO-Ring
