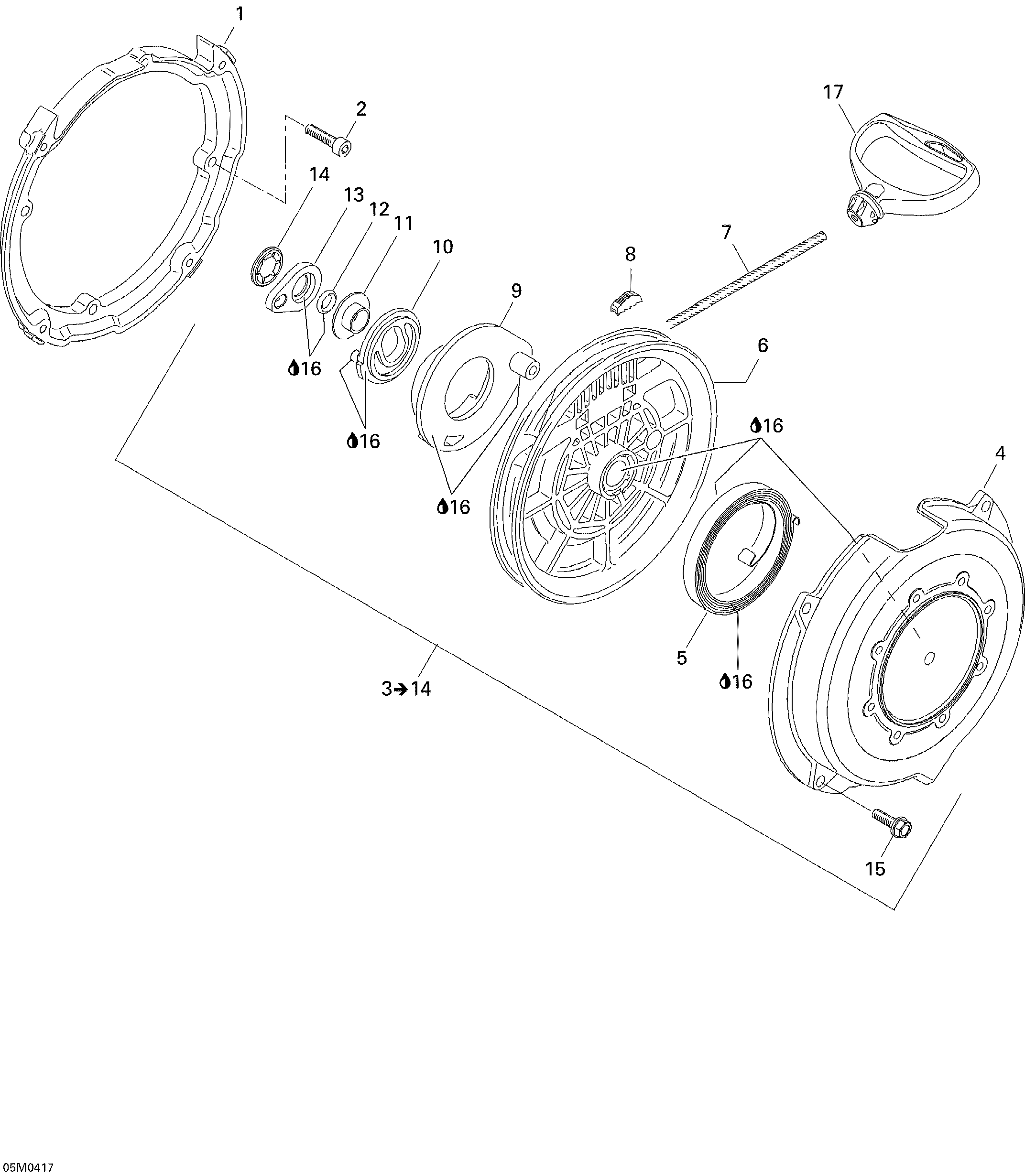

04- Rewind Starter для BRP Ski-Doo Skandic LT 440F - 2004
-
№АртикулНазвание
-
1420810952 Flange ConnectorFlange Connector
-
2420840401 Socket Head Screw M6 X 22Socket Head Screw M6 X 22
-
3420888219 Rewind Starter Assy. Includes Items 3 to 14Rewind Starter Assy. Includes Items 3 to 14
-
4420811346 Starter HousingStarter Housing
-
5420939115 Rewind SpringRewind Spring
-
6420852480 Rope SheaveRope Sheave
-
7412500200 Starter RopeStarter Rope
-
8420852070 Key ClampKey Clamp
-
9420852296 PawlPawl
-
10420852305 Pawl LockPawl Lock
-
11420847925 Stage SleeveStage Sleeve
-
12420250400 O-RingO-Ring
-
13420852520 Lock RingLock Ring
-
14420845560 Locking ElementLocking Element
-
15420941250 Screw M6 X 20Screw M6 X 20
-
16293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
17572084400 Starter GripStarter Grip
