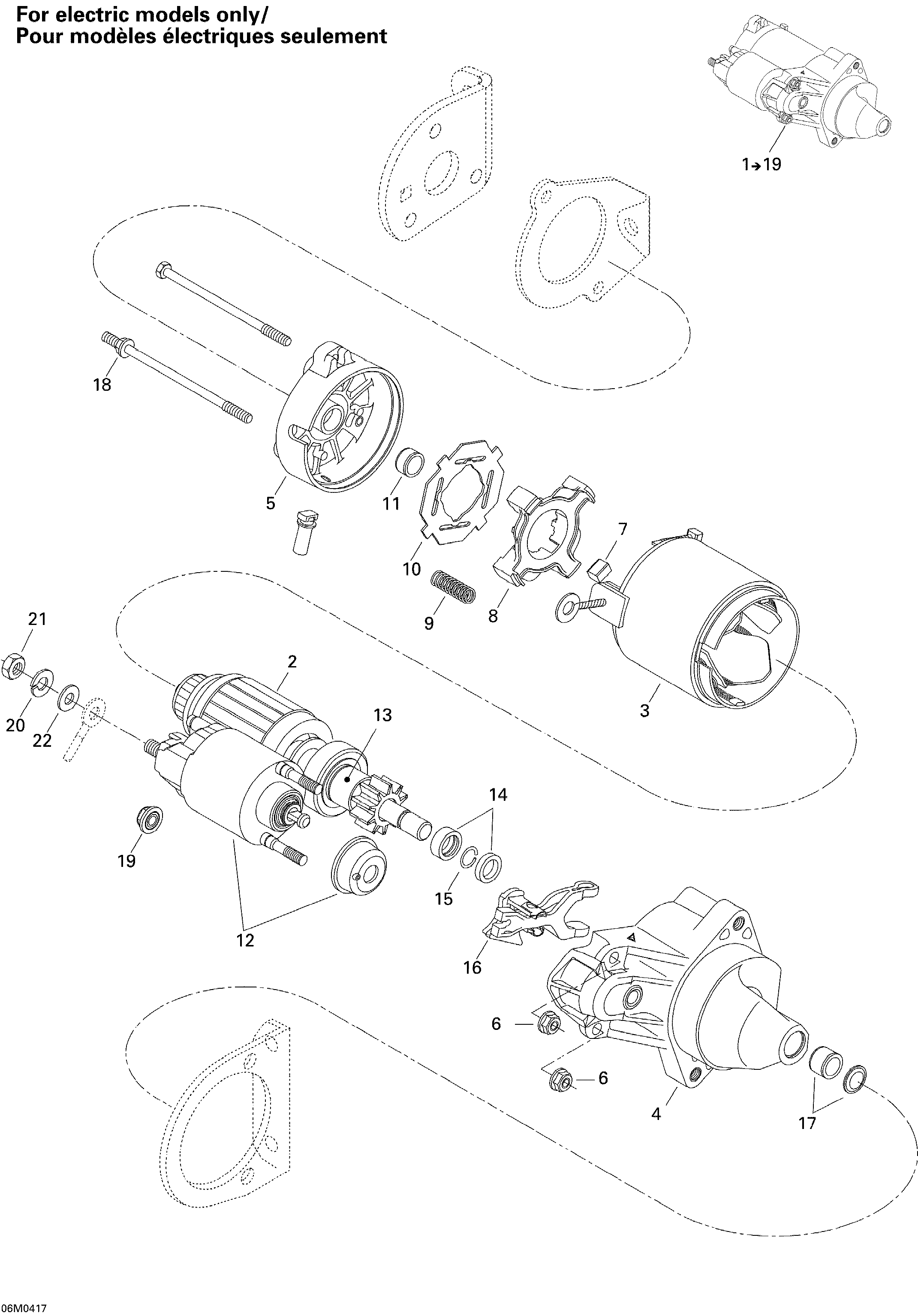

04- Electric Starter для BRP Ski-Doo Skandic LT 440F - 2004
-
№АртикулНазвание
-
1410212400 Electric Starter Ass'Y. Includes Items 1 to 19Electric Starter Ass'Y. Includes Items 1 to 19
-
2410210200 Armature Assy.Armature Assy.
-
3410209500 Housing StarterHousing Starter
-
4410210800 HousingHousing
-
6410211200 NutNut
-
7410209600 BrushBrush
-
8410209700 Brush HolderBrush Holder
-
9410209800 Brush SpringBrush Spring
-
10410209900 InsulatorInsulator
-
11410210100 Bushing-Brass BushingBushing-Brass Bushing
-
12410210300 Switch Assy.Switch Assy.
-
13410210400 Starter ClutchStarter Clutch
-
14410212500 NutNut
-
15410212600 CirclipCirclip
-
16410210700 LeverLever
-
17410210900 Brass BushingBrass Bushing
-
18410212000 BoltBolt
-
19410211100 NutNut
-
20234181401 Lock Washer 8 mmLock Washer 8 mm
-
21M33003 NutNut
-
22234081410 Flat Washer 8 mmFlat Washer 8 mm
