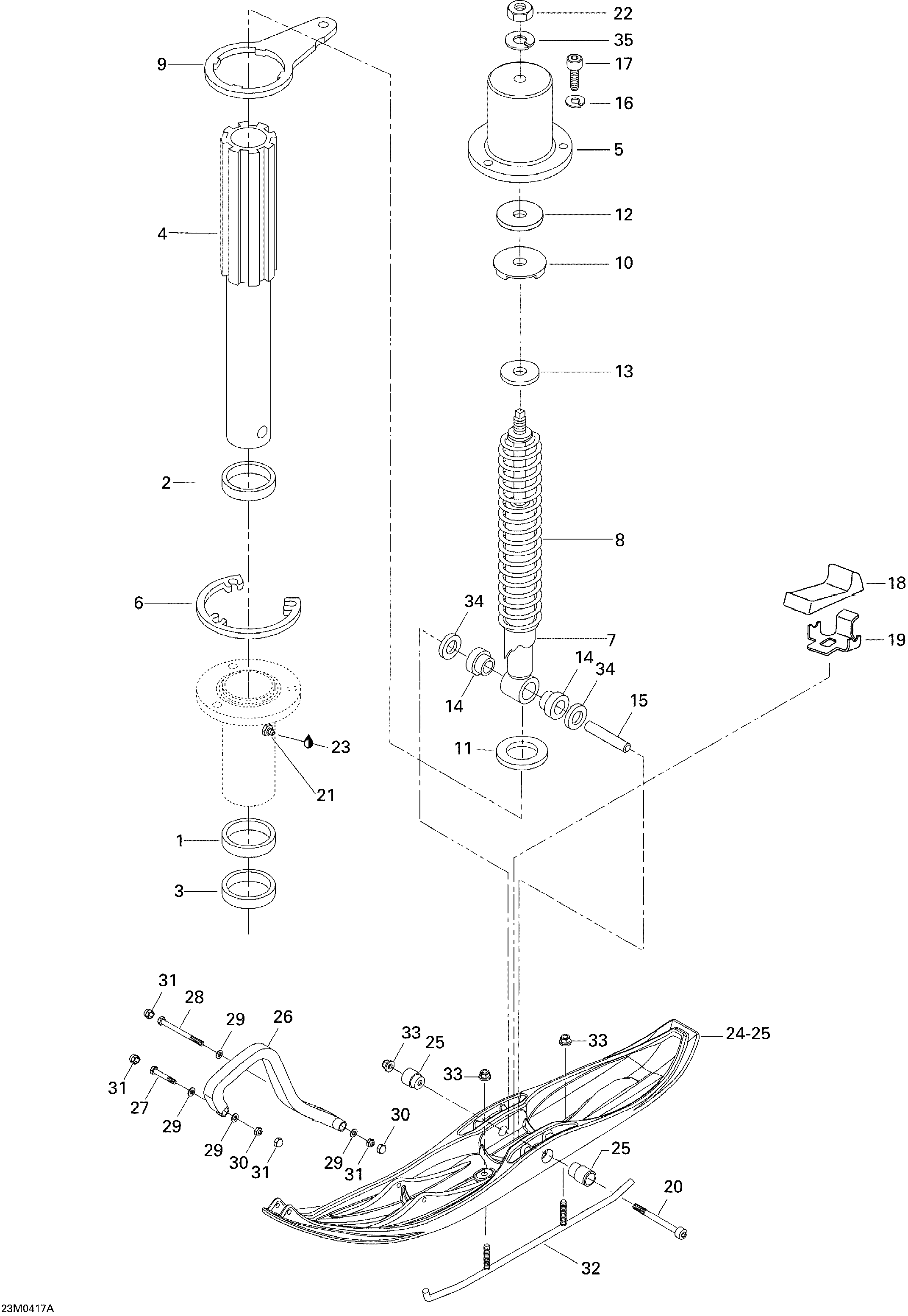

07- Front Suspension для BRP Ski-Doo Skandic LT 440F - 2004
-
№АртикулНазвание
-
1414803200 Lower CushionLower Cushion
-
2414803100 Upper CushionUpper Cushion
-
3M316373 Oil SealOil Seal
-
4M5243952 Ski LegSki Leg
-
5605249285 Welded CoverWelded Cover
-
6503145600 SpacerSpacer
-
7414803600a ShockShock
-
8M5240897 SpringSpring
-
9M5340383 Steeering ArmSteeering Arm
-
10570025800 StopperStopper
-
11M549493 WasherWasher
-
12M5440399 WasherWasher
-
13M549492 PlatePlate
-
14572034500 CushionCushion
-
15605348921 SpacerSpacer
-
16234181401 Lock Washer 8 mmLock Washer 8 mm
-
17205082044 Socket Head Screw M8 X 20Socket Head Screw M8 X 20
-
18605348439 Rubber StopperRubber Stopper
-
19605348437 Plate SupportPlate Support
-
20M40225 Hex Screw M10 X 140Hex Screw M10 X 140
-
21M34019 Grease FittingGrease Fitting
-
22233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
23219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
24605148440 Ski Plastic Ski. Includes Items 24 to 25Ski Plastic Ski. Includes Items 24 to 25
-
25605348392 BushingBushing
-
26505070963 Handle (Black)Handle (Black)
-
27207085044 Hex Screw M8 X 50Hex Screw M8 X 50
-
28M40264 Hex Screw M8 X 90Hex Screw M8 X 90
-
29234081410 Flat Washer 8 mmFlat Washer 8 mm
-
30232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
31M28056 CapCap
-
32605349311 Carbide RunnerCarbide Runner
-
33M33074 NutNut
-
34605448594 BushingBushing
-
35234001410 Flat Washer 10 mmFlat Washer 10 mm
