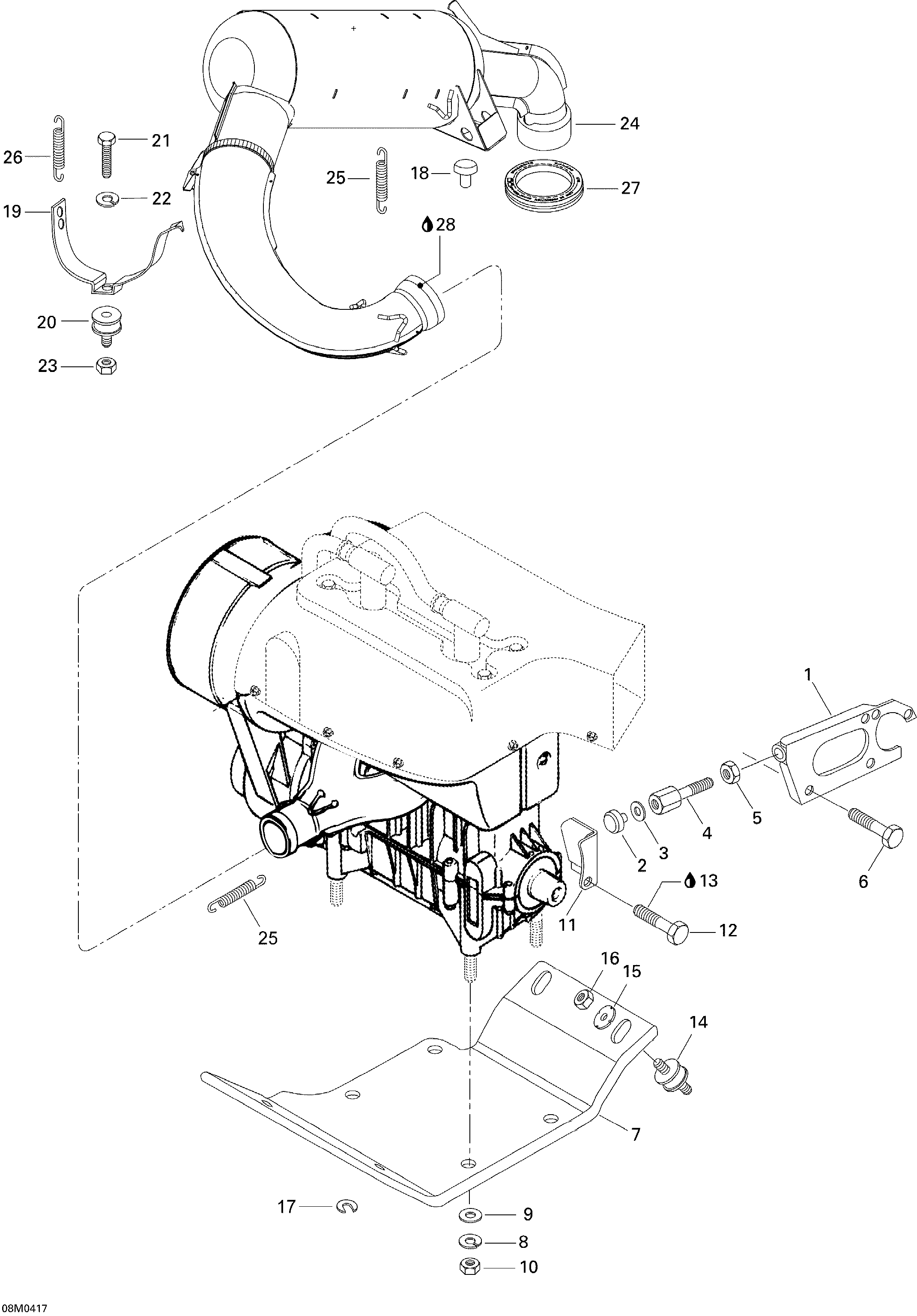

01- Engine Assembly And Support для BRP Ski-Doo Skandic LT 440F - 2004
-
№АртикулНазвание
-
1605350127 Plate SupportPlate Support
-
2512059710 StopperStopper
-
3M20028 WasherWasher
-
4512058800 Stopper ScrewStopper Screw
-
5M33218 Hex Jam NutHex Jam Nut
-
6M40327 Allen Screw M6 X 12Allen Screw M6 X 12
-
7M5246291 Engine SupportEngine Support
-
8M20047 Lock WasherLock Washer
-
9M20105 WasherWasher
-
10232006414 Hex Nut M10Hex Nut M10
-
11M5344446 Welded Stopper PlateWelded Stopper Plate
-
12207181644 Hex. Screw M8 X 16Hex. Screw M8 X 16
-
13293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
14570128700 Rubber MountRubber Mount
-
15512056700 Lock WasherLock Washer
-
16233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
17M546221 WasherWasher
-
18570044700 Rubber PumperRubber Pumper
-
19M535108 SupportSupport
-
20M28245 Rubber BumperRubber Bumper
-
21M40034 ScrewScrew
-
22234181401 Lock Washer 8 mmLock Washer 8 mm
-
23232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
24420979823 MufflerMuffler
-
25420938795 SpringSpring
-
26M543225 SpringSpring
-
27570039000 Exhaust GrommetExhaust Grommet
-
28293800090 Sealant, Loctite 30542, 80 mlSealant, Loctite 30542, 80 ml
