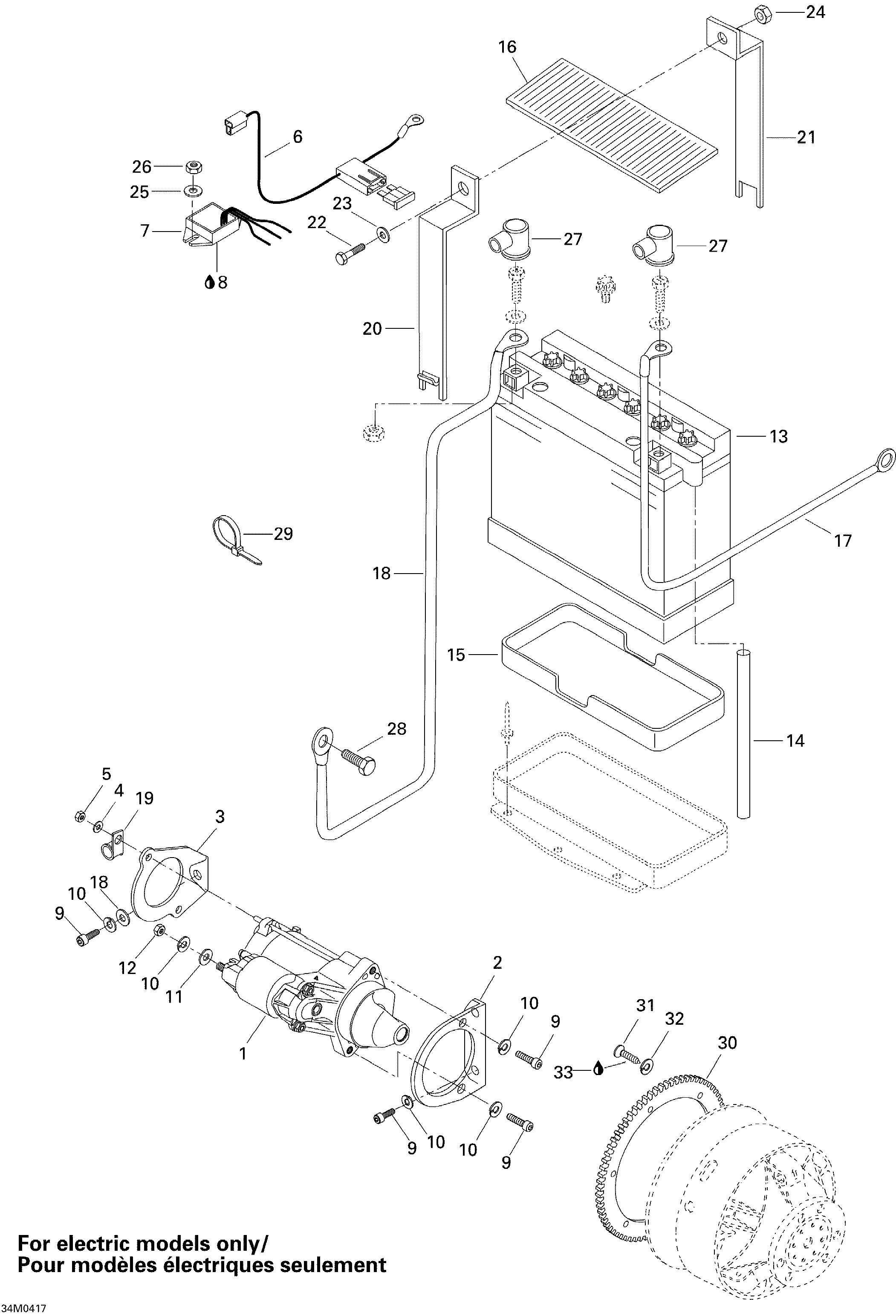

10- Battery And Accessories для BRP Ski-Doo Skandic LT 440F - 2004
-
№АртикулНазвание
-
1410212400 Electric Starter Ass'Y. SEE 06M0417Electric Starter Ass'Y. SEE 06M0417
-
2M5346654 Starter BracketStarter Bracket
-
3M5346655 Mag Starter BracketMag Starter Bracket
-
4M20008 Washer 5 mmWasher 5 mm
-
5232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
6M5346695 Fuse HolderFuse Holder
-
7M5446629 Voltage RegulatorVoltage Regulator
-
8413707500 Grease Tube Lmz, 400 GGrease Tube Lmz, 400 G
-
9205082044 Socket Head Screw M8 X 20Socket Head Screw M8 X 20
-
10234181401 Lock Washer 8 mmLock Washer 8 mm
-
11234081410 Flat Washer 8 mmFlat Washer 8 mm
-
12M33003 NutNut
-
13M42215 Battery (Dry)Battery (Dry)
-
15M5346659 Battery SeatBattery Seat
-
16M5446666 Battery CarpetBattery Carpet
-
17M549886 Ground Wire Ass'YGround Wire Ass'Y
-
19M27092 ClipClip
-
20M5446682 Steel StripSteel Strip
-
21M5446694 Steel StripSteel Strip
-
22207063044 Hex Screw M6 X 30Hex Screw M6 X 30
-
23234061410 Flat WasherFlat Washer
-
24M33200 Nut M6Nut M6
-
25M20009 Washer 6.4 Din 9021Washer 6.4 Din 9021
-
26232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
27570151000 Protection CapProtection Cap
-
28M40327 Allen Screw M6 X 12Allen Screw M6 X 12
-
29414115200 Tie Rap 180 mmTie Rap 180 mm
-
30417009400 Ring Gear 86ThRing Gear 86Th
-
31236281684 Hex Screw M8 X 16Hex Screw M8 X 16
-
32M20078 WasherWasher
-
33293800005 Loctite 271, 10 mlLoctite 271, 10 ml
