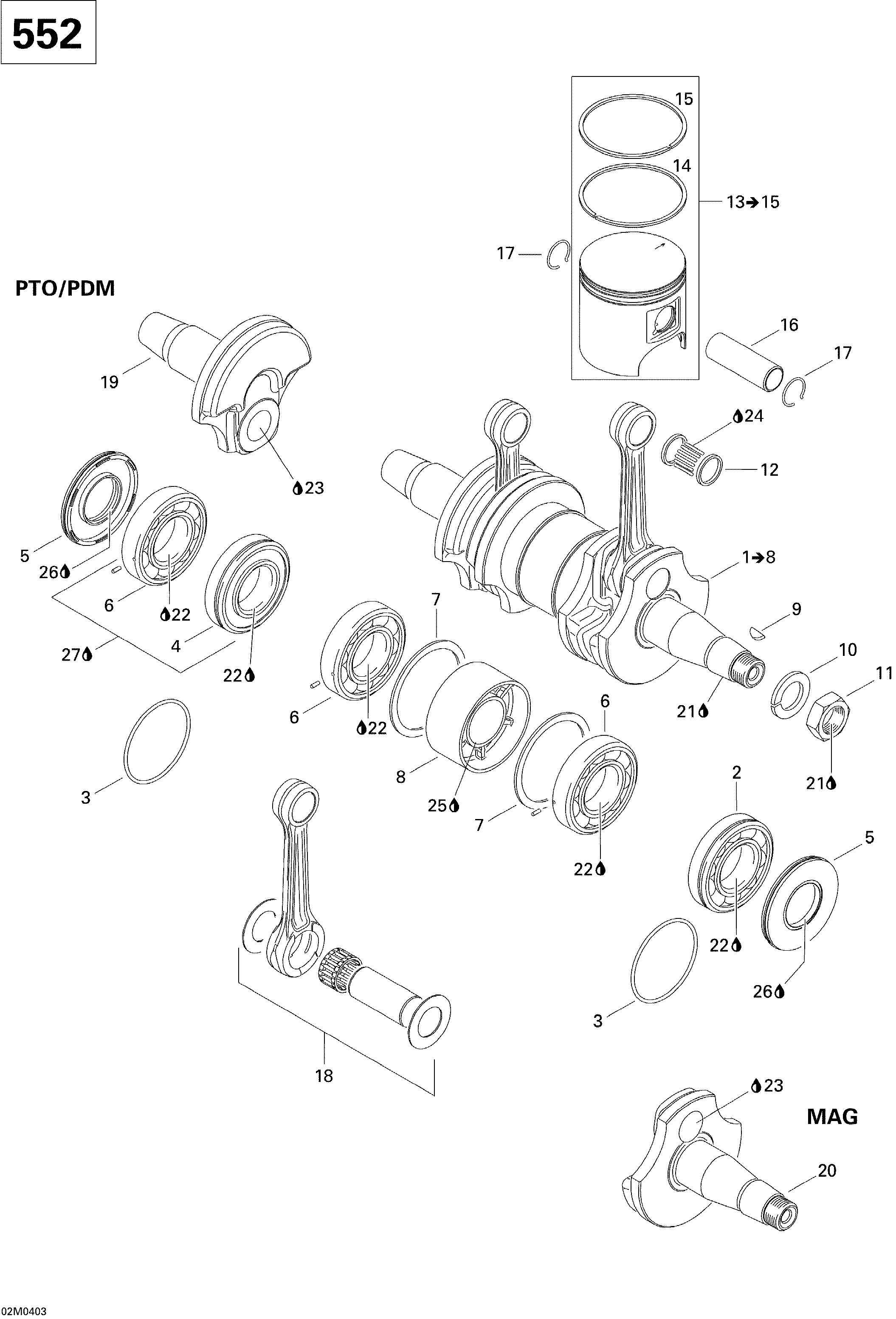

01- Crankshaft, SUMMIT 550F для BRP Ski-Doo Summit 550F - 2004
-
№АртикулНазвание
-
1420889062 Crankshaft Ass'y. Includes Items 1 to 8Crankshaft Ass'y. Includes Items 1 to 8
-
2420832571 Ball BearingBall Bearing
-
3420250165 O-RingO-Ring
-
4420832637 Ball BearingBall Bearing
-
5420831950 Oil SealOil Seal
-
6420832573 Ball BearingBall Bearing
-
7420927710 Retaining DiskRetaining Disk
-
8420850149 Labyrinth SleeveLabyrinth Sleeve
-
9420246055 Woodroff KeyWoodroff Key
-
10420945759 Lock WasherLock Washer
-
11420842234 Hex. Nut M22 x 1.5Hex. Nut M22 x 1.5
-
12420832420 Needle BearingNeedle Bearing
-
13420889050 Piston Ass'y 75.86 mm. Includes Items 13 to 15Piston Ass'y 75.86 mm. Includes Items 13 to 15
-
13420889051 Piston Ass'y 76.11 mm. Includes Items 13 to 15Piston Ass'y 76.11 mm. Includes Items 13 to 15
-
13420889052 Piston Ass'y 76.36 mm. Includes Items 13 to 15Piston Ass'y 76.36 mm. Includes Items 13 to 15
-
14420815300 Rectangular Ring 76 mmRectangular Ring 76 mm
-
14420815301 Rectangular Ring 76.25 mmRectangular Ring 76.25 mm
-
14420815302 Rectangular Ring 76.50 mmRectangular Ring 76.50 mm
-
15420815155 Semi-trapez Ring 76 mmSemi-trapez Ring 76 mm
-
15420815156 Semi-trapez Ring 76.25 mmSemi-trapez Ring 76.25 mm
-
15420815157 Semi-trapez Ring 76.50 mmSemi-trapez Ring 76.50 mm
-
16420916405 Piston PinPiston Pin
-
17420845106 Piston CirclipPiston Circlip
-
18420889064 Rod Repair KitRod Repair Kit
-
19420819181 Crankshaft PTO SideCrankshaft PTO Side
-
20420819210 Crankshaft MAG SideCrankshaft MAG Side
-
21293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
22293800070 Loctite 767, Antiseize Lubricant, 8 ozLoctite 767, Antiseize Lubricant, 8 oz
-
23413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
24413802900 Injection Oil (12 x 1 Liter)Injection Oil (12 x 1 Liter)
-
26420899271 Petamo Grease, GH133N, 400 gPetamo Grease, GH133N, 400 g
-
27293550021 Isoflex Grease, 50 gIsoflex Grease, 50 g
