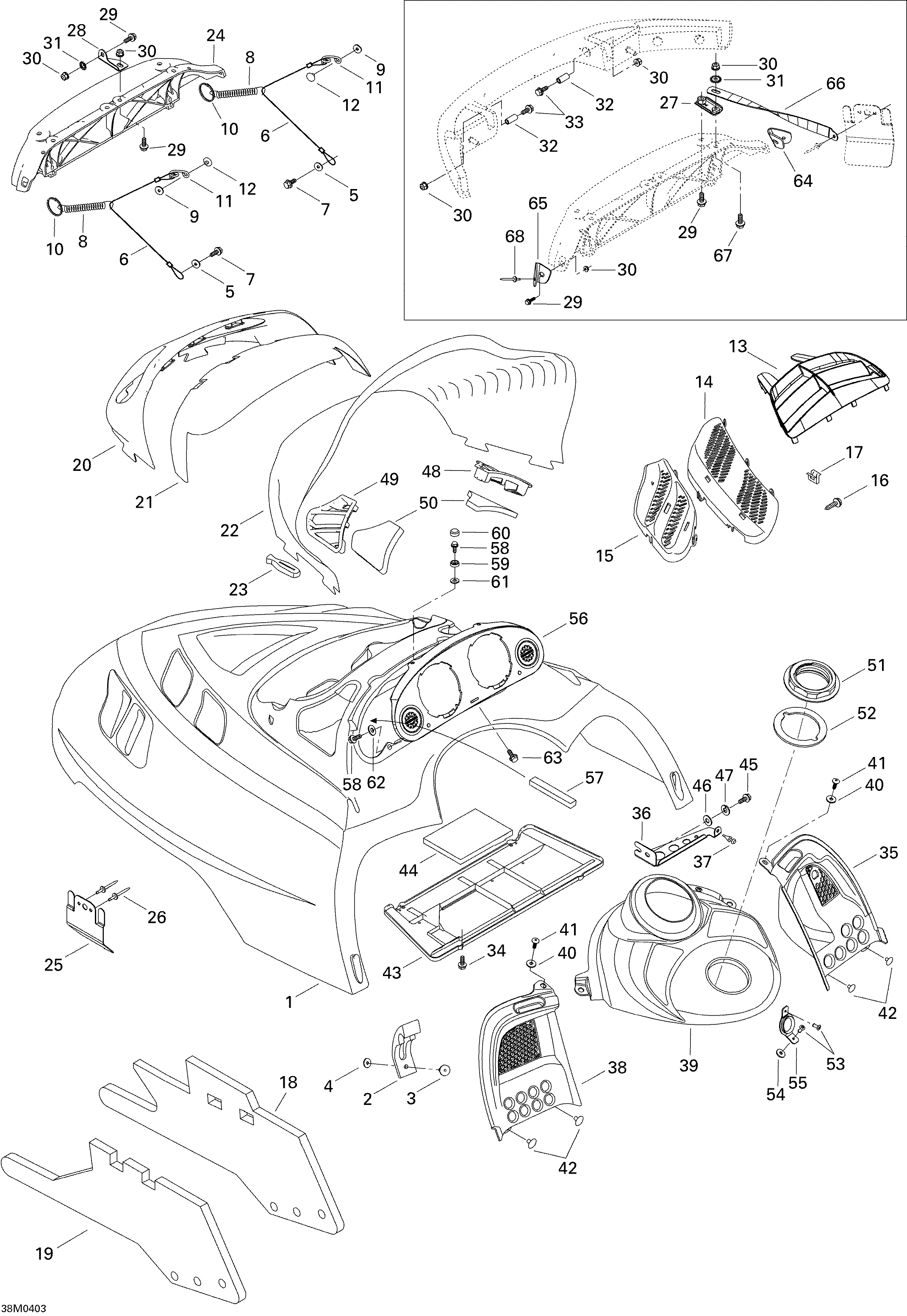

09- Cab, Console SUMMIT 550F для BRP Ski-Doo Summit 550F - 2004
-
№АртикулНазвание
-
1517302846 Hood (Black B-160)Hood (Black B-160)
-
2570027100 Hood LatchHood Latch
-
3293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
4517124300 WasherWasher
-
5391301600 WasherWasher
-
6415093900 Retainer CableRetainer Cable
-
7365901000 Hex Taping Screw #12 X 1/2''Hex Taping Screw #12 X 1/2''
-
8415043300 SpringSpring
-
9517124300 WasherWasher
-
10415058300 RingRing
-
11517262800 BracketBracket
-
12293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
13517302676 Center Grill (Black)Center Grill (Black)
-
14517302567 RH Intermediate Grill (Black)RH Intermediate Grill (Black)
-
517302568 LH Intermediate Grill (Black)LH Intermediate Grill (Black)
-
15517302569 RH Side GrillRH Side Grill
-
517302570 LH Side GrillLH Side Grill
-
16732601210 Hex Flanged Screw #8 X 3/8Hex Flanged Screw #8 X 3/8
-
17517302785 ClipClip
-
18517302669 RH Side FoamRH Side Foam
-
19517303132 LH Side FoamLH Side Foam
-
20517302582 Headlamp Moulding. SUMMITHeadlamp Moulding. SUMMIT
-
21517302003 Windshield SupportWindshield Support
-
22517302022 Medium Windshield. SUMMITMedium Windshield. SUMMIT
-
517302560 High Windshield. SUMMIT EUROPEHigh Windshield. SUMMIT EUROPE
-
23570023800 Windshield LatchWindshield Latch
-
24517302631 HingeHinge
-
25517302615 Hood GuideHood Guide
-
26390910000 Rivet 3/16''Rivet 3/16''
-
27517302176 Hinge Side PlateHinge Side Plate
-
28517302045 Hinge Center PlateHinge Center Plate
-
29207661684 Hex Flanged Screw M6 X 16Hex Flanged Screw M6 X 16
-
30233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
31250200041 Tuflock Phillips ScrewTuflock Phillips Screw
-
32517302179 BushingBushing
-
33207663544 Hex Flanged Screw M6 X 35Hex Flanged Screw M6 X 35
-
34243141640 Hex Plastite ScrewHex Plastite Screw
-
35517302561 RH ConsoleRH Console
-
36517302621 RH Console SupportRH Console Support
-
37517302624 Rubber StopperRubber Stopper
-
38517302006 LH ConsoleLH Console
-
39517302633 Center Console. SUMMITCenter Console. SUMMIT
-
40391301600 WasherWasher
-
41732600030 ScrewScrew
-
42293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
43517302836 Air Intake PlateAir Intake Plate
-
44517302425 Secondary FoamSecondary Foam
-
45210261280 Hex Forming Screw M6 X 12Hex Forming Screw M6 X 12
-
46234061410 Flat WasherFlat Washer
-
47234161471 Lock Washer 6 mmLock Washer 6 mm
-
48517302024 RH Air Intake GrillRH Air Intake Grill
-
49517302025 LH Air Intake GrillLH Air Intake Grill
-
50517302151 Air Intake FoamAir Intake Foam
-
51517302043 Console NutConsole Nut
-
52293250029 GasketGasket
-
53390409400 Pop Rivet 5/32''Pop Rivet 5/32''
-
54517302286 Rubber StopperRubber Stopper
-
55517302129 Rope GuideRope Guide
-
56517302760 Indicator SupportIndicator Support
-
57517302420 FoamFoam
-
58241140060 Screw K40 X 10Screw K40 X 10
-
59414436800 Retainer CapRetainer Cap
-
60414436900 Snap Cap (Black)Snap Cap (Black)
-
61234042600 Flat Washer 4 mmFlat Washer 4 mm
-
62517124300 WasherWasher
-
63732601210 Hex Flanged Screw #8 X 3/8Hex Flanged Screw #8 X 3/8
-
64517302254 RH Corner SupportRH Corner Support
-
65517302255 LH Corner SupportLH Corner Support
-
66517302837 Hood ClampHood Clamp
-
67207662544 Hex Flanged Screw M6 X 25Hex Flanged Screw M6 X 25
-
68390406500 Pop Rivet 3/16''Pop Rivet 3/16''
