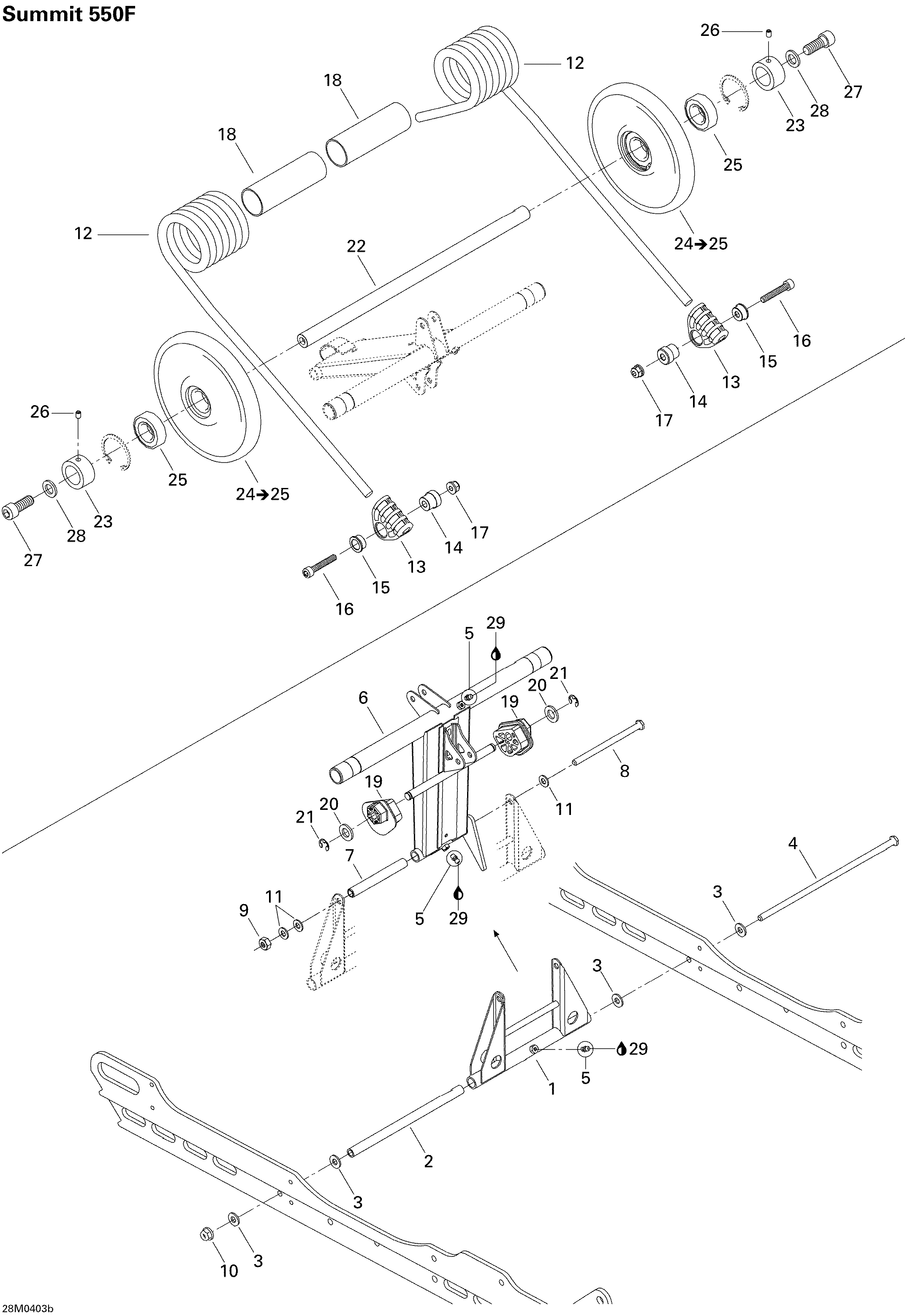

08- Rear Arm SUMMIT 550F для BRP Ski-Doo Summit 550F - 2004
-
№АртикулНазвание
-
1503189793 Pivot ArmPivot Arm
-
2503189156 Pivot Arm AxlePivot Arm Axle
-
3503189157 WasherWasher
-
4732601198 Bolt M8 (Long)Bolt M8 (Long)
-
5408200700 Grease FittingGrease Fitting
-
6503190552 Rear ArmRear Arm
-
7503144300 Upper Axle (Pivot Arm)Upper Axle (Pivot Arm)
-
8732601197 Short Bolt M8Short Bolt M8
-
9232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
10233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
11234081410 Flat Washer 8 mmFlat Washer 8 mm
-
12503189902 RH SpringRH Spring
-
12503189904 LH SpringLH Spring
-
13503189657 Spring SupportSpring Support
-
14503188934 Spring Axle GuideSpring Axle Guide
-
15503188929 Cushion RetainerCushion Retainer
-
16205084544 Socket Head Screw M8 X 45Socket Head Screw M8 X 45
-
17233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
18572086000 BushingBushing
-
19503190023 LH Spring CamLH Spring Cam
-
19503190022 RH Spring CamRH Spring Cam
-
20234021410 Flat Washer 12 mmFlat Washer 12 mm
-
21293370013 CirclipCirclip
-
22503189711 Rear Cross ShaftRear Cross Shaft
-
23503168800 Retaining RingRetaining Ring
-
24503190269 Wheel 165 Ass'Y. INCLUDES 24 TO 25Wheel 165 Ass'Y. INCLUDES 24 TO 25
-
25503189567 Ball Bearing 6205Ball Bearing 6205
-
26206260844 Socket Set Screw M6 X 8Socket Set Screw M6 X 8
-
27205523544 Socket Head Screw M12 X 35 (Scotch Grip)Socket Head Screw M12 X 35 (Scotch Grip)
-
28503189276 WasherWasher
-
29219700417 Synthetic Grease, 400gSynthetic Grease, 400g
