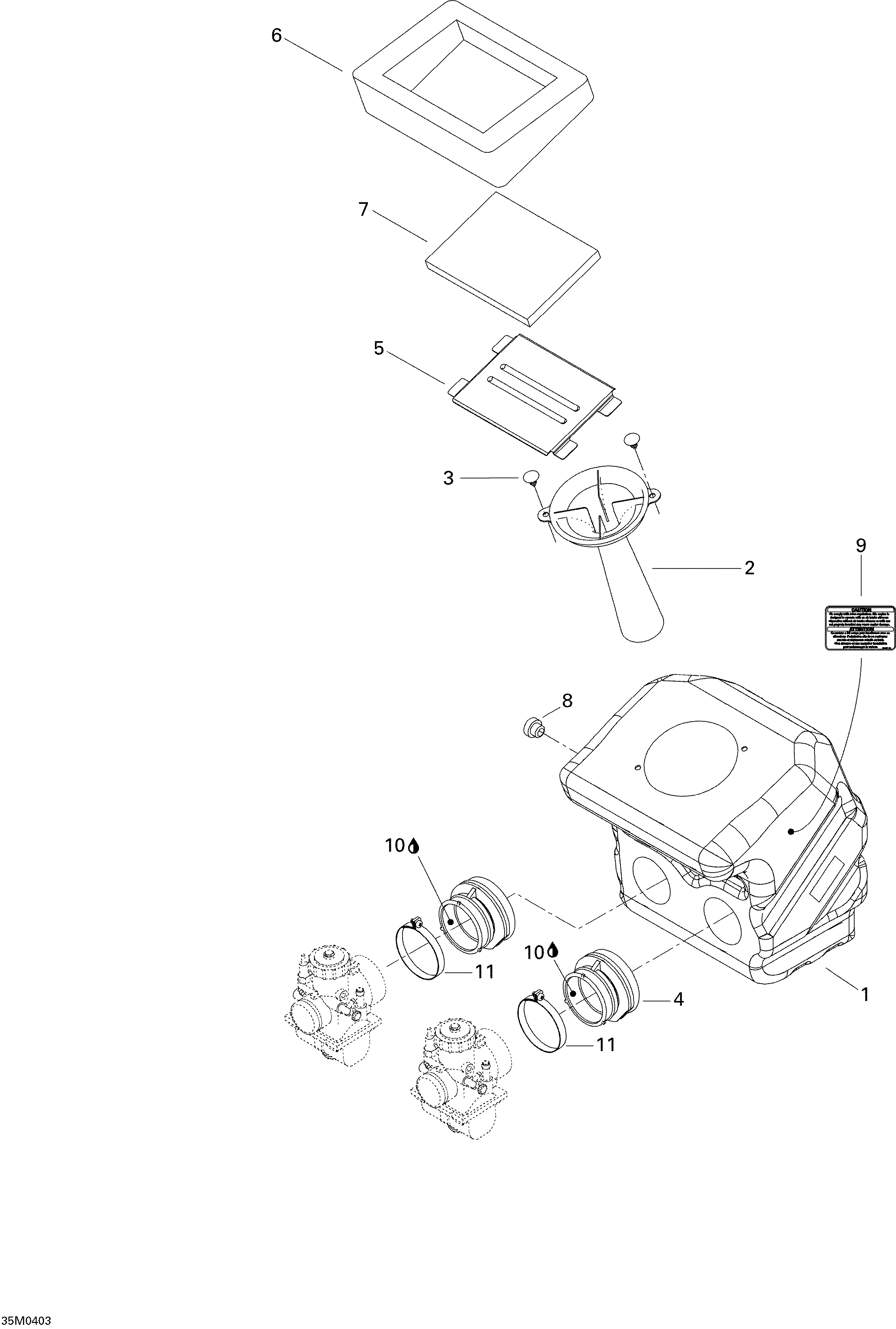

02- Air Intake System SUMMIT 550F для BRP Ski-Doo Summit 550F - 2004
-
№АртикулНазвание
-
1508000319 Air IntakeAir Intake
-
2572054803 Inlet TubeInlet Tube
-
3414644300 DartDart
-
4508000203 Adaptor 34 mmAdaptor 34 mm
-
5508000004 Intake GrillIntake Grill
-
6508000245 Outer FoamOuter Foam
-
7508000154 Air FilterAir Filter
-
8513032908 GrommetGrommet
-
9516001191 Instruction LabelInstruction Label
-
10413803100 Blizzard Oil (12 X 500 ml)Blizzard Oil (12 X 500 ml)
-
11508000344 Gemi ClampGemi Clamp
