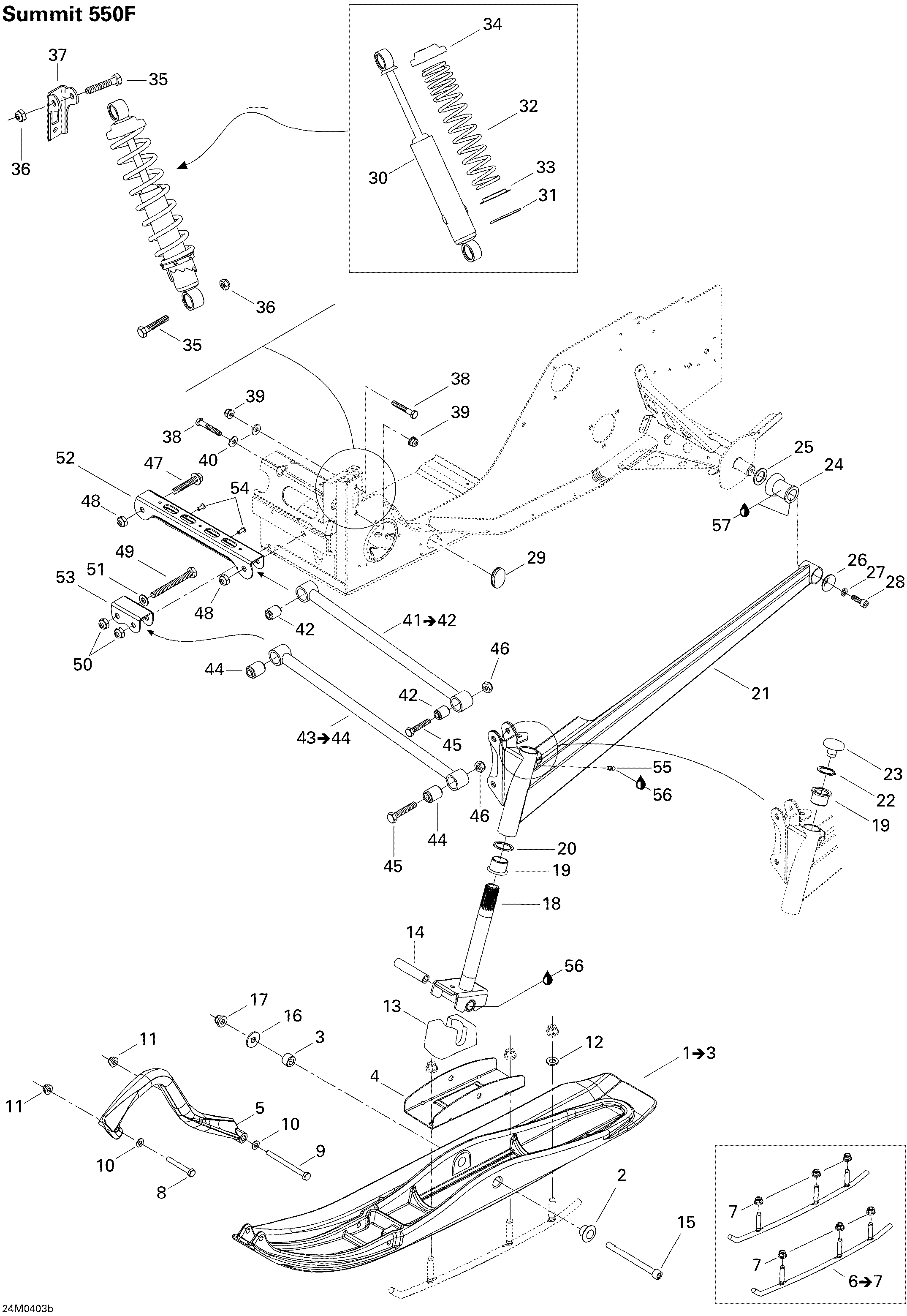

07- Front Suspension SUMMIT 550F для BRP Ski-Doo Summit 550F - 2004
-
№АртикулНазвание
-
1505071046 RH Ski (Black) Ass'Y. INCLUDES 1 TO 3RH Ski (Black) Ass'Y. INCLUDES 1 TO 3
-
505071047 LH Ski (Black) Ass'Y. INCLUDES 1 TO 3LH Ski (Black) Ass'Y. INCLUDES 1 TO 3
-
2505070743 CushionCushion
-
3505070823 CushionCushion
-
4505070745 Ski RenforcmentSki Renforcment
-
5505070963 Handle (Black)Handle (Black)
-
6860504800 Carbide Runner. INCLUDES 6 TO 7Carbide Runner. INCLUDES 6 TO 7
-
7233201414 Elastic Flanged Stop Nut M10Elastic Flanged Stop Nut M10
-
8207085044 Hex Screw M8 X 50Hex Screw M8 X 50
-
9230080044 Hex Screw M8 X 100Hex Screw M8 X 100
-
10234081410 Flat Washer 8 mmFlat Washer 8 mm
-
11233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
12399910100 Flat WasherFlat Washer
-
13506151233 Ski StopperSki Stopper
-
14506133300 SpacerSpacer
-
15250000069 Socket Head Screw M10 X 125Socket Head Screw M10 X 125
-
16234002410 Flat Washer 10 mmFlat Washer 10 mm
-
17732610084 Flanged Nut M10Flanged Nut M10
-
18505070672 Ski LegSki Leg
-
19505070003 CushionCushion
-
20505070004 WasherWasher
-
21505070645 RH Swing ArmRH Swing Arm
-
505070646 LH Swing ArmLH Swing Arm
-
22371910400 CirclipCirclip
-
23572091300 CapCap
-
24570062200 DamperDamper
-
25503146700 WasherWasher
-
26506079600 CupCup
-
27234181401 Lock Washer 8 mmLock Washer 8 mm
-
28205582544 Socket Head Screw M8 X 25Socket Head Screw M8 X 25
-
29414916600 Nylon CapNylon Cap
-
30505070694 Front ShockFront Shock
-
31505070401 WasherWasher
-
32505070762 SpringSpring
-
33503187500 Spring GuideSpring Guide
-
34503140600 Spring StopperSpring Stopper
-
35207005544 Hex Screw M10 X 55Hex Screw M10 X 55
-
36233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
37518317518 RH Shock BracketRH Shock Bracket
-
518317519 LH Shock BracketLH Shock Bracket
-
38207085044 Hex Screw M8 X 50Hex Screw M8 X 50
-
39233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
40506151245 WasherWasher
-
41505070746 Upper Arm Ass'Y. INCLUDES 41 TO 42Upper Arm Ass'Y. INCLUDES 41 TO 42
-
42505070025 BushingBushing
-
43505070748 Lower Arm Ass'Y. INCLUDES 43 TO 44Lower Arm Ass'Y. INCLUDES 43 TO 44
-
44505070025 BushingBushing
-
45207005544 Hex Screw M10 X 55Hex Screw M10 X 55
-
46233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
47207605544 Hex Flanged Screw M10 X 55Hex Flanged Screw M10 X 55
-
48233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
49207009544 Hex Screw M10 X 95Hex Screw M10 X 95
-
50233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
51234001410 Flat Washer 10 mmFlat Washer 10 mm
-
52505070010 Upper Arm BracketUpper Arm Bracket
-
53505070011 Lower Arm BracketLower Arm Bracket
-
54390402200 Rivet 3/16''Rivet 3/16''
-
55408200700 Grease FittingGrease Fitting
-
56219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
57293550030 Grease, Super LubeGrease, Super Lube
