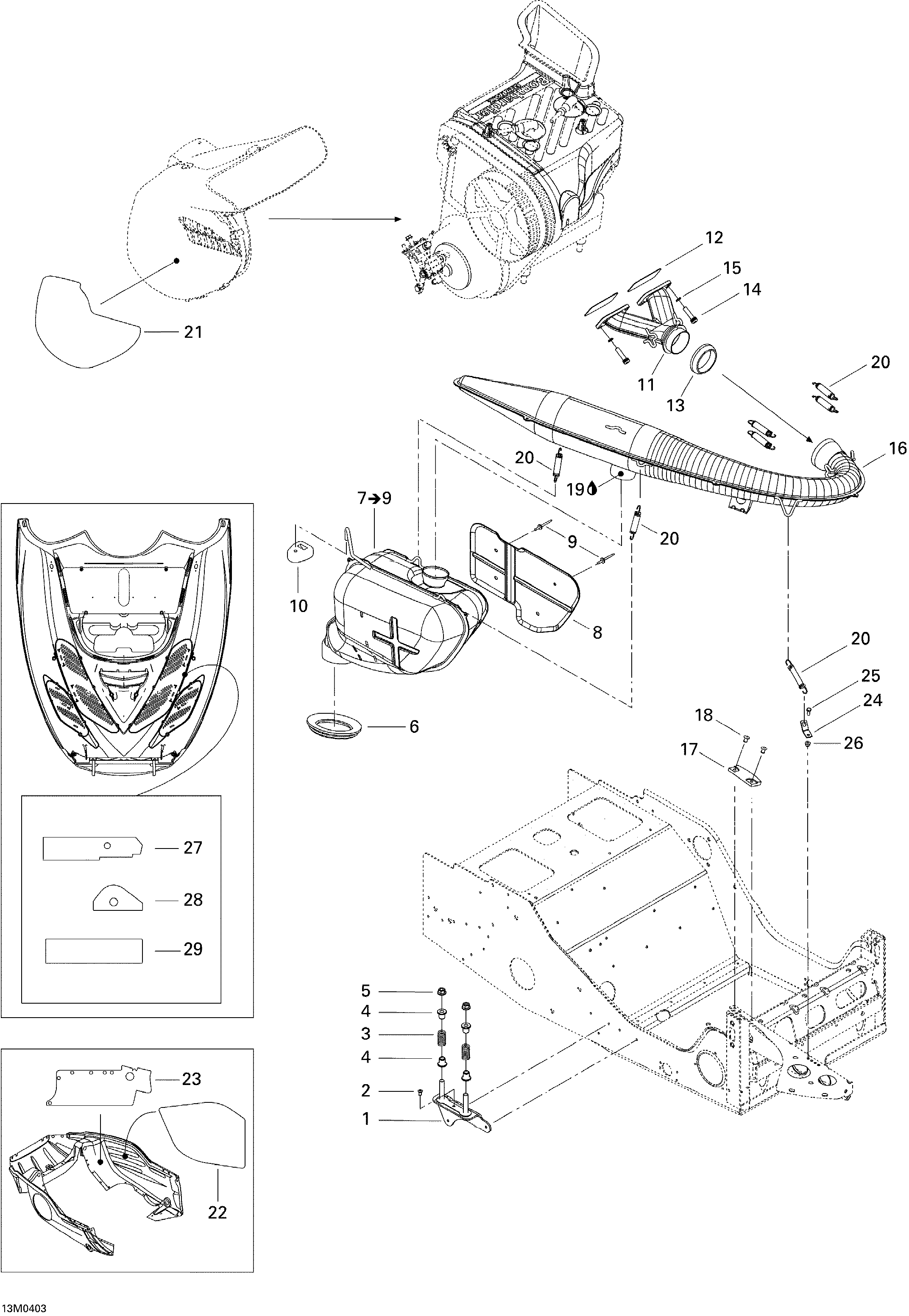

01- Exhaust System, Summit 550F для BRP Ski-Doo Summit 550F - 2004
-
№АртикулНазвание
-
1514053263 AttacheAttache
-
2390402200 Rivet 3/16''Rivet 3/16''
-
3414913700 SpringSpring
-
4514053343 GuideGuide
-
5233481413 Lock Spring Nut M8Lock Spring Nut M8
-
6570039000 Exhaust GrommetExhaust Grommet
-
7514053648 Muffler Ass'Y. INCLUDES 7 TO 9Muffler Ass'Y. INCLUDES 7 TO 9
-
8514053389 Heat ShieldHeat Shield
-
9390910000 Rivet 3/16''Rivet 3/16''
-
10514052704 Rubber BumperRubber Bumper
-
11420673065 Exhaust ManifoldExhaust Manifold
-
12420831849 Gasket 1.0 mmGasket 1.0 mm
-
13514053644 Exhaust GasketExhaust Gasket
-
14205083044 Socket Head Screw M8 X 30Socket Head Screw M8 X 30
-
15234181401 Lock Washer 8 mmLock Washer 8 mm
-
16514053645 Calibrated TubeCalibrated Tube
-
17570044100 Rubber PadRubber Pad
-
18293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
19293800090 Sealant, Loctite 30542, 80 mlSealant, Loctite 30542, 80 ml
-
20415107100 SpringSpring
-
21514053363 Reflective SheetReflective Sheet
-
22514052718 Reflective SheetReflective Sheet
-
23514053390 Reflective SheetReflective Sheet
-
24514034000 Spring BracketSpring Bracket
-
25207151244 Hex Screw M5 X 12Hex Screw M5 X 12
-
26233251414 Elastic Flanged Stop Nut M5Elastic Flanged Stop Nut M5
-
27514053435 Reflective Sheet (Black Cab)Reflective Sheet (Black Cab)
-
28514053446 Reflective Sheet (Black Cab)Reflective Sheet (Black Cab)
-
29514053392 Reflective SheetReflective Sheet
