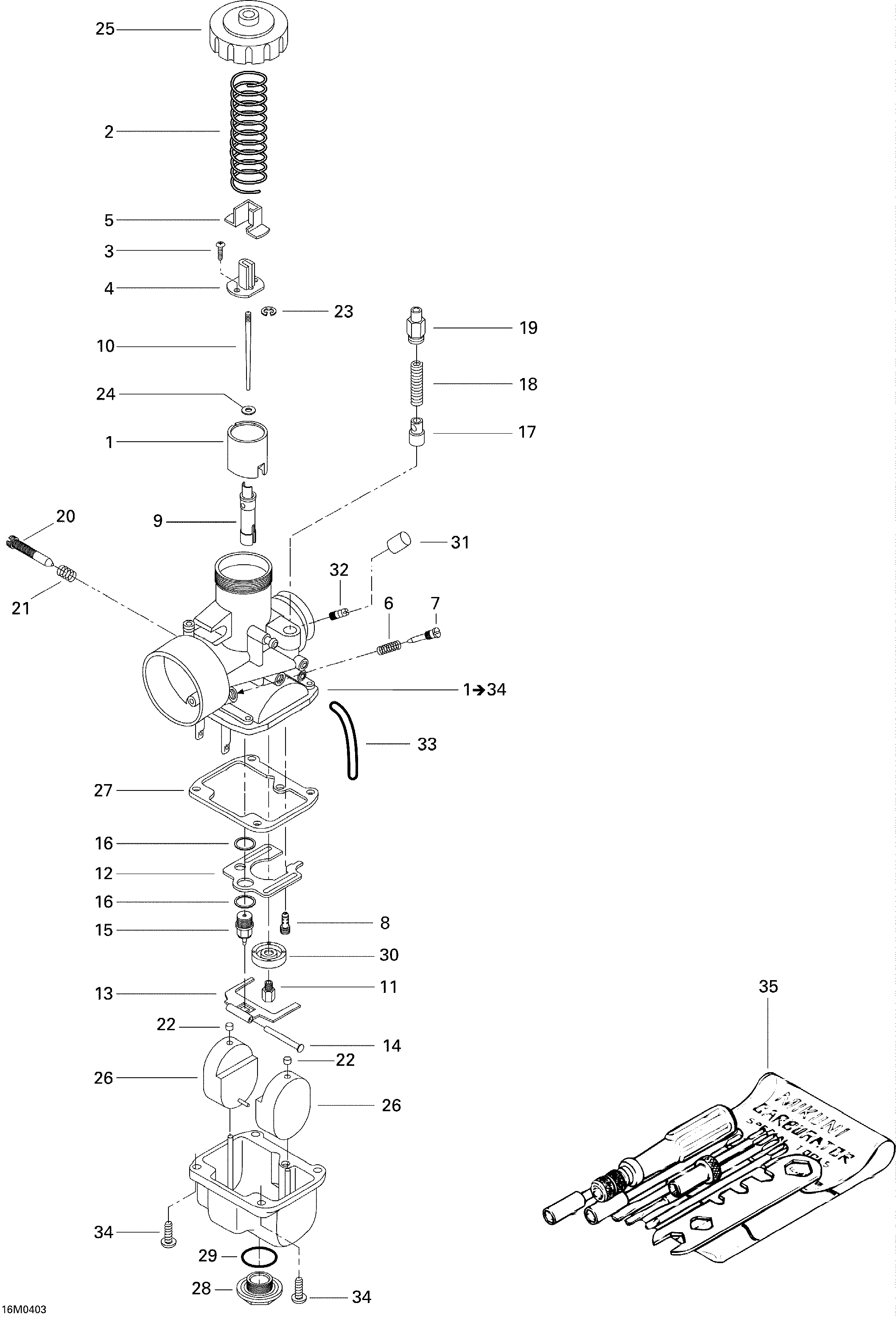

02- Carburetor SUMMIT 550F для BRP Ski-Doo Summit 550F - 2004
-
№АртикулНазвание
-
1403138726 Carburetor VM 34-590. Includes Items 1 to 34Carburetor VM 34-590. Includes Items 1 to 34
-
403138727 Carburetor VM 34-591. Includes Items 1 to 34, EUROPECarburetor VM 34-591. Includes Items 1 to 34, EUROPE
-
1404128400 Piston Valve CA 2.5Piston Valve CA 2.5
-
2404154800 SpringSpring
-
3404121300 Screw with WasherScrew with Washer
-
4404161948 PackingPacking
-
5404122100 CoverCover
-
6404139800 Spring (Air Screw)Spring (Air Screw)
-
7404149000 Air ScrewAir Screw
-
8404109100 Pilot Jet PJ 40Pilot Jet PJ 40
-
9404120800 Needle Jet NJ P-8 (159)Needle Jet NJ P-8 (159)
-
10404162032 Jet Needle JN J8-6BCY40Jet Needle JN J8-6BCY40
-
11404119100 Main Jet MJ 210Main Jet MJ 210
-
404100300 Main Jet MJ 250. EUROPEMain Jet MJ 250. EUROPE
-
12404109600 BaffleBaffle
-
13404107600 Float LeverFloat Lever
-
14404103300 Lever PinLever Pin
-
15404147500 Needle Valve 1.2Needle Valve 1.2
-
16404101600 Seat WasherSeat Washer
-
17404161986 Plunger Ass'yPlunger Ass'y
-
18404127400 SpringSpring
-
19404161100 GuideGuide
-
20404125200 Throttle ScrewThrottle Screw
-
21404101700 Spring (Throttle Screw)Spring (Throttle Screw)
-
22404105800 CapCap
-
23404152400 E-RingE-Ring
-
24404117000 PackingPacking
-
25404103700 CoverCover
-
26404107100 FloatFloat
-
27404104200 GasketGasket
-
28404107400 Drain Plug ScrewDrain Plug Screw
-
29404107300 O-RingO-Ring
-
30404110900 Baffle RingBaffle Ring
-
31404156600 CapCap
-
32404153400 NippleNipple
-
33404161851 Air Vent TubeAir Vent Tube
-
34404102000 Screw and Lock WasherScrew and Lock Washer
-
35404112000 Tool KitTool Kit
