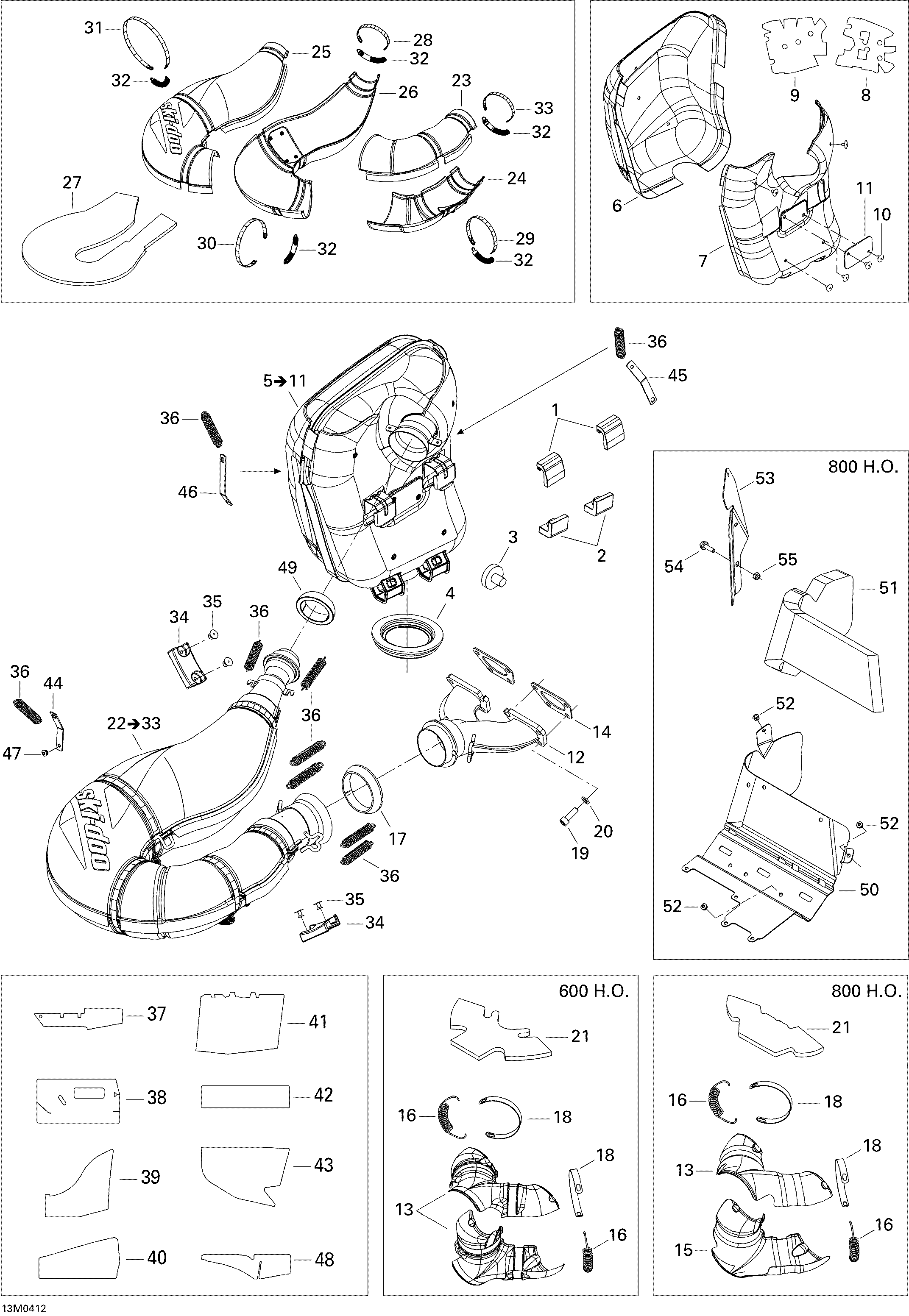

01- Exhaust System для BRP Ski-Doo Summit 800 HO - 2004

№

Артикул

Название
1

514053372 Upper Stopper

Upper Stopper

790 ₽
2

514053373 Lower Stopper

Lower Stopper

0 ₽
3

514053654 Rubber Bumper

Rubber Bumper

1 370 ₽
4

514053394 Exhaust Grommet

Exhaust Grommet

0 ₽
5

514053729 Muffler Ass'Y. Includes items 5 to 11 / 600 H.O.

Muffler Ass'Y. Includes items 5 to 11 / 600 H.O.

0 ₽
514053746 Muffler Ass'Y. Includes items 5 to 11 / 800 H.O.

Muffler Ass'Y. Includes items 5 to 11 / 800 H.O.

0 ₽
6

514053563 RH Heat Shield

RH Heat Shield

0 ₽
7

514053585 LH Heat Shield

LH Heat Shield

2 400 ₽
8

514053590 LH Insulating Wool

LH Insulating Wool

990 ₽
9

514053589 RH Insulating Wool

RH Insulating Wool

990 ₽
10

390910000 Rivet 3/16''

Rivet 3/16''

210 ₽
11

514053429 Reinforcement

Reinforcement

840 ₽
12

420673070 Exhaust Manifold. 600 H.O.

Exhaust Manifold. 600 H.O.

0 ₽
420973713 Exhaust Manifold. 800 H.O.

Exhaust Manifold. 800 H.O.

26 450 ₽
13

514053593 Enveloppe (Exhaust Manifold). 600 H.O.

Enveloppe (Exhaust Manifold). 600 H.O.

1 080 ₽
514053831 Upper Enveloppe (Exhaust Manifold). 800 H.O.

Upper Enveloppe (Exhaust Manifold). 800 H.O.

0 ₽
14

420850552 Gasket. 600 H.O.

Gasket. 600 H.O.

1 530 ₽
420931850 Gasket. 800 H.O.

Gasket. 800 H.O.

1 260 ₽
15

514053830 Lower Enveloppe (Exhaust Manifold). 800 H.O.

Lower Enveloppe (Exhaust Manifold). 800 H.O.

0 ₽
16

514053643 Spring

Spring

3 090 ₽
17

514053487 Exhaust Gasket

Exhaust Gasket

7 740 ₽
18

514053603 Retaining Strap

Retaining Strap

250 ₽
19

205062044 Socket Head Screw M6 X 20

Socket Head Screw M6 X 20

120 ₽
20

234161471 Lock Washer 6 mm

Lock Washer 6 mm

190 ₽
21

514053284 Insulating Wool. 800 H.O.

Insulating Wool. 800 H.O.

840 ₽
514053588 Insulating Wool. 600 H.O.

Insulating Wool. 600 H.O.

990 ₽
22

514053735 Tuned Pipe Ass'Y. Includes items 22 to 33 / 600 H.O.

Tuned Pipe Ass'Y. Includes items 22 to 33 / 600 H.O.

59 570 ₽
514053818 Tuned Pipe Ass'Y. Includes items 22 to 33 / 800 H.O.

Tuned Pipe Ass'Y. Includes items 22 to 33 / 800 H.O.

56 700 ₽
23

514053609 Upper Front Half Envelope

Upper Front Half Envelope

2 900 ₽
24

514053610 Lower Front Haft Envelope

Lower Front Haft Envelope

2 220 ₽
25

514053612 Upper Rear Half Envelope

Upper Rear Half Envelope

2 820 ₽
26

514053613 Lower Rear Half Envelope

Lower Rear Half Envelope

4 060 ₽
27

514053584 Insulating Wool

Insulating Wool

990 ₽
28

514053437 Retaining Strap

Retaining Strap

250 ₽
29

514053500 Retaining Strap

Retaining Strap

250 ₽
30

514053534 Retaining Strap

Retaining Strap

700 ₽
31

514053535 Retaining Strap

Retaining Strap

700 ₽
32

514053643 Spring

Spring

3 090 ₽
33

514053536 Retaining Strap

Retaining Strap

1 070 ₽
34

514053352 Bumper

Bumper

1 500 ₽
35

293150103 Pop Rivet 3/16''

Pop Rivet 3/16''

210 ₽
36

415107100 Spring

Spring

1 990 ₽
37

514053560 Reflective Sheet

Reflective Sheet

1 470 ₽
38

514053912 Reflective Sheet

Reflective Sheet

500 ₽
39

514053913 Reflective Sheet

Reflective Sheet

500 ₽
40

514053914 Reflective Sheet

Reflective Sheet

480 ₽
41

514053561 Reflective Sheet

Reflective Sheet

1 250 ₽
42

514053392 Reflective Sheet

Reflective Sheet

220 ₽
43

514053562 Reflective Sheet

Reflective Sheet

1 470 ₽
44

514049700 Spring Bracket

Spring Bracket

0 ₽
45

514053725 Spring Bracket

Spring Bracket

250 ₽
46

514053393 Spring Bracket

Spring Bracket

990 ₽
47

390402200 Rivet 3/16''

Rivet 3/16''

120 ₽
48

514053673 Reflection Sheet

Reflection Sheet

250 ₽
49

514053812 Exhaust Gasket

Exhaust Gasket

8 330 ₽
50

514053872 Acoustic Plate. 800 H.O.

Acoustic Plate. 800 H.O.

0 ₽
51

514053875 Acoustic Foam. 800 H.O.

Acoustic Foam. 800 H.O.

0 ₽
52

390402200 Rivet 3/16''. 800 H.O.

Rivet 3/16''. 800 H.O.

120 ₽
53

514053876 Heat Deflector. 800 H.O.

Heat Deflector. 800 H.O.

450 ₽
54

207662044 Hex. Flanged Screw M6 X 20. 800 H.O.

Hex. Flanged Screw M6 X 20. 800 H.O.

1 470 ₽
55

232561414 Elastic Stop Nut M6. 800 H.O.

Elastic Stop Nut M6. 800 H.O.

50 ₽
