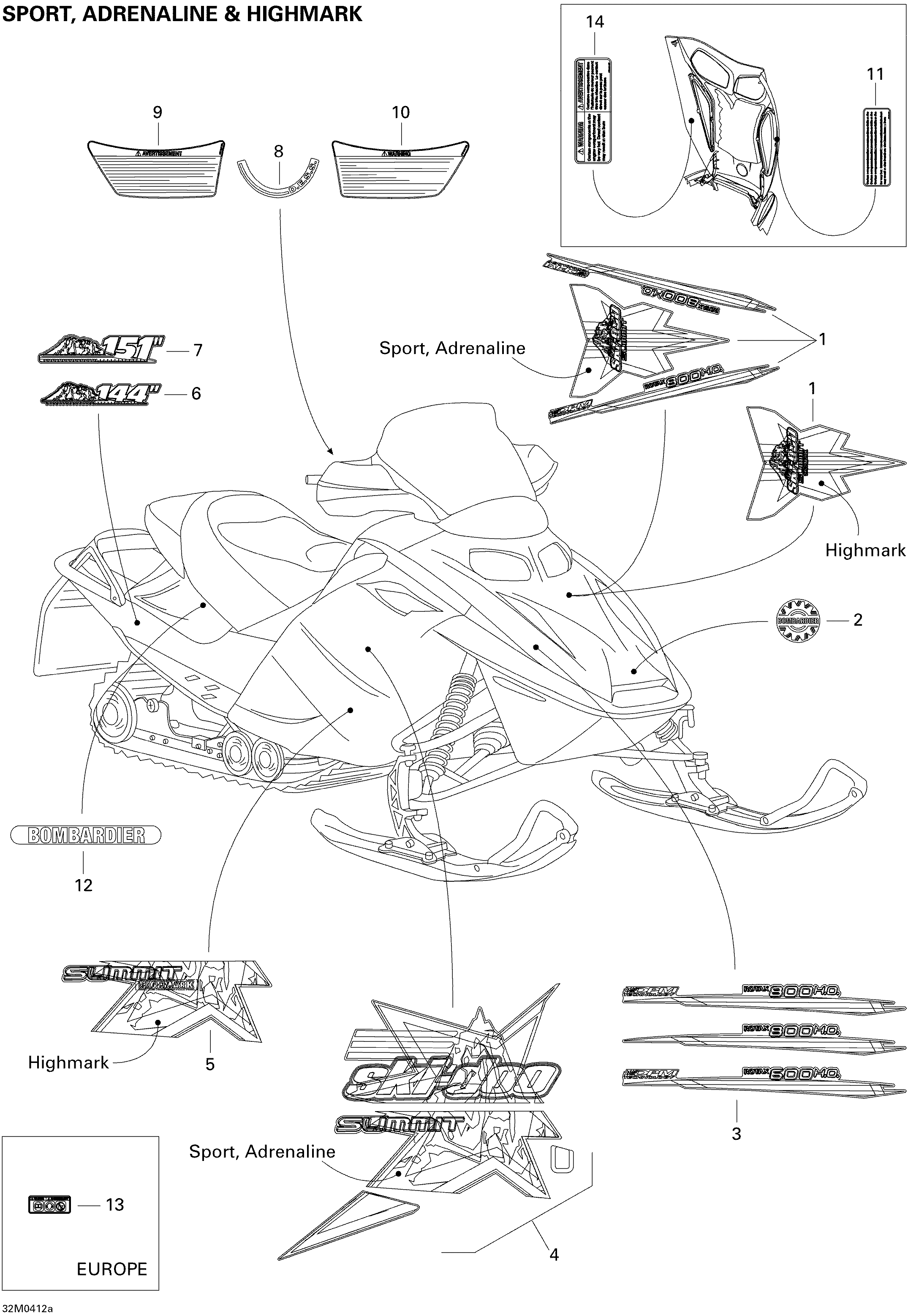

09- Decals (sport, Adrenaline, Highmark) для BRP Ski-Doo Summit 800 HO - 2004
-
№АртикулНазвание
-
1415128654 Hood Decal Kit. Sport & AdrenalineHood Decal Kit. Sport & Adrenaline
-
1516002108 Front Hood Decal. HighmarkFront Hood Decal. Highmark
-
2516000983 Bombardier LogoBombardier Logo
-
3516002031 LH Hood Decal 800 H.O.. 800 H.O. With DPM (Black (B-160))LH Hood Decal 800 H.O.. 800 H.O. With DPM (Black (B-160))
-
516002033 LH Hood Decal 600 H.O.. 600 H.O. With DPM (Black (B-160))LH Hood Decal 600 H.O.. 600 H.O. With DPM (Black (B-160))
-
516002035 LH Hood Decal 800 H.O.. 800 H.O. Without DPM (Black (B-160))LH Hood Decal 800 H.O.. 800 H.O. Without DPM (Black (B-160))
-
516002037 LH Hood Decal 600 H.O.. 600 H.O. With DPM (Orange (B-228))LH Hood Decal 600 H.O.. 600 H.O. With DPM (Orange (B-228))
-
516002039 LH Hood Decal 800 H.O.. 800 H.O. Without DPM (Orange (B-228))LH Hood Decal 800 H.O.. 800 H.O. Without DPM (Orange (B-228))
-
516002030 RH Hood Decal 800 H.O.. 800 H.O. With DPM (Black (B-160))RH Hood Decal 800 H.O.. 800 H.O. With DPM (Black (B-160))
-
516002032 RH Hood Decal 600 H.O.. 600 H.O. With DPM (Black (B-160))RH Hood Decal 600 H.O.. 600 H.O. With DPM (Black (B-160))
-
516002034 RH Hood Decal 800 H.O.. 800 H.O. Without DPM (Black (B-160))RH Hood Decal 800 H.O.. 800 H.O. Without DPM (Black (B-160))
-
516002036 RH Hood Decal 600 H.O.. 600 H.O. With DPM (Orange (B-228))RH Hood Decal 600 H.O.. 600 H.O. With DPM (Orange (B-228))
-
516002038 RH Hood Decal 800 H.O.. 800 H.O. Without DPM (Orange (B-228))RH Hood Decal 800 H.O.. 800 H.O. Without DPM (Orange (B-228))
-
4415128652 RH Side Decal KitRH Side Decal Kit
-
415128653 LH Side Decal KitLH Side Decal Kit
-
5516002109 RH Lower Side Decal. HighmarkRH Lower Side Decal. Highmark
-
516002110 LH Lower Side Decal. HighmarkLH Lower Side Decal. Highmark
-
6516002056 Frame Forming Decal 144''. Track 144''Frame Forming Decal 144''. Track 144''
-
7516002057 Frame Forming Decal 151''. Track 151''Frame Forming Decal 151''. Track 151''
-
8516001335 Dess DecalDess Decal
-
9516002023 Label Security (Starting) (English)Label Security (Starting) (English)
-
10516002024 Label Security (Starting) (French)Label Security (Starting) (French)
-
11516001928 Pending LabelPending Label
-
12516001980 Bombardier DecalBombardier Decal
-
13516001296 Decal (Europe). EuropeDecal (Europe). Europe
-
14516001297 Security LabelSecurity Label
