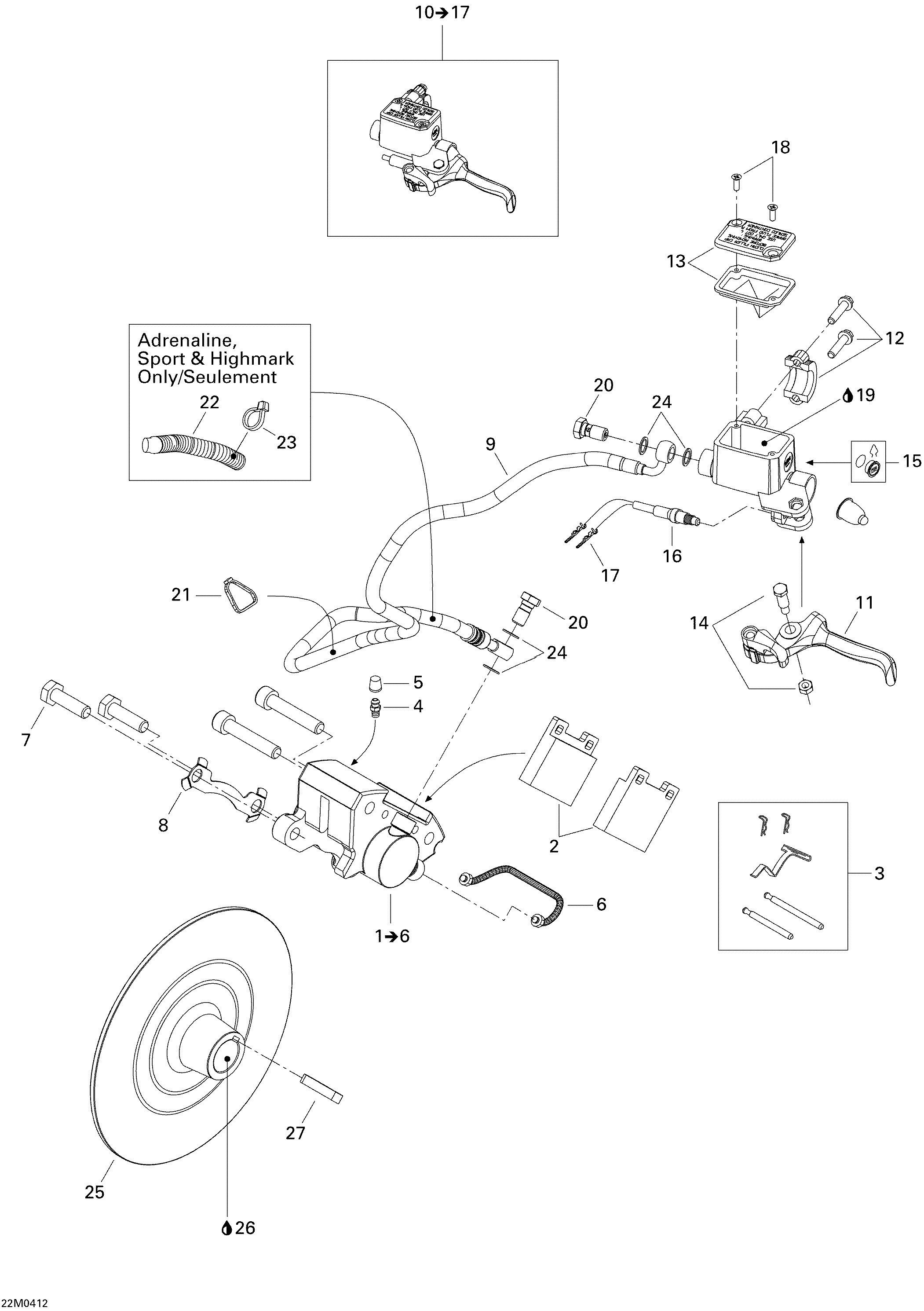

06- Hydraulic Brake для BRP Ski-Doo Summit 800 HO - 2004
-
№АртикулНазвание
-
1507032382 Caliper. Includes items 1 to 6 / X, Highmark X & HM XtremeCaliper. Includes items 1 to 6 / X, Highmark X & HM Xtreme
-
1507032383 Caliper. Includes items 1 to 6 / Adrenaline, Sport & HighmarkCaliper. Includes items 1 to 6 / Adrenaline, Sport & Highmark
-
2415084600 Brake Pad KitBrake Pad Kit
-
3414990700 Kit (Pins, Retainers, Spring)Kit (Pins, Retainers, Spring)
-
4414989800 Bleeder ScrewBleeder Screw
-
5414989700 BootBoot
-
6414989900 Rigid TubingRigid Tubing
-
7207103544 Hex Screw M10 X 35Hex Screw M10 X 35
-
8507032316 Locking TabLocking Tab
-
9507032397 Hose. X, Highmark X & HM XtremeHose. X, Highmark X & HM Xtreme
-
9507032398 Hose. Adrenaline, Sport & HighmarkHose. Adrenaline, Sport & Highmark
-
10507032362 Master Cylinder. Includes items 10 to 17Master Cylinder. Includes items 10 to 17
-
11507032268 Brake Short Lever Ass'yBrake Short Lever Ass'y
-
12415029800 Clamp Ass'YClamp Ass'Y
-
13415029900 CapCap
-
14415030000 Pin Ass'YPin Ass'Y
-
15414990600 WindowWindow
-
16507032366 MicroswitchMicroswitch
-
17515175232 Male TerminalMale Terminal
-
18216141260 Screw M4 X 12Screw M4 X 12
-
19293600063 Brake Fluid, Srf (Dot 4)Brake Fluid, Srf (Dot 4)
-
19293600062 Brake Fluid, Gtlma (Dot 4) 12 X 354 mlBrake Fluid, Gtlma (Dot 4) 12 X 354 ml
-
20414920500 Banjo BoltBanjo Bolt
-
21293750002 Tie Rap 130 mmTie Rap 130 mm
-
22293750002 Tie Rap 130 mm. Adrenaline, Sport & HighmarkTie Rap 130 mm. Adrenaline, Sport & Highmark
-
23415079900 Tubing (10 mm). Adrenaline, Sport & HighmarkTubing (10 mm). Adrenaline, Sport & Highmark
-
24414920600 WasherWasher
-
25507031300 Brake Disk. Adrenaline, Sport & HighmarkBrake Disk. Adrenaline, Sport & Highmark
-
25507032395 Brake Disk. X, Highmark X & HM XtremeBrake Disk. X, Highmark X & HM Xtreme
-
26293800070 Loctite 767, Antiseize, 8 OzLoctite 767, Antiseize, 8 Oz
-
27507021300 KeyKey
