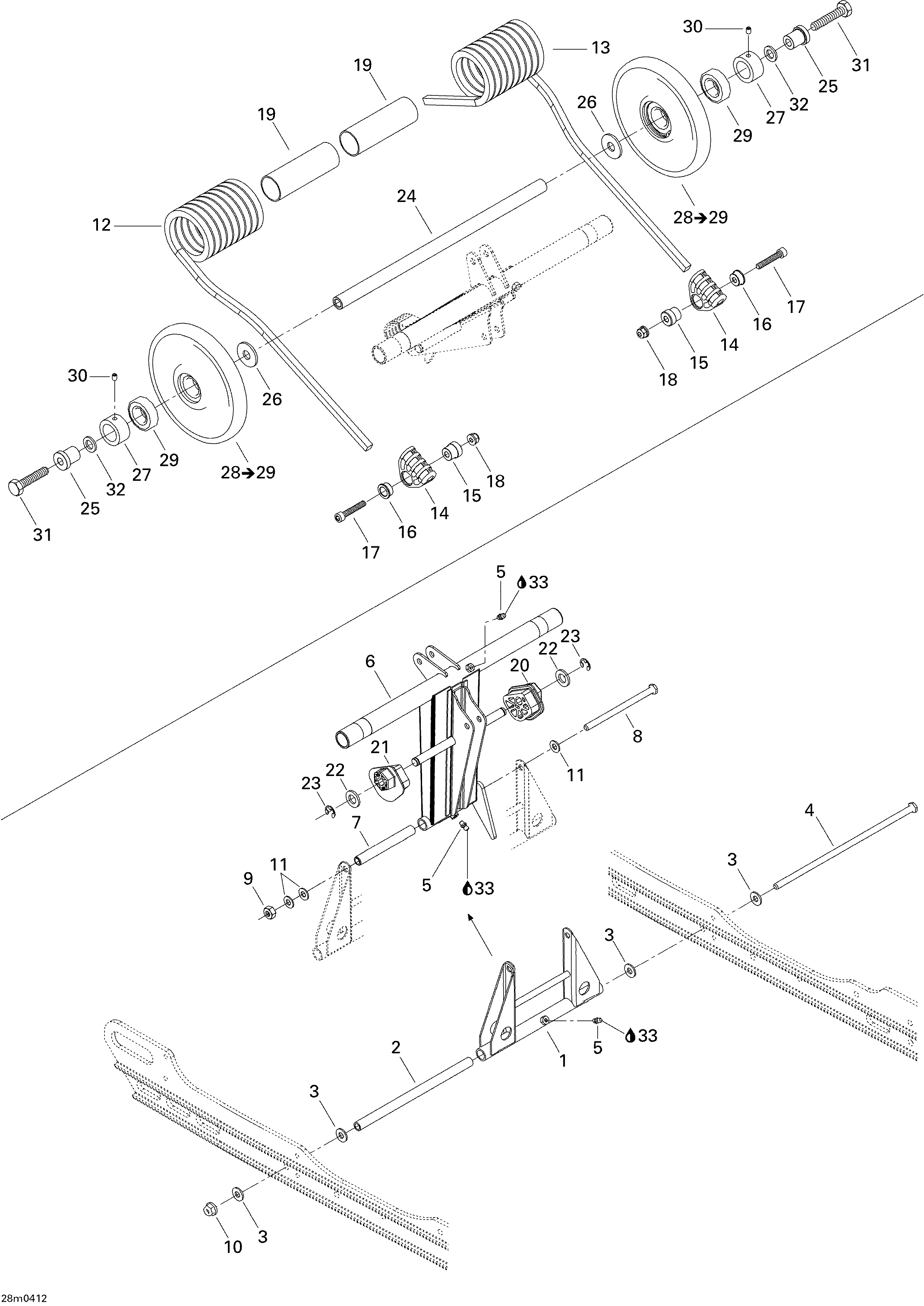

08- Rear Arm для BRP Ski-Doo Summit 800 HO - 2004
-
№АртикулНазвание
-
1503189793 Pivot ArmPivot Arm
-
2503189156 Pivot Arm AxlePivot Arm Axle
-
3503189157 WasherWasher
-
4732601198 Bolt M8 (Long)Bolt M8 (Long)
-
5408200700 Grease FittingGrease Fitting
-
6503190552 Rear ArmRear Arm
-
7503144300 Upper Axle (Pivot Arm)Upper Axle (Pivot Arm)
-
8732601197 Short Bolt M8Short Bolt M8
-
9232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
10233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
11234081410 Flat Washer 8 mmFlat Washer 8 mm
-
12503190329 RH Spring (Square). Adrenaline, Sport & HighmarkRH Spring (Square). Adrenaline, Sport & Highmark
-
503190492 RH Spring (Square). Adrenaline EuropeRH Spring (Square). Adrenaline Europe
-
503190329 RH Spring (Square). X, Highmark X & HM XtremeRH Spring (Square). X, Highmark X & HM Xtreme
-
503190492 RH Spring (Square). X EuropeRH Spring (Square). X Europe
-
13503190331 LH Spring (Square). Adrenaline, Sport & HighmarkLH Spring (Square). Adrenaline, Sport & Highmark
-
503190494 LH Spring (Square). Adrenaline EuropeLH Spring (Square). Adrenaline Europe
-
503190331 LH Spring (Square). X, Highmark X & HM XtremeLH Spring (Square). X, Highmark X & HM Xtreme
-
503190494 LH Spring (Square). X EuropeLH Spring (Square). X Europe
-
14503189657 Spring SupportSpring Support
-
15503188934 Spring Axle GuideSpring Axle Guide
-
16503188929 Cushion RetainerCushion Retainer
-
17205084544 Socket Head Screw M8 X 45Socket Head Screw M8 X 45
-
18233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
19503190333 BushingBushing
-
20503190023 LH Spring CamLH Spring Cam
-
21503190022 RH Spring CamRH Spring Cam
-
22234021410 Flat Washer 12 mmFlat Washer 12 mm
-
23293370013 CirclipCirclip
-
24503190387 ShaftShaft
-
25503189324 CushionCushion
-
26503190328 WasherWasher
-
27503168800 Retaining RingRetaining Ring
-
28503190269 Wheel 165 Ass'Y. Includes items 28 to 29Wheel 165 Ass'Y. Includes items 28 to 29
-
29503189567 Ball Bearing 6205Ball Bearing 6205
-
30206260844 Socket Set Screw M6 X 8Socket Set Screw M6 X 8
-
31207205544 Hex Screw M10 X 55 (Scotch Grip)Hex Screw M10 X 55 (Scotch Grip)
-
32503189564 WasherWasher
-
33219700417 Synthetic Grease, 400gSynthetic Grease, 400g
