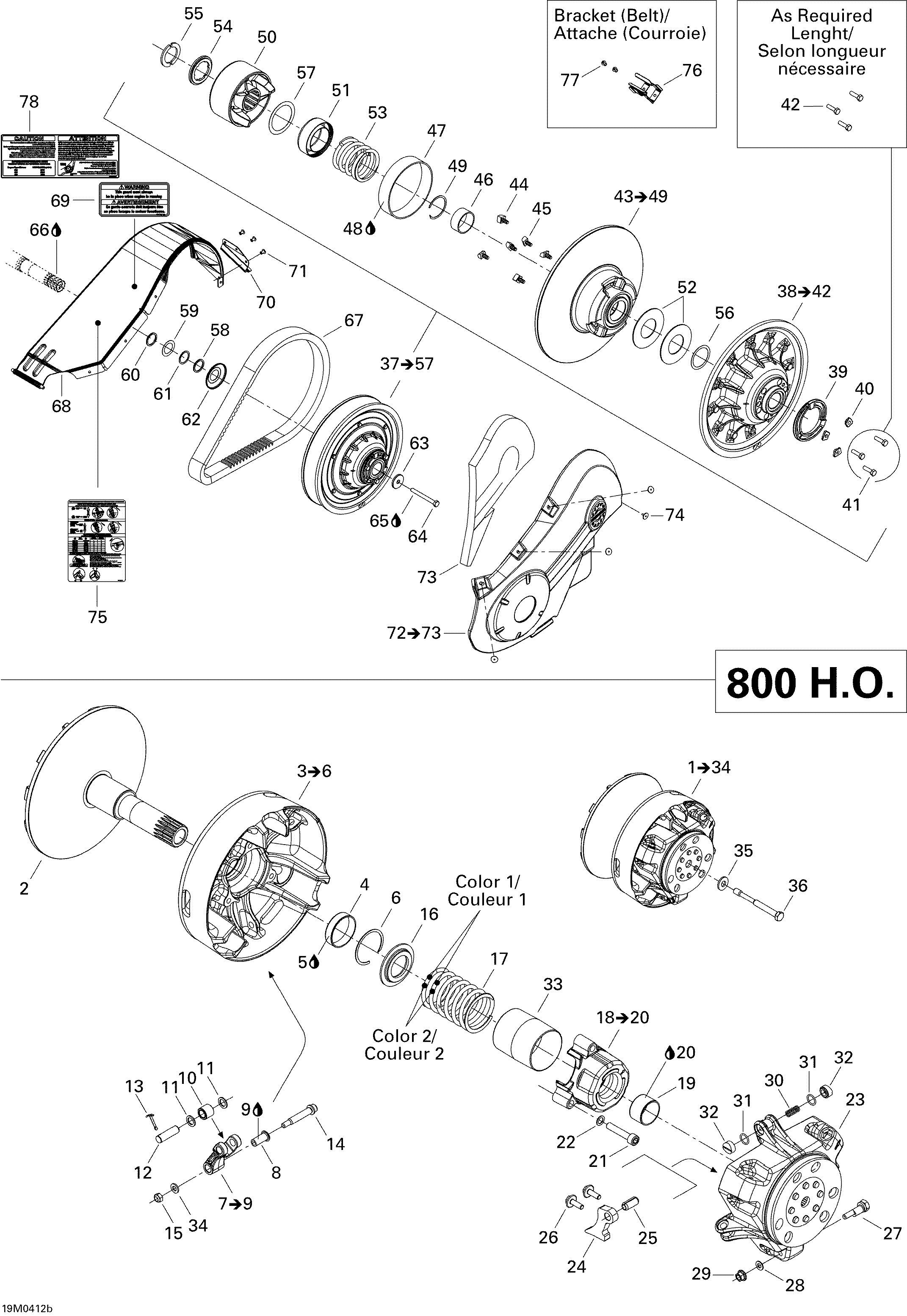

05- Pulley System (800 HO) для BRP Ski-Doo Summit 800 HO - 2004
-
№АртикулНазвание
-
2417222167 Fixed FlangeFixed Flange
-
3417222171 Sliding Flange Ass'Y. Includes items 3 to 6Sliding Flange Ass'Y. Includes items 3 to 6
-
4417006900 BushingBushing
-
5413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
6293370037 CirclipCirclip
-
7417222671 Lever Ass'Y. Includes items 7 to 9Lever Ass'Y. Includes items 7 to 9
-
8417222633 BushingBushing
-
9413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
10417003900 Roller Ass'YRoller Ass'Y
-
11417004302 Stopper WasherStopper Washer
-
12417222594 Pin. 800 H.O. EuropePin. 800 H.O. Europe
-
417222595 Pin. 800 H.O.Pin. 800 H.O.
-
13732958001 Cotter PinCotter Pin
-
14417222028 Screw Ass'YScrew Ass'Y
-
15232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
16417222312 Spring SeatSpring Seat
-
17415015300 Spring (Violet/Yellow)Spring (Violet/Yellow)
-
18417007500 Spring Cover Ass'Y. Includes items 18 to 20Spring Cover Ass'Y. Includes items 18 to 20
-
19417009204 BushingBushing
-
20413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
21205084044 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
22250200009 Lock Washer 8 mmLock Washer 8 mm
-
23417222213 Governor CupGovernor Cup
-
24417222548 Ramp 415. 800 H.O.Ramp 415. 800 H.O.
-
417222508 Ramp 413. 800 H.O. EuropeRamp 413. 800 H.O. Europe
-
25250400009 Rolled Pin M10 X 22Rolled Pin M10 X 22
-
26250000059 Hex Flanged Screw M6 X 18Hex Flanged Screw M6 X 18
-
27417005500 Calibration ScrewCalibration Screw
-
28417005600 WasherWasher
-
29233061414 Elastic Flanged Stop Nut M6Elastic Flanged Stop Nut M6
-
30417005700 SpringSpring
-
31732401030 O-RingO-Ring
-
32417222362 Slider ShoeSlider Shoe
-
33417009205 GuardGuard
-
34234061410 Flat WasherFlat Washer
-
35250200006 Conical Spring Washer 14 mmConical Spring Washer 14 mm
-
36417120000 Drive Pulley BoltDrive Pulley Bolt
-
38417126603 Fixed Flange Ass'Y. Includes 38 to 42Fixed Flange Ass'Y. Includes 38 to 42
-
39415005800 Adjustment RingAdjustment Ring
-
40415005900 Adjustment ShimAdjustment Shim
-
41207162544 Hex Screw M6 X 25Hex Screw M6 X 25
-
42207162244 Hex Screw M6 X 22Hex Screw M6 X 22
-
43417126605 Sliding Flange Ass'Y. Includes items 43 to 49Sliding Flange Ass'Y. Includes items 43 to 49
-
44417126373 Rear Cam Shoe SliderRear Cam Shoe Slider
-
45417126374 Front Cam Shoe SliderFront Cam Shoe Slider
-
47414978100 BushingBushing
-
48413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
49371911200 CirclipCirclip
-
50417126445 Cam Ass'Y. 800 H.O. Adrenaline, Sport, Highmark, X & Highmark XCam Ass'Y. 800 H.O. Adrenaline, Sport, Highmark, X & Highmark X
-
417126830 Cam Ass'Y. 800 H.O. HM XtremeCam Ass'Y. 800 H.O. HM Xtreme
-
417126830 Cam Ass'Y. 800 H.O. X EuropeCam Ass'Y. 800 H.O. X Europe
-
51417126381 GuardGuard
-
52504099600 Thrust WasherThrust Washer
-
53414978300 Release Spring. 800 H.O.Release Spring. 800 H.O.
-
417126687 Release Spring (Black). 800 H.O. X EuropeRelease Spring (Black). 800 H.O. X Europe
-
54417126733 SpacerSpacer
-
55417126734 Half KeyHalf Key
-
56504112300 ShimShim
-
57417126322 Swivel AbutmentSwivel Abutment
-
58417300231 SpacerSpacer
-
59417300054 SpacerSpacer
-
60417300231 Spacer. 800 H.O.Spacer. 800 H.O.
-
61504112000 ShimShim
-
62417300238 Protector. 800 H.O.Protector. 800 H.O.
-
63517302322 WasherWasher
-
64207087544 Hex Screw M8 X 75Hex Screw M8 X 75
-
65293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
66293800070 Loctite 767, Antiseize, 8 OzLoctite 767, Antiseize, 8 Oz
-
67417300166 Drive Belt. 800 H.O.Drive Belt. 800 H.O.
-
68417300213 Belt GuardBelt Guard
-
69516001190 Warning LabelWarning Label
-
70417300216 Belt Guard BracketBelt Guard Bracket
-
71390402200 Rivet 3/16''Rivet 3/16''
-
72417300248 Side Protector Ass'Y. Includes items 72 to 73Side Protector Ass'Y. Includes items 72 to 73
-
73417300246 FoamFoam
-
74293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
75516001639 Suspension Adjustment DecalSuspension Adjustment Decal
-
76517281905 BracketBracket
-
77390402200 Rivet 3/16''Rivet 3/16''
-
78516001232 Instruction Label. Canada / U.S.A.Instruction Label. Canada / U.S.A.
