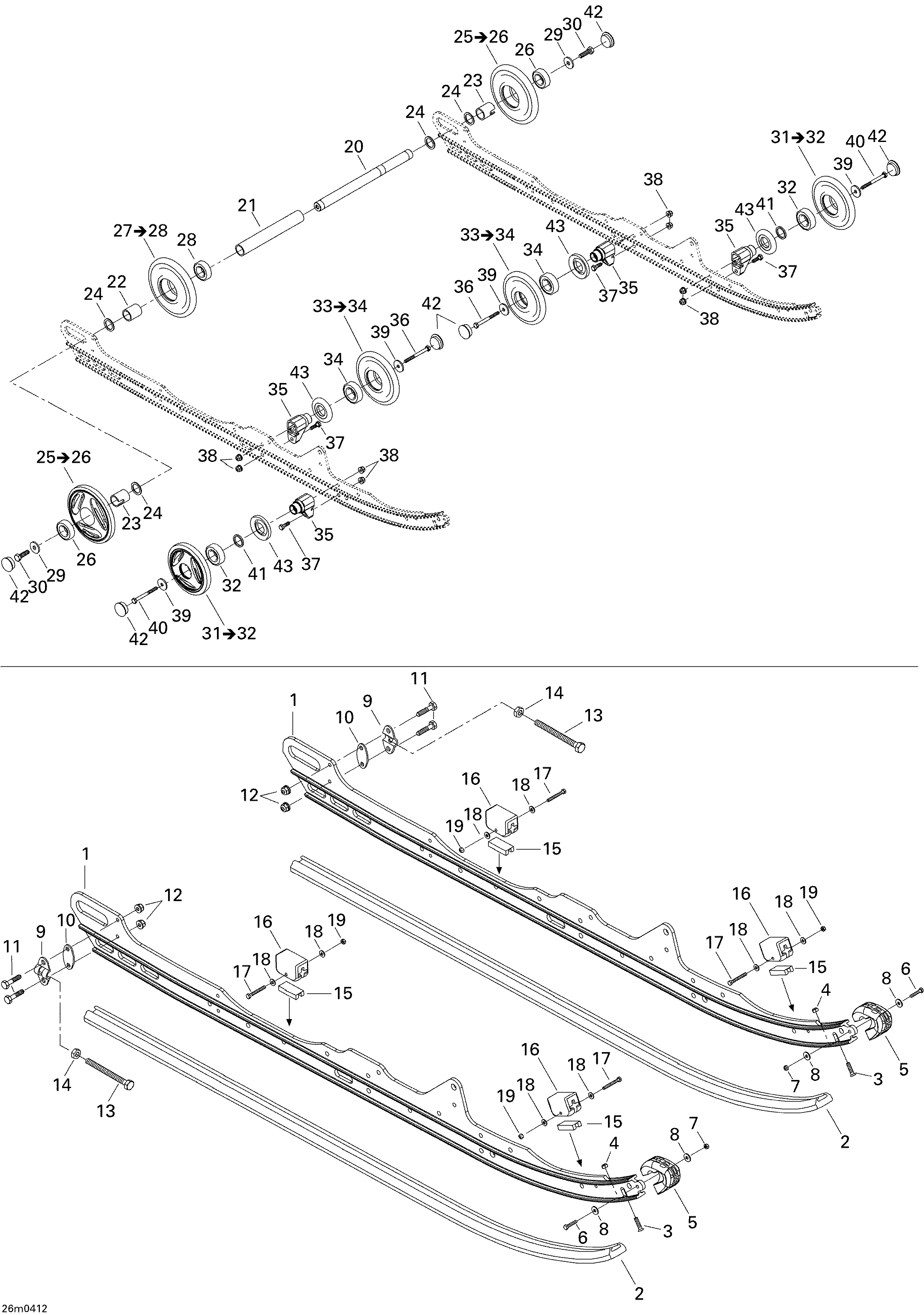

08- Rear Suspension для BRP Ski-Doo Summit 800 HO - 2004
-
№АртикулНазвание
-
1503190278 Runner (144''). AdrenalineRunner (144''). Adrenaline
-
503190411 Runner (151''). Sport & HighmarkRunner (151''). Sport & Highmark
-
503190402 Runner (144''). XRunner (144''). X
-
503190347 Runner (151''). Highmark XRunner (151''). Highmark X
-
503190360 Runner (159''). HM XtremeRunner (159''). HM Xtreme
-
2503190413 Rail (144''). AdrenalineRail (144''). Adrenaline
-
503190415 Rail (151''). Sport & HighmarkRail (151''). Sport & Highmark
-
503190280 Rail (144''). XRail (144''). X
-
503190383 Rail (151''). Highmark XRail (151''). Highmark X
-
503190370 Rail (159''). HM XtremeRail (159''). HM Xtreme
-
3208562560 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
4232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
5572075400 Runner ProtectorRunner Protector
-
6207152544 Hex Screw M5 X 25Hex Screw M5 X 25
-
7232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
8391301600 WasherWasher
-
9503155300 TensionerTensioner
-
10503189160 Tensioner SpacerTensioner Spacer
-
11207063044 Hex Screw M6 X 30Hex Screw M6 X 30
-
12233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
13230100044 Hex Screw M10 X 100Hex Screw M10 X 100
-
14233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
15572084800 Stopper ReinforcementStopper Reinforcement
-
16570063000 Rubber StopperRubber Stopper
-
17207054044 Hex Screw M5 X 40Hex Screw M5 X 40
-
18391301700 WasherWasher
-
19232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
20503160700 Rear AxleRear Axle
-
21503183000 Spacer (Long)Spacer (Long)
-
22503182900 Inner Spacer (Short)Inner Spacer (Short)
-
23503189809 Outer SpacerOuter Spacer
-
24503180400 WasherWasher
-
25503190231 Wheel 180 Ass'Y (Yellow). Includes items 25 to 26Wheel 180 Ass'Y (Yellow). Includes items 25 to 26
-
26503189567 Ball Bearing 6205Ball Bearing 6205
-
27503190232 Wheel 180 Ass'Y (Black). Includes items 27 to 28Wheel 180 Ass'Y (Black). Includes items 27 to 28
-
28503189567 Ball Bearing 6205Ball Bearing 6205
-
29503183300 WasherWasher
-
30250000019 Hex Screw With NylonHex Screw With Nylon
-
31503190212 Wheel 139 (Yellow). Includes items 31 to 32Wheel 139 (Yellow). Includes items 31 to 32
-
32503189567 Ball Bearing 6205Ball Bearing 6205
-
33503190213 Wheel 139. Includes items 33 to 34Wheel 139. Includes items 33 to 34
-
34503189567 Ball Bearing 6205Ball Bearing 6205
-
35503190389 SupportSupport
-
36207088044 Hex Screw M8 X 80Hex Screw M8 X 80
-
37207182544 Hex Screw M8 X 25Hex Screw M8 X 25
-
38233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
39503183100 WasherWasher
-
40207088544 Hex Screw M8 X 85Hex Screw M8 X 85
-
41503173700 WasherWasher
-
42570063600 Wheel CapWheel Cap
-
43572089000 Labyrinth SealLabyrinth Seal
