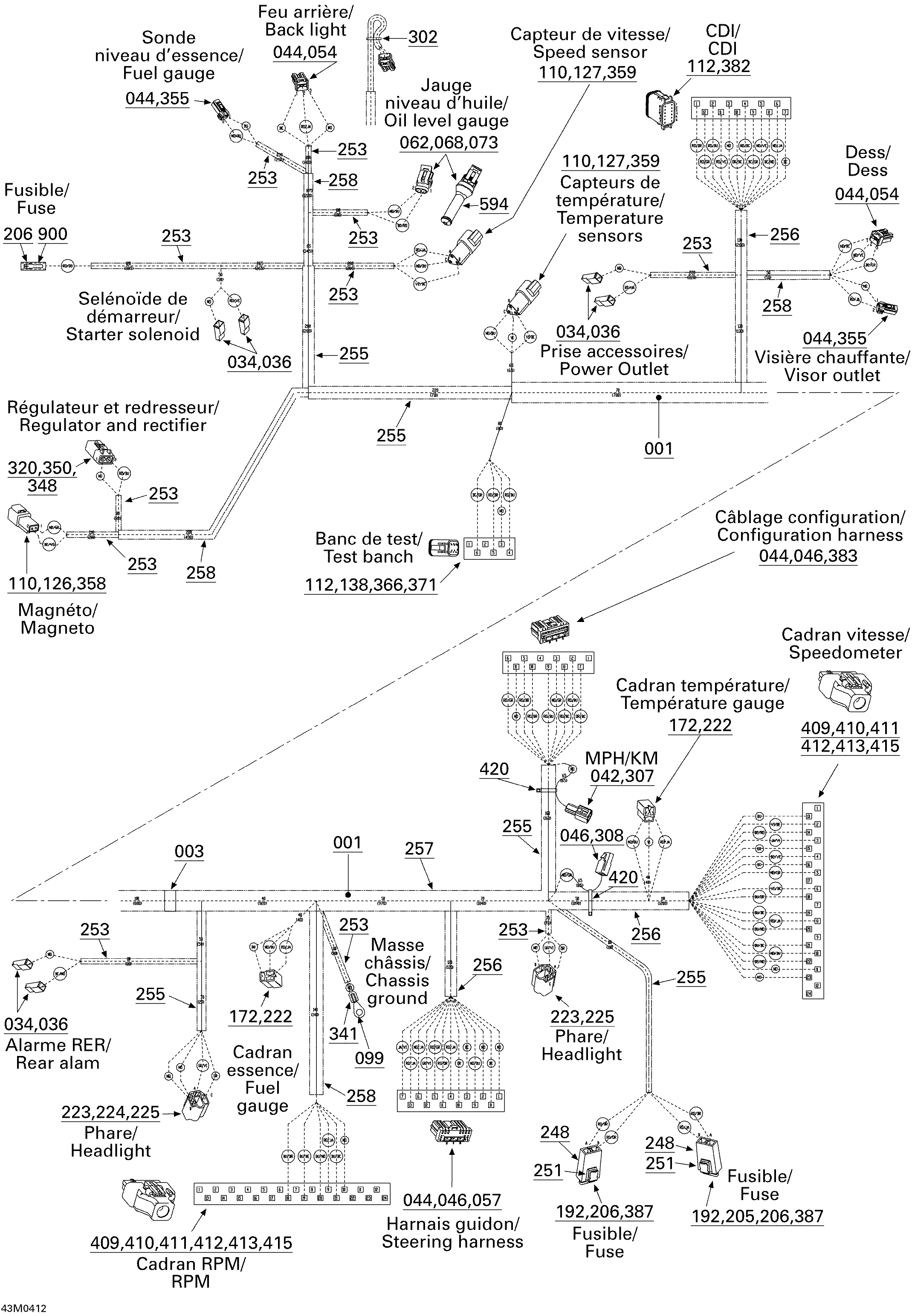

10- Frame Harness для BRP Ski-Doo Summit 800 HO - 2004
-
№АртикулНазвание
-
1515175989 Frame Harness. Includes items 1 to 900Frame Harness. Includes items 1 to 900
-
003515175312 Blue Coding Vinyl TapeBlue Coding Vinyl Tape
-
034409010100 Female TerminalFemale Terminal
-
036409010400 Female Terminal Housing (1 Circuit)Female Terminal Housing (1 Circuit)
-
042515175273 Male TerminalMale Terminal
-
044515175231 Female TerminalFemale Terminal
-
046515175282 Female TerminalFemale Terminal
-
054515175495 Female Terminal Housing (3 Circuits)Female Terminal Housing (3 Circuits)
-
057515175350 Female Terminal Housing (13 Circuit)Female Terminal Housing (13 Circuit)
-
062278001014 Female TerminalFemale Terminal
-
068409209500 Female Terminal Housing (2 Circuits)Female Terminal Housing (2 Circuits)
-
073278001013 SealSeal
-
099278000992 Ring TerminalRing Terminal
-
110278000631 Male TerminalMale Terminal
-
112278000632 Female TerminalFemale Terminal
-
126409207500 Male Lock (2 Circuits)Male Lock (2 Circuits)
-
127409207600 Male Lock (3 Circuits)Male Lock (3 Circuits)
-
138293000052 PlugPlug
-
172561503100 Female TerminalFemale Terminal
-
192409003900 Fuse (20 Amperes)Fuse (20 Amperes)
-
205409011600 Female TerminalFemale Terminal
-
206409004200 Female TerminalFemale Terminal
-
222409204300 Female Terminal Housing (3 Circuits)Female Terminal Housing (3 Circuits)
-
223515175320 Female TerminalFemale Terminal
-
224515175321 Female TerminalFemale Terminal
-
225409202700 Female Terminal Housing (3 Circuits)Female Terminal Housing (3 Circuits)
-
248409004000 Fuse HolderFuse Holder
-
251409014200 ClipClip
-
253515175442 Tubing (6 mm)Tubing (6 mm)
-
255409901800 Tubing (13 mm)Tubing (13 mm)
-
256415080000 Tubing (16 mm)Tubing (16 mm)
-
257409901600 Tubing (19 mm)Tubing (19 mm)
-
258415079900 Tubing (10 mm)Tubing (10 mm)
-
302293750001 Tie Rap 94 mmTie Rap 94 mm
-
307515175509 Male Terminal Housing (1 Circuit)Male Terminal Housing (1 Circuit)
-
308515175510 Female Terminal Housing (1 Circuit)Female Terminal Housing (1 Circuit)
-
320515175567 Female TerminalFemale Terminal
-
348278001673 Female Terminal Housing (2 Circuits)Female Terminal Housing (2 Circuits)
-
350278001671 Female Lock (2 Circuits)Female Lock (2 Circuits)
-
355515175658 Female Terminal Housing (2 Circuits)Female Terminal Housing (2 Circuits)
-
358515175665 Male Terminal Housing (2 Circuits)Male Terminal Housing (2 Circuits)
-
359515175666 Male Terminal Housing (3 Circuits)Male Terminal Housing (3 Circuits)
-
366515175673 Female Terminal Housing (6 Circuits)Female Terminal Housing (6 Circuits)
-
371515175678 Female Lock (6 Circuits)Female Lock (6 Circuits)
-
372515175679 Female Lock (12 Circuits)Female Lock (12 Circuits)
-
382515175704 Female Terminal Housing (12 Circuits)Female Terminal Housing (12 Circuits)
-
383515175719 Female Terminal Housing (11 Circuits)Female Terminal Housing (11 Circuits)
-
387293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
409515175812 PlugPlug
-
410515175801 Female Terminal Housing (24 Circuits)Female Terminal Housing (24 Circuits)
-
411515175802 RetainerRetainer
-
412515175803 SealSeal
-
413515175804 HousingHousing
-
415515175806 Female TerminalFemale Terminal
-
420414115200 Tie Rap 180 mmTie Rap 180 mm
-
594515176070 Rubber BootRubber Boot
-
900415079200 HoseHose
