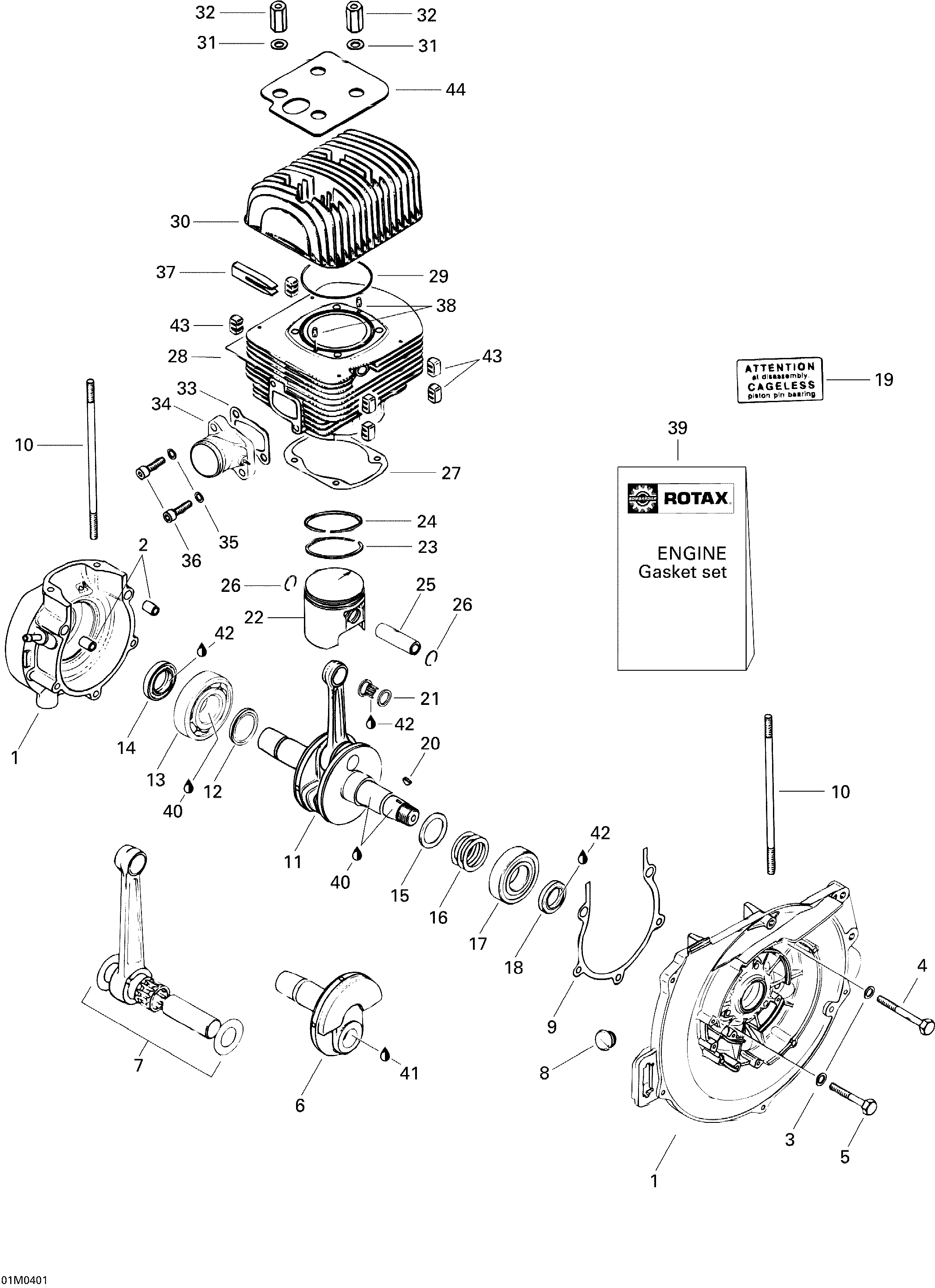

01- Crankcase And Cylinder для BRP Ski-Doo Tundra R - 2004
-
№АртикулНазвание
-
1420886709 Crankcase. 1 to 5Crankcase. 1 to 5
-
2420229150 StudStud
-
3420945752 Lock Washer 8 mmLock Washer 8 mm
-
4207087544 Hex. Screw M8 x 75Hex. Screw M8 x 75
-
5207085596 Hex. Screw M8 x 55Hex. Screw M8 x 55
-
6420919951 Half Crankshaft, PTO SideHalf Crankshaft, PTO Side
-
8420860962 Cable GrommetCable Grommet
-
9420850060 Crankcase GasketCrankcase Gasket
-
10420840620 Stud M8 x 175Stud M8 x 175
-
11420995301 CrankshaftCrankshaft
-
12420827440 Distance Ring, PTO SideDistance Ring, PTO Side
-
13420932571 Ball Bearing 6306, PTO SideBall Bearing 6306, PTO Side
-
14420850050 Seal, PTO SideSeal, PTO Side
-
15420827440 Distance Ring, MAG SideDistance Ring, MAG Side
-
16420944582 Shim 0.3 mmShim 0.3 mm
-
16420944583 Shim 0.1 mmShim 0.1 mm
-
16420944584 Shim 0.5 mmShim 0.5 mm
-
16420944586 Shim 0.2 mmShim 0.2 mm
-
17420932581 Ball Bearing, MAG SideBall Bearing, MAG Side
-
18420230425 Seal, MAG SideSeal, MAG Side
-
19420897280 Cageless LabelCageless Label
-
20420246055 Woodruff Key 3 x 3.7Woodruff Key 3 x 3.7
-
21420832320 Needle BearingNeedle Bearing
-
22420888175 Piston with 2 Rings, 71.92 mm. 22 to 24Piston with 2 Rings, 71.92 mm. 22 to 24
-
22420888176 Piston with 2 Rings, 72.17 mmPiston with 2 Rings, 72.17 mm
-
22420888177 Piston with 2 Rings, 72.42 mmPiston with 2 Rings, 72.42 mm
-
23420915850 Rectangular Ring, 72.0 mmRectangular Ring, 72.0 mm
-
23420915851 Rectangular Ring, 72.25 mmRectangular Ring, 72.25 mm
-
23420915852 Rectangular Ring, 72.5 mmRectangular Ring, 72.5 mm
-
24420815200 Semi-Trapezoidal Ring, 72.0 mmSemi-Trapezoidal Ring, 72.0 mm
-
24420815201 Semi-Trapezoidal Ring, 72.25 mmSemi-Trapezoidal Ring, 72.25 mm
-
24420815202 Semi-Trapezoidal Ring, 72.5 mmSemi-Trapezoidal Ring, 72.5 mm
-
25420916186 Gudgeon PinGudgeon Pin
-
26420945735 CirclipCirclip
-
27420831858 Gasket 0.4 mmGasket 0.4 mm
-
28420913219 Cylinder with SleeveCylinder with Sleeve
-
29293300026 O-RingO-Ring
-
30420823788 Cylinder HeadCylinder Head
-
31420250311 Washer 8.4 mmWasher 8.4 mm
-
32420842010 Hex. Distance Nut M8 x 27.5Hex. Distance Nut M8 x 27.5
-
33420831861 Intake Manifold Gasket 2.0 mmIntake Manifold Gasket 2.0 mm
-
34420867408 Intake ManifoldIntake Manifold
-
35420945752 Lock Washer 8 mmLock Washer 8 mm
-
36205083044 Socket Head Screw M8 x 30Socket Head Screw M8 x 30
-
37420860100 Rubber FinRubber Fin
-
38420929650 Drive Pin 5 x 10Drive Pin 5 x 10
-
39420992068 Engine Gasket SetEngine Gasket Set
-
40293800070 Loctite 76732, Antiseize Lubricant, 8 ozLoctite 76732, Antiseize Lubricant, 8 oz
-
41413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
42413707000 Molykote 111Molykote 111
-
43420860097 Noise DamperNoise Damper
-
44420960130 Silent BlockSilent Block
