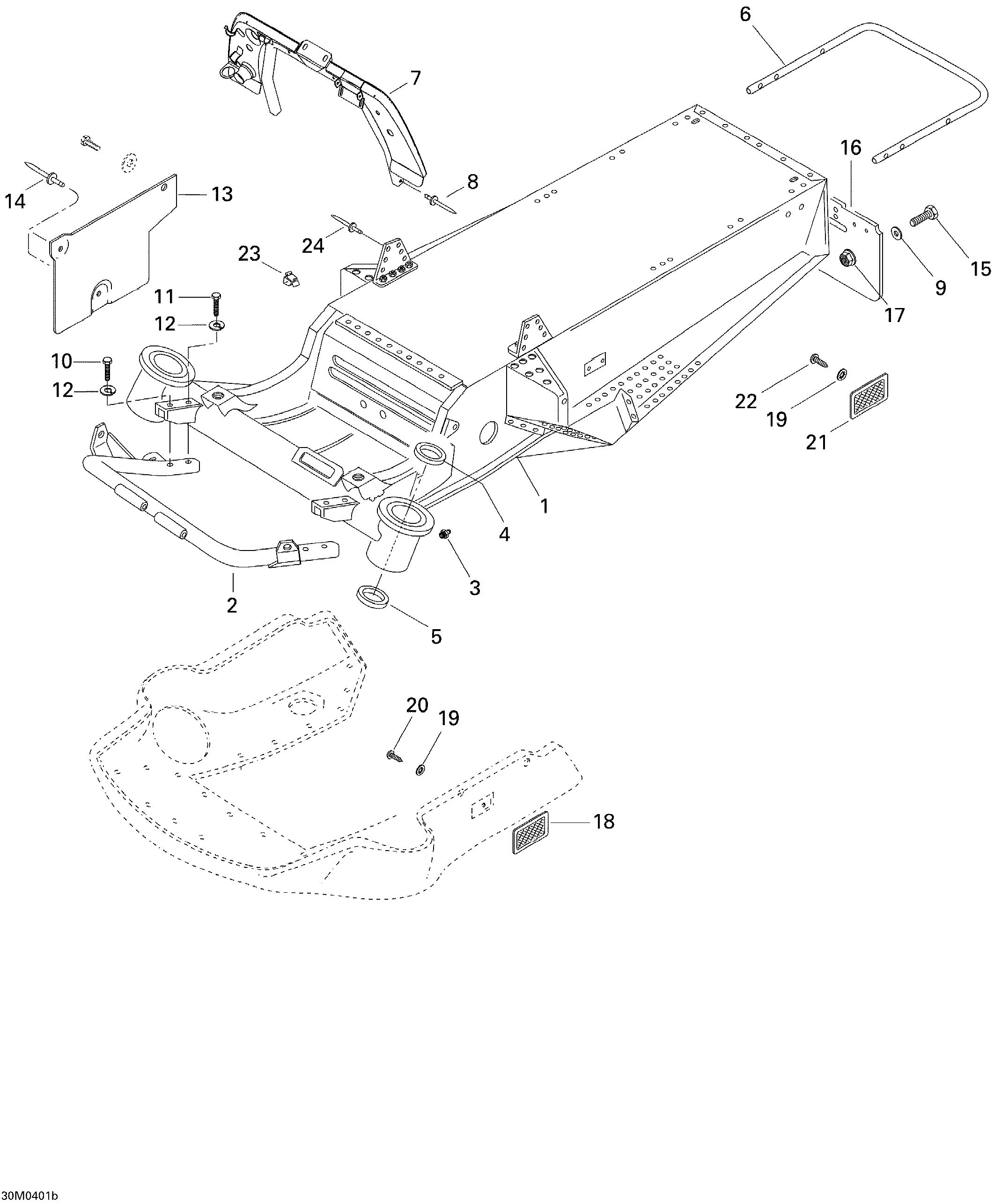

09- Frame для BRP Ski-Doo Tundra R - 2004
-
№АртикулНазвание
-
1518323484 Frame Ass'yFrame Ass'y
-
2518320200 Front BumperFront Bumper
-
3408200700 Grease FittingGrease Fitting
-
4414803100 Upper Cushion. (see Front Susp and Ski)Upper Cushion. (see Front Susp and Ski)
-
5414803200 Lower Cushion. (see Front Susp and Ski)Lower Cushion. (see Front Susp and Ski)
-
6517170700 Rear Bumper. (see Seat and Acc)Rear Bumper. (see Seat and Acc)
-
7518322990 Upper Column SupportUpper Column Support
-
8293150117 Rivet 1/4''Rivet 1/4''
-
9517124300 WasherWasher
-
10207063544 Hex. Flanged Screw M6 X 35Hex. Flanged Screw M6 X 35
-
11207162544 Hex. Screw M6 x 25Hex. Screw M6 x 25
-
12234161471 Lock Washer 6 mmLock Washer 6 mm
-
13517299300 Heat ShieldHeat Shield
-
14293150102 Rivet (Black)Rivet (Black)
-
15207152044 Hex. Screw M5 x 20Hex. Screw M5 x 20
-
16572013800 Snow GuardSnow Guard
-
17233251414 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
18414510200 Amber ReflectorAmber Reflector
-
19234451418 External Tooth Lock Washer 5 mmExternal Tooth Lock Washer 5 mm
-
20208651041 Phillips Screw M5 x 10Phillips Screw M5 x 10
-
21414510100 Red ReflectorRed Reflector
-
22208650841 Phillips Screw M5 x 8Phillips Screw M5 x 8
-
23414227300 ClipClip
-
24390403400 Rivet 1/4''Rivet 1/4''
