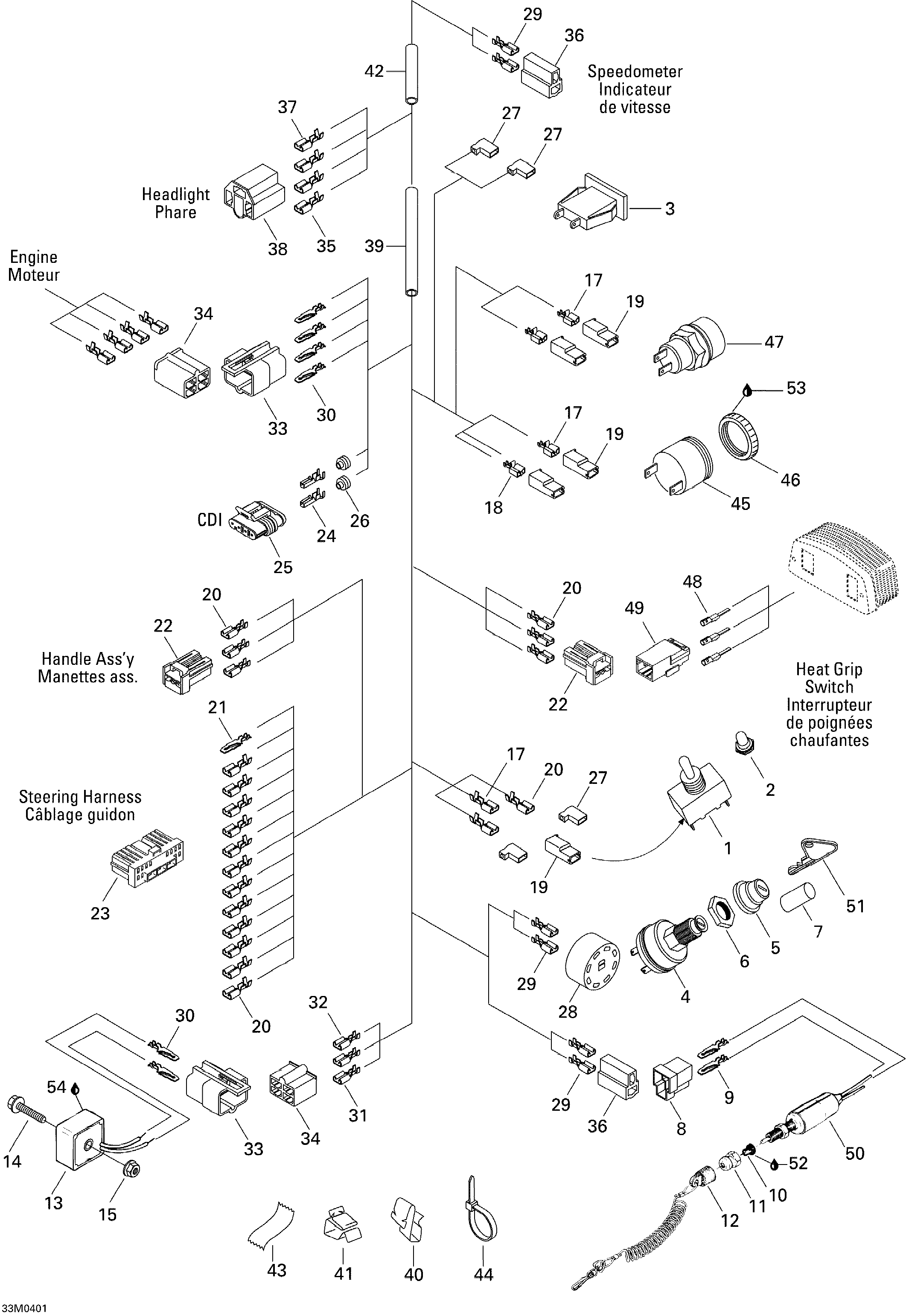

10- Electrical System для BRP Ski-Doo Tundra R - 2004
-
№АртикулНазвание
-
1410107300 Switch (Heating Grip)Switch (Heating Grip)
-
2515175281 Switch CoverSwitch Cover
-
3410113400 Pilot Lamp (Reverse)Pilot Lamp (Reverse)
-
4410113601 Ignition SwitchIgnition Switch
-
5410112100 Face NutFace Nut
-
6570013700 BootBoot
-
7415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
8409204500 Male Connector HousingMale Connector Housing
-
9409210000 Male TerminalMale Terminal
-
10570151100 Plunger CapPlunger Cap
-
11515145900 Switch NutSwitch Nut
-
12515151500 Switch CapSwitch Cap
-
13515163800 Voltage RegulatorVoltage Regulator
-
14207063544 Hex. Flanged Screw M6 X 35Hex. Flanged Screw M6 X 35
-
15233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
16515175835 Frame Harness. 16 to 39Frame Harness. 16 to 39
-
17409010100 Female TerminalFemale Terminal
-
18409010600 Female TerminalFemale Terminal
-
19409010400 Female HousingFemale Housing
-
20515175231 Female TerminalFemale Terminal
-
21515175282 Female TerminalFemale Terminal
-
22515175495 Female HousingFemale Housing
-
23515175350 Female HousingFemale Housing
-
24278001014 Female TerminalFemale Terminal
-
25409209700 Female HousingFemale Housing
-
26278001013 Wire SealWire Seal
-
27409010300 Female TerminalFemale Terminal
-
28572150700 Ignition Block SwitchIgnition Block Switch
-
29561503100 Female TerminalFemale Terminal
-
30409210100 Male TerminalMale Terminal
-
31515175253 Female TerminalFemale Terminal
-
32515175313 Female TerminalFemale Terminal
-
33409209300 Male HousingMale Housing
-
34409204900 Female HousingFemale Housing
-
35409011500 Female TerminalFemale Terminal
-
36409204600 Female HousingFemale Housing
-
37515175320 Female TerminalFemale Terminal
-
38409202700 Female HousingFemale Housing
-
39409901700 TubingTubing
-
40414095100 ClipClip
-
41414227300 ClipClip
-
42515175442 TubingTubing
-
43293740005 Vinyl Tape 3/4''Vinyl Tape 3/4''
-
44414115200 Tie RapTie Rap
-
45515175931 HornHorn
-
46414805101 Plastic NutPlastic Nut
-
47415101200 Reverse KnobReverse Knob
-
48515175232 Male TerminalMale Terminal
-
49515175494 Male Terminal HousingMale Terminal Housing
-
50515175571 Brake SwitchBrake Switch
-
51414991700 Key BlankKey Blank
-
52293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
53296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
54413707500 Grease Tube LMZ, 400 gGrease Tube LMZ, 400 g
