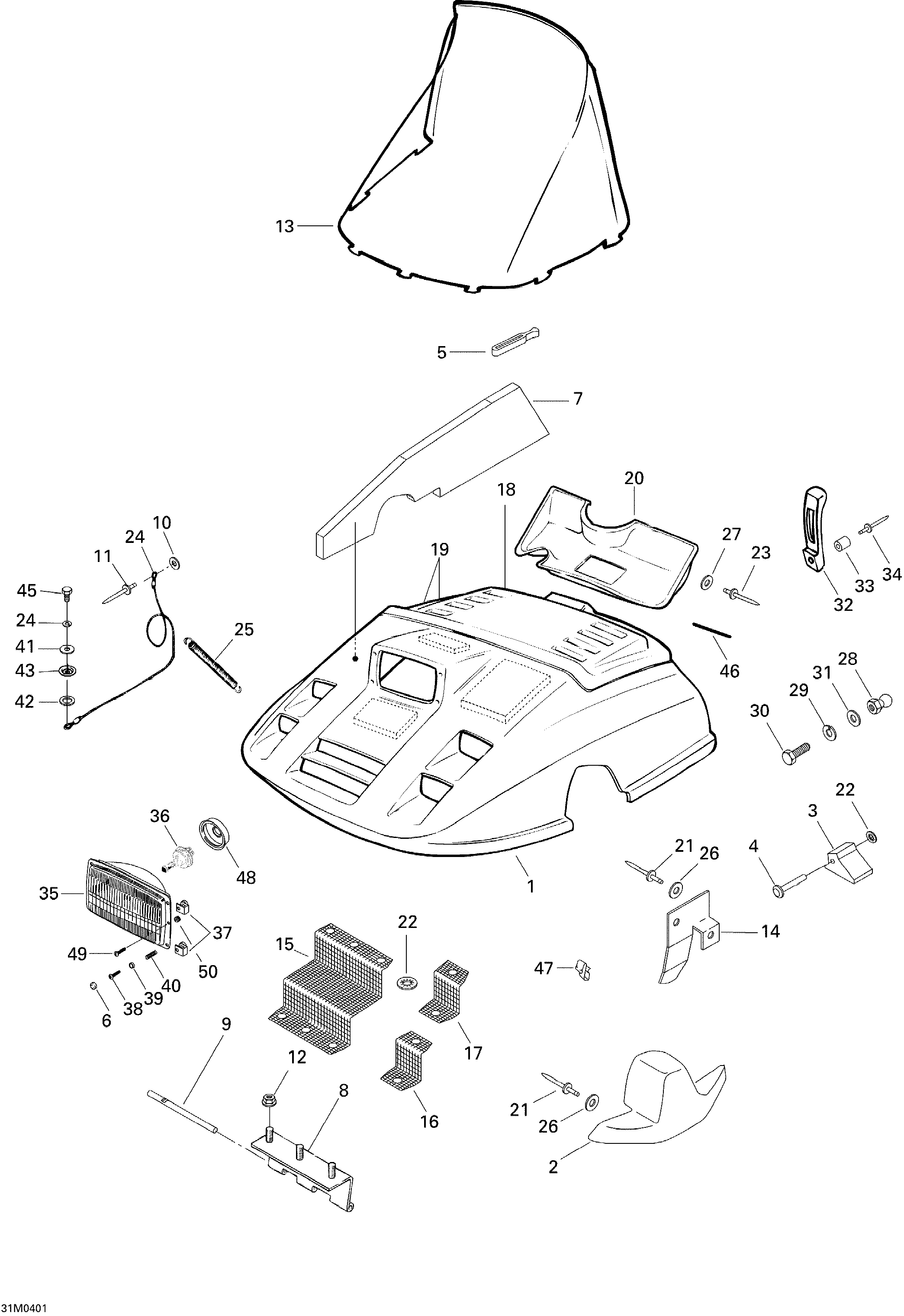

09- Cab, Console для BRP Ski-Doo Tundra R - 2004
-
№АртикулНазвание
-
1572048102 Hood (Yellow)Hood (Yellow)
-
1517302725 Hood (Black)Hood (Black)
-
2572038900 R.H. Cab MouldingR.H. Cab Moulding
-
2572038800 L.H. Cab MouldingL.H. Cab Moulding
-
3570038700 Guide-HoodGuide-Hood
-
4390907000 RivetRivet
-
5570023800 Windshield LatchWindshield Latch
-
6414768500 Yellow Snap CapYellow Snap Cap
-
6414436900 Black Snap CapBlack Snap Cap
-
7517302204 R.H. FoamR.H. Foam
-
7414867100 L.H. FoamL.H. Foam
-
8517182200 Cab HingeCab Hinge
-
9517279800 Pivot AxlePivot Axle
-
10517124300 WasherWasher
-
11390409600 Rivet (Black)Rivet (Black)
-
12233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
13414829400 Windshield.Windshield.
-
14517261300 R.H. Hood GuideR.H. Hood Guide
-
14517251500 L.H. Hood GuideL.H. Hood Guide
-
15517251700 Center Front GrillCenter Front Grill
-
16517251800 Lower Front GrillLower Front Grill
-
17517270600 R.H Upper Front GrillR.H Upper Front Grill
-
17517270700 L.H. Upper Front GrillL.H. Upper Front Grill
-
18414829600 FoamFoam
-
19414829800 Front FoamFront Foam
-
20414804000 Air DuctAir Duct
-
21390407200 RivetRivet
-
22389804300 Push NutPush Nut
-
23390400400 Rivet (Yellow)Rivet (Yellow)
-
23293150121 Rivet (Black)Rivet (Black)
-
24414581400 Cab Retainer CableCab Retainer Cable
-
25414763300 SpringSpring
-
26517225900 Flat WasherFlat Washer
-
27517225900 Flat WasherFlat Washer
-
28517245800 ButtonButton
-
29234151401 Lock Washer 5 mmLock Washer 5 mm
-
30207151444 Hex. Screw M5 x 14Hex. Screw M5 x 14
-
31391301700 Flat WasherFlat Washer
-
32570025900 Hood LatchHood Latch
-
33517245900 BushingBushing
-
34293150108 Pop rivet 3/16''Pop rivet 3/16''
-
35410606800 Headlamp. 35 to 36Headlamp. 35 to 36
-
36410503700 Halogen BulbHalogen Bulb
-
37572378700 Special NutSpecial Nut
-
38243244040 Plastite Phillips Screw M4 x 40Plastite Phillips Screw M4 x 40
-
39414436800 Cap RetainerCap Retainer
-
40517166000 SpringSpring
-
41234081410 Flat Washer 8,4 mmFlat Washer 8,4 mm
-
42420960860 Rubber WasherRubber Washer
-
43420827140 Cowl CoverCowl Cover
-
44420945752 Lock Washer M8Lock Washer M8
-
45207182544 Hex. Screw M8 x 20Hex. Screw M8 x 20
-
46293200017 Neoprene SealNeoprene Seal
-
47414095100 ClipClip
-
48410607100 Protector CapProtector Cap
-
49410603300 Slotted ScrewSlotted Screw
-
50410604400 GrommetGrommet
