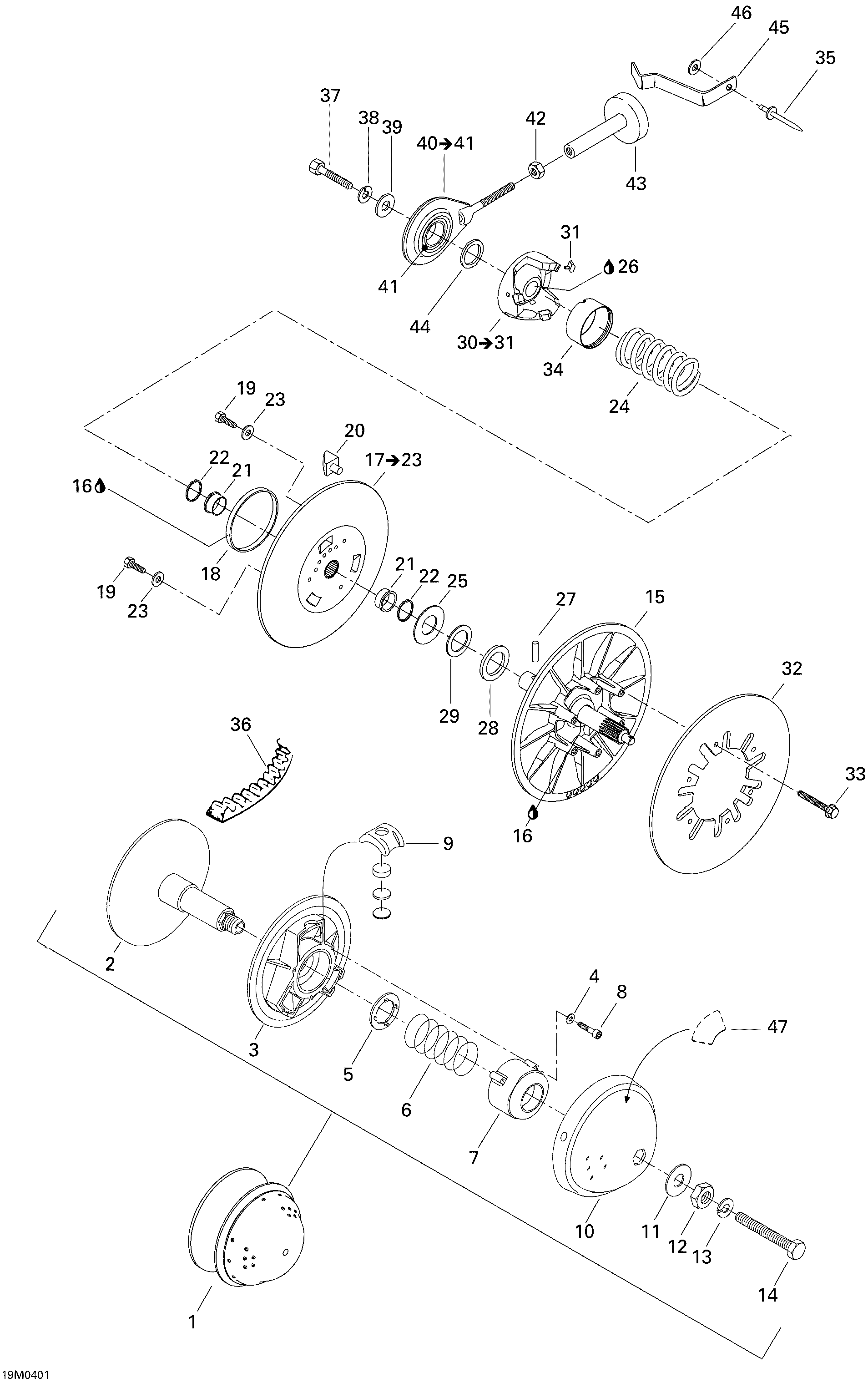

05- Pulley System для BRP Ski-Doo Tundra R - 2004
-
№АртикулНазвание
-
2417126691 Inner Fixed FlangeInner Fixed Flange
-
3417126693 Sliding FlangeSliding Flange
-
4420245370 WasherWasher
-
5417126694 Spring SeatSpring Seat
-
6414817500 SpringSpring
-
7417126622 Spring CoverSpring Cover
-
8205064086 Socket Head Screw M6 x 40Socket Head Screw M6 x 40
-
9417126695 UnitUnit
-
10417126697 CapCap
-
11417122400 Retainer WasherRetainer Washer
-
12417118300 NutNut
-
13392002800 Lock Spring WasherLock Spring Washer
-
14417113800 Drive Pulley BoltDrive Pulley Bolt
-
15417124500 Flange Fixe Ass'yFlange Fixe Ass'y
-
16413703100 Loctite 609, 10 ccLoctite 609, 10 cc
-
17417126702 Sliding Flange Ass'y. 17 to 23Sliding Flange Ass'y. 17 to 23
-
18417126397 BushingBushing
-
19210251180 Hex. Forming Screw M5 x 11Hex. Forming Screw M5 x 11
-
20415099400 Back Cam ShoeBack Cam Shoe
-
22371911100 CirclipCirclip
-
23399910000 Flat WasherFlat Washer
-
24415094300 Release Spring (Yellow)Release Spring (Yellow)
-
25504150400 Thrust WasherThrust Washer
-
26293800070 Loctite 767, Antiseize Lubricant, 8 ozLoctite 767, Antiseize Lubricant, 8 oz
-
27372900500 Dowel PinDowel Pin
-
28504112000 ShimShim
-
29504108200 ShimShim
-
30417126350 Outer Cam Ass'y. 30 to 31Outer Cam Ass'y. 30 to 31
-
31415094400 Cam Slider ShoeCam Slider Shoe
-
32507032100 Brake DiskBrake Disk
-
33210261680 Forming Hex. Screw M6 x 16Forming Hex. Screw M6 x 16
-
34417126349 ProtectorProtector
-
35390402500 Pop Rivet 1/8''Pop Rivet 1/8''
-
36414827600 Drive BeltDrive Belt
-
37207181644 Hex. Screw M8 x 16Hex. Screw M8 x 16
-
38234181401 Lock Washer 8 mmLock Washer 8 mm
-
39517078700 WasherWasher
-
40580593000 Driven Pulley Support Ass'y. 40 to 41Driven Pulley Support Ass'y. 40 to 41
-
41405401000 Ball BearingBall Bearing
-
42232081414 Hex. Nut M8Hex. Nut M8
-
43570028300 Rod RetainerRod Retainer
-
44504003900 SpacerSpacer
-
45414831800 SpringSpring
-
46391300800 Flat WasherFlat Washer
-
47516001247 Security LabelSecurity Label
