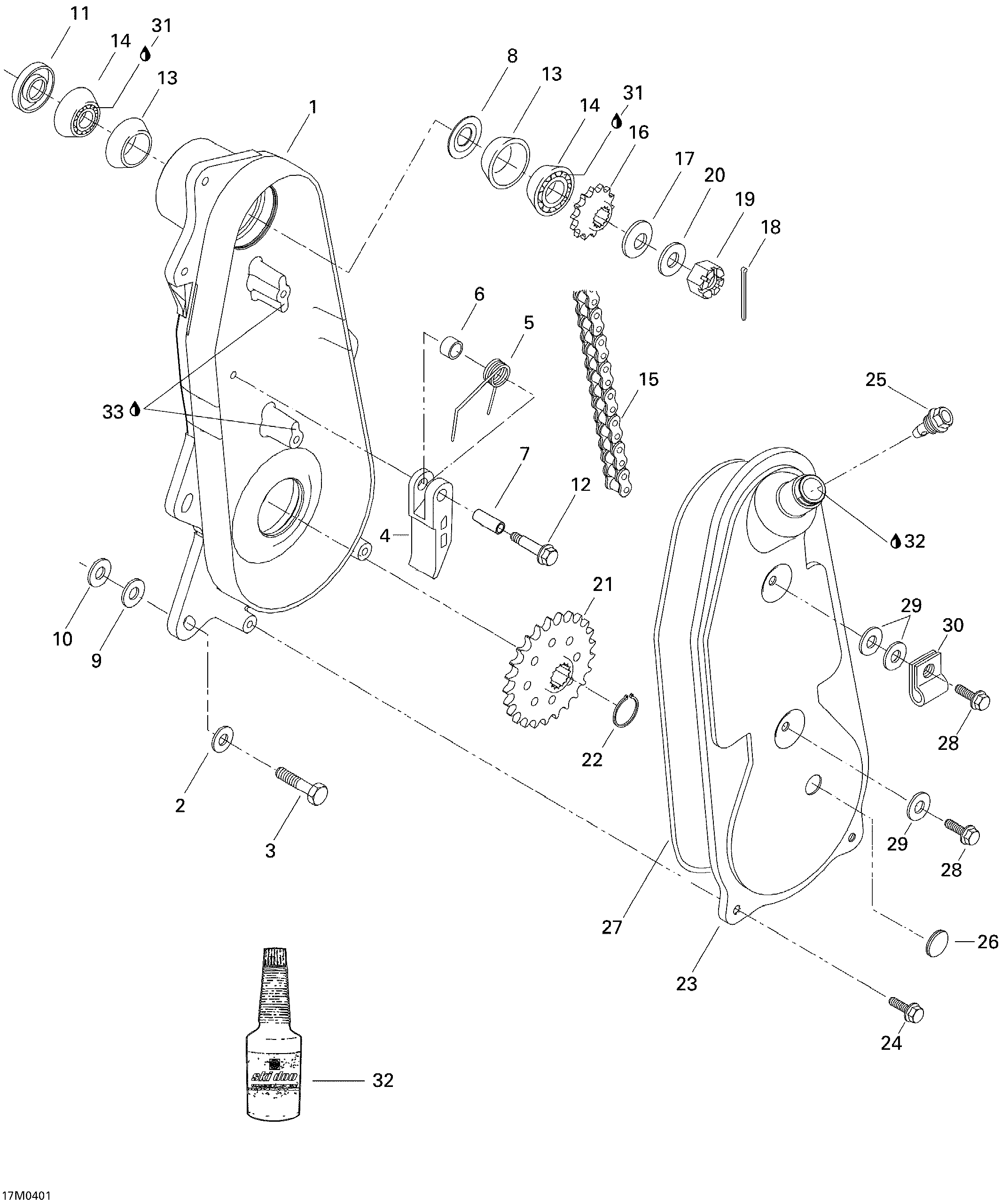

05- Chaincase для BRP Ski-Doo Tundra R - 2004
-
№АртикулНазвание
-
1504088000 ChaincaseChaincase
-
2506151245 WasherWasher
-
3207182544 Hex. Screw M8 x 25Hex. Screw M8 x 25
-
4572041600 Chain TensionerChain Tensioner
-
5414130600 SpringSpring
-
6504018200 SpacerSpacer
-
7504051600 SpacerSpacer
-
8504005800 Oil DeflectorOil Deflector
-
9504073700 WasherWasher
-
10250200001 Flat Washer 7/16''Flat Washer 7/16''
-
11406300600 Oil SealOil Seal
-
12210264080 Forming Hex. Screw M6 x 40Forming Hex. Screw M6 x 40
-
13405000300 Bearing CupBearing Cup
-
14405000400 Conical Ball BearingConical Ball Bearing
-
15412106300 Driving Chain, Single Pitch, 62 LinksDriving Chain, Single Pitch, 62 Links
-
16504088500 14 Tooth Single Sprocket14 Tooth Single Sprocket
-
17414823700 WasherWasher
-
18371800800 Cotter PinCotter Pin
-
19232220413 Castle Nut M12Castle Nut M12
-
20504049500 Special WasherSpecial Washer
-
21504088600 25 Tooth Single Sprocket25 Tooth Single Sprocket
-
22371904900 Circlip (Exterior)Circlip (Exterior)
-
23504088100 Chaincase CoverChaincase Cover
-
24210261680 Forming Hex. Screw M6 x 16Forming Hex. Screw M6 x 16
-
25572040600 BreatherBreather
-
26570040600 Chaincase PlugChaincase Plug
-
27570045900 SealSeal
-
28210262080 Forming Hex. Screw M6 x 20Forming Hex. Screw M6 x 20
-
29234062410 Flat Washer 6 mmFlat Washer 6 mm
-
30414351600 ClipClip
-
31219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
32413803300 Synthetic Chaincase Oil (12 x 355 ml)Synthetic Chaincase Oil (12 x 355 ml)
-
33293800066 Sealant Loctite 5900, 300 mlSealant Loctite 5900, 300 ml
