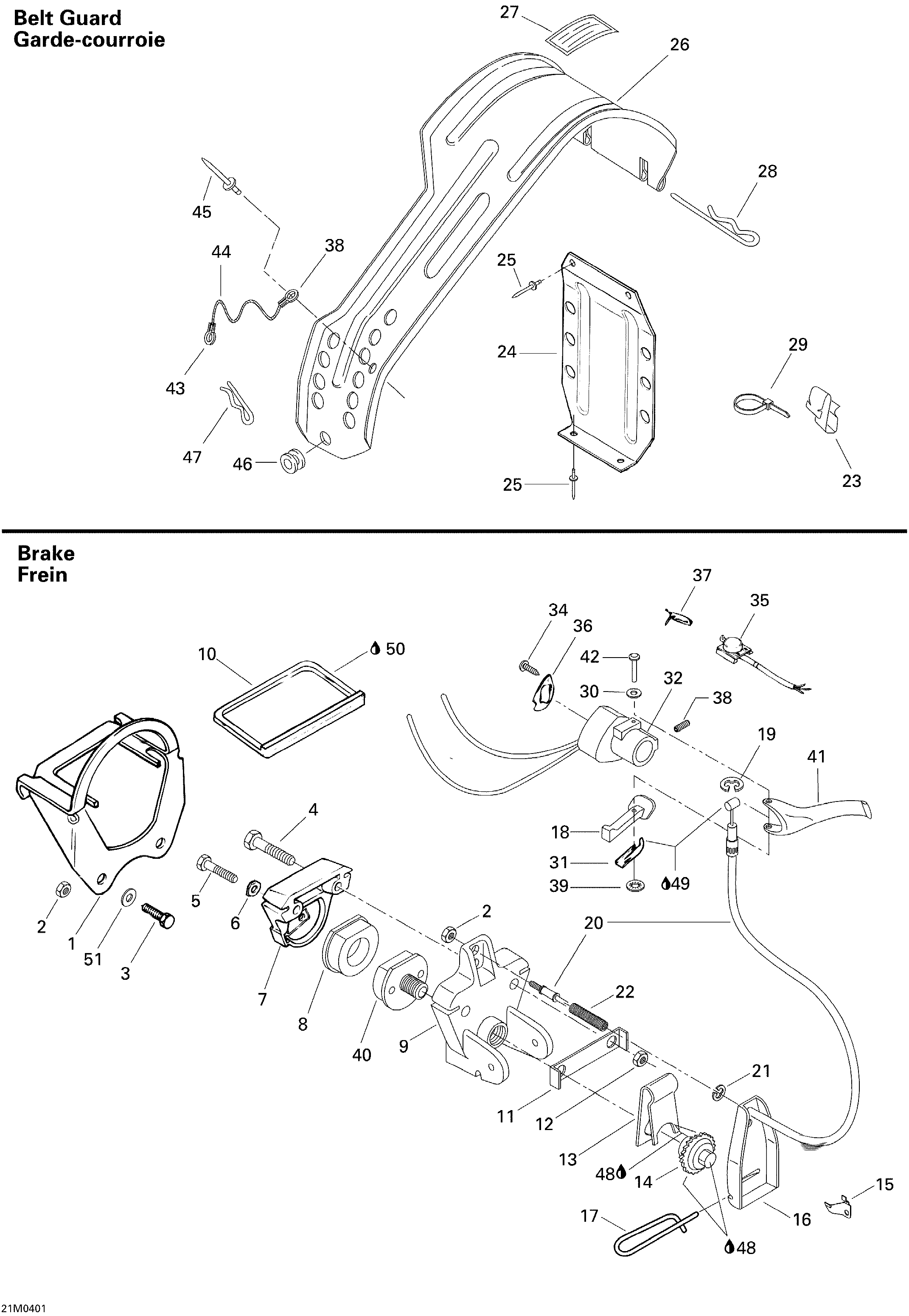

06- Brake для BRP Ski-Doo Tundra R - 2004
-
№АртикулНазвание
-
1507032201 Brake Support (Caliper)Brake Support (Caliper)
-
2232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
3207162544 Hex. Screw M6 x 25Hex. Screw M6 x 25
-
4207085044 Hex. Screw M8 x 50Hex. Screw M8 x 50
-
5207151444 Hex. Screw M5 x 14Hex. Screw M5 x 14
-
6507023600 Lock TabLock Tab
-
7414466800 AnvilAnvil
-
8860700100 Brake PadBrake Pad
-
9507026600 Mobile Brake Lining HolderMobile Brake Lining Holder
-
10572013500 SliderSlider
-
11507020400 Lock TabLock Tab
-
12232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
13507020200 Release SpringRelease Spring
-
14507032310 Ratchet WheelRatchet Wheel
-
15507009400 Rachet SpringRachet Spring
-
16507021500 Brake LeverBrake Lever
-
17507032306 Hair PinHair Pin
-
18572025200 Brake LeverBrake Lever
-
19414274500 Black CirclipBlack Circlip
-
20507032347 Brake Cable and HousingBrake Cable and Housing
-
21371901300 CirclipCirclip
-
22414460600 SpringSpring
-
23414227300 ClipClip
-
25390402400 Pop RivetPop Rivet
-
26417300181 Belt Guard Ass'y (Pulley). 26 to 27Belt Guard Ass'y (Pulley). 26 to 27
-
27516001190 Warning LabelWarning Label
-
28517164600 PinPin
-
29414115200 Tie RapTie Rap
-
30414729400 Spring Wave WasherSpring Wave Washer
-
31507032317 SpringSpring
-
32507032313 Brake Lever. 32 to 38Brake Lever. 32 to 38
-
33572086500 Brake Housing Ass'yBrake Housing Ass'y
-
34414473200 ScrewScrew
-
35415085800 Dimmer SwitchDimmer Switch
-
36507032314 PlatePlate
-
37507032318 Brake SwitchBrake Switch
-
38414440800 Set Screw M8 x10Set Screw M8 x10
-
39389804300 Push NutPush Nut
-
40860700700 Brake PadBrake Pad
-
41572025700 Brake HandleBrake Handle
-
42517229400 PinPin
-
43561502800 Open BarrelOpen Barrel
-
45293150102 Pop Rivet (Black)Pop Rivet (Black)
-
46414036300 GrommetGrommet
-
47414575600 Hair PinHair Pin
-
48293800070 Loctite 76732, Antiseize Lubricant, 8 ozLoctite 76732, Antiseize Lubricant, 8 oz
-
49293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
50219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
51234061410 Flat Washer 6 mmFlat Washer 6 mm
