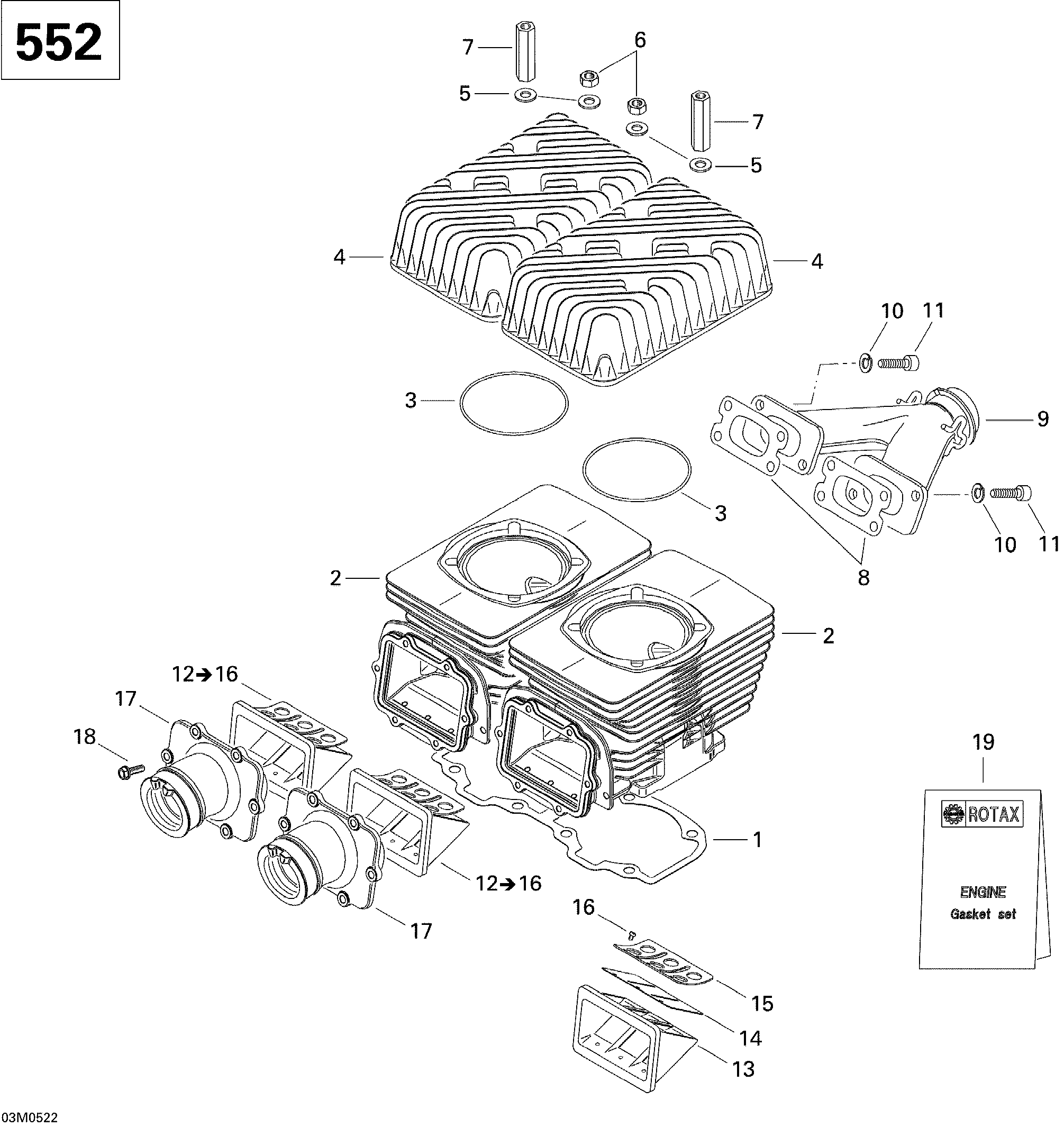

01- Cylinder, Exhaust Manifold And Reed Valve для BRP Ski-Doo Expedition 550F - 2005
-
№АртикулНазвание
-
1420950910 Gasket 0.3Gasket 0.3
-
1420950911 Gasket 0.4Gasket 0.4
-
1420950912 Gasket 0.6Gasket 0.6
-
2420923978 Cylinder With SleeveCylinder With Sleeve
-
3293300026 O-RingO-Ring
-
4420923595 Head CylinderHead Cylinder
-
5420250311 Washer 8.4 mmWasher 8.4 mm
-
6232081414 Hex Nut M8Hex Nut M8
-
7420842203 Distance Nut M8 X 47Distance Nut M8 X 47
-
8420831849 Gasket 1.0 mmGasket 1.0 mm
-
9420673065 Exhaust ManifoldExhaust Manifold
-
10420945752 Lock Washer 8 mmLock Washer 8 mm
-
11205083044 Socket Head Screw M8 X 30Socket Head Screw M8 X 30
-
12420924519 Reed Valve Ass'Y. Includes 12 to 16Reed Valve Ass'Y. Includes 12 to 16
-
14420924532 Reed PedalReed Pedal
-
15420924539 Reed Pedal StopReed Pedal Stop
-
16420941215 Phillips Screw M3 X 5Phillips Screw M3 X 5
-
17420867300 Carburetor SocketCarburetor Socket
-
18420941925 Tapping Screw M5 X 16Tapping Screw M5 X 16
-
19420889911 Gasket Set, EngineGasket Set, Engine
