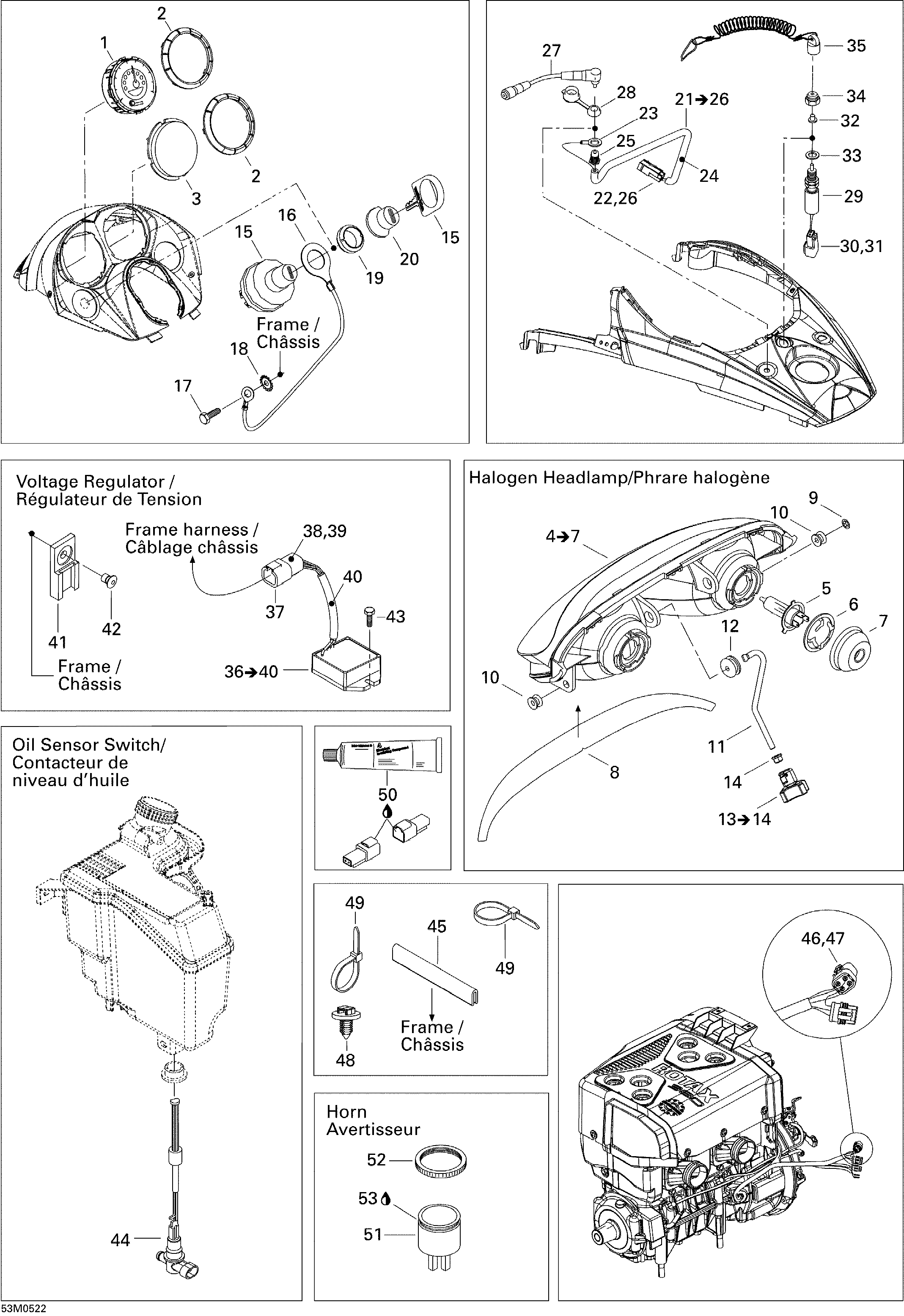

10- Electrical Accessories для BRP Ski-Doo Expedition 550F - 2005
-
№АртикулНазвание
-
1515176263 SpeedometerSpeedometer
-
2515176242 Gauge RingGauge Ring
-
3515175901 Bottom RingBottom Ring
-
4515176273 Halogen Headlamp Ass'y. Includes 4 to 7Halogen Headlamp Ass'y. Includes 4 to 7
-
5515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
6515175910 Bulb HolderBulb Holder
-
7515175911 CoverCover
-
8516001328 Headlamp DecalHeadlamp Decal
-
9732610072 Push NutPush Nut
-
10515175760 Headlamp BushingHeadlamp Bushing
-
11515175521 Adjuster RodAdjuster Rod
-
12415100800 GrommetGrommet
-
13515175975 HandleHandle
-
15410113602 Ignition SwitchIgnition Switch
-
16515176288 Ignition Switch Ground WireIgnition Switch Ground Wire
-
17210261080 Hex Forming Screw M6 X 10Hex Forming Screw M6 X 10
-
18394001900 External Tooth Lock WasherExternal Tooth Lock Washer
-
19410112100 Face NutFace Nut
-
20570013700 Switch BootSwitch Boot
-
21515175799 Visor Plug Harness. Includes 21 to 26Visor Plug Harness. Includes 21 to 26
-
22515175232 Male TerminalMale Terminal
-
23515175172 Open BarrelOpen Barrel
-
24515175332 Low Temperature Tubing, VinylLow Temperature Tubing, Vinyl
-
25415096100 Visor PlugVisor Plug
-
26515175654 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
27515175851 ExtensionExtension
-
28572103300 CapCap
-
29515175653 Brake SwitchBrake Switch
-
30515175654 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
31515175232 Male TerminalMale Terminal
-
32570151100 Plunger CapPlunger Cap
-
34515145900 Switch NutSwitch Nut
-
35515151500 Cap Ass'YCap Ass'Y
-
36515176188 Voltage Regulator. Manual Starter / Includes 36 to 40Voltage Regulator. Manual Starter / Includes 36 to 40
-
36515176189 Voltage Regulator. Electric Starter / Includes 36 to 40Voltage Regulator. Electric Starter / Includes 36 to 40
-
37278001477 Male Terminal Housing, 4 CircuitsMale Terminal Housing, 4 Circuits
-
38515175568 Male TerminalMale Terminal
-
39278001478 (Female) Secondary Lock (4 Circuits) (Deutsch)(Female) Secondary Lock (4 Circuits) (Deutsch)
-
40710000497 Protector TubingProtector Tubing
-
41515175917 ClipClip
-
42293150037 Rivet Avdel 3/16''Rivet Avdel 3/16''
-
43210261280 Hex Forming Screw M6 X 12Hex Forming Screw M6 X 12
-
44515176016 Oil Level SensorOil Level Sensor
-
45509000263 TrimTrim
-
46278001473 Female Terminal Housing (4 Circuits)Female Terminal Housing (4 Circuits)
-
47278001474 Female Lock, 4 CircuitsFemale Lock, 4 Circuits
-
48293730018 Dart MountDart Mount
-
49414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
49293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
49293750009 Tie Rap 160 mmTie Rap 160 mm
-
50293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
51515176035 HornHorn
-
52414805101 Plastic NutPlastic Nut
-
53296000309 Sealant Silicone, ClearSealant Silicone, Clear
