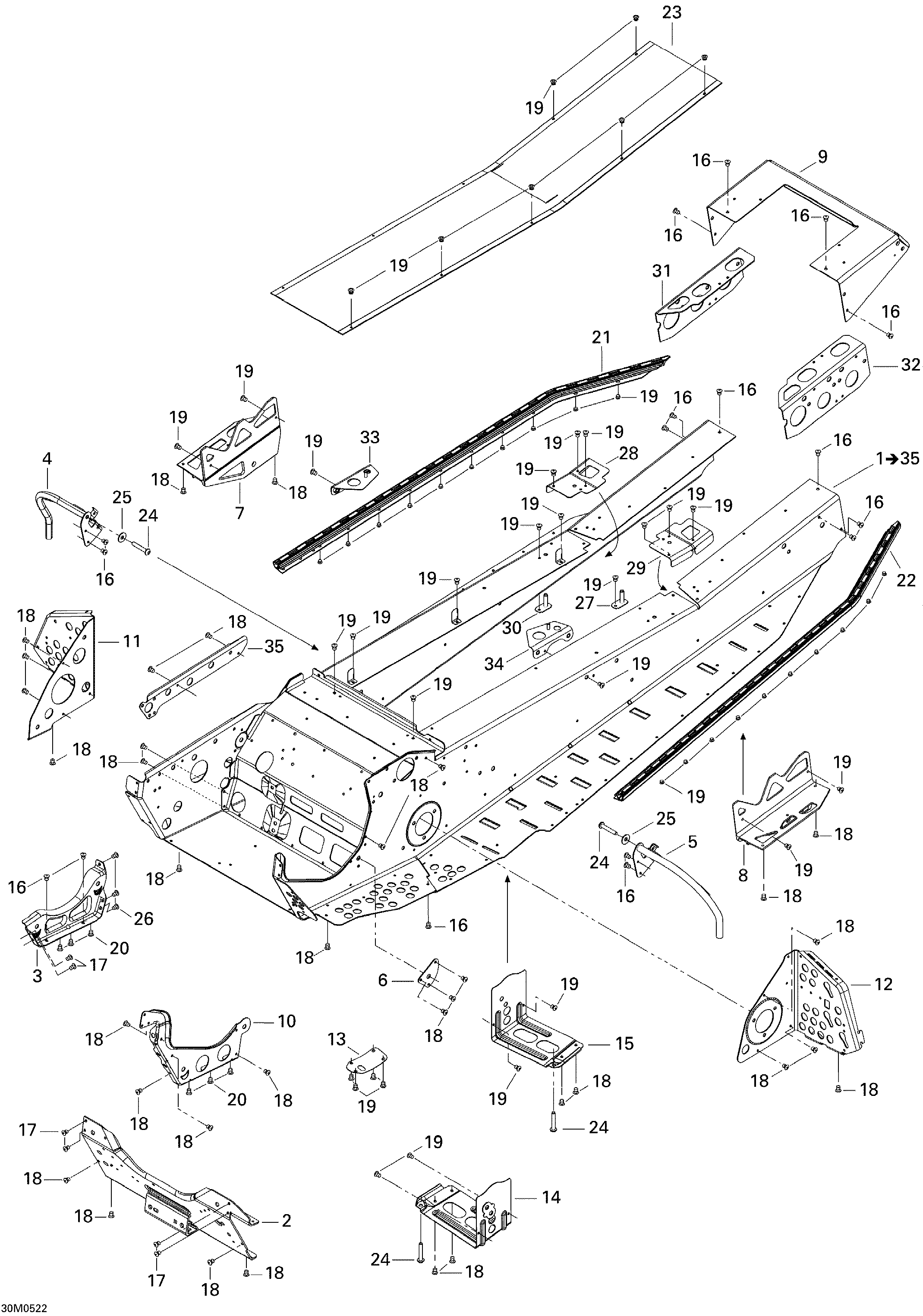

09- Frame для BRP Ski-Doo Expedition 550F - 2005
-
№АртикулНазвание
-
1415128928 Frame. Includes 1 to 35Frame. Includes 1 to 35
-
3518323346 Engine Support, BlackEngine Support, Black
-
4518324162 RH Toe Hold SupportRH Toe Hold Support
-
5518324163 LH Toe Hold SupportLH Toe Hold Support
-
6518323507 Outer ReinforcementOuter Reinforcement
-
7518324419 RH Suspension BracketRH Suspension Bracket
-
8518324420 LH Suspension BracketLH Suspension Bracket
-
9518324561 Rear CapRear Cap
-
10518323241 Inner Reinforcement, BlackInner Reinforcement, Black
-
11518323805 RH Footrest ReinforcementRH Footrest Reinforcement
-
12518324527 LH Footrest ReinforcementLH Footrest Reinforcement
-
13518324169 PlatePlate
-
14518324433 RH FootrestRH Footrest
-
15518324435 LH FootrestLH Footrest
-
16390909200 Avex RivetAvex Rivet
-
17390909100 Avex RivetAvex Rivet
-
18390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
19390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
20390910300 Rivet HenrobRivet Henrob
-
21518324083 RH RollerRH Roller
-
22518324084 LH RollerLH Roller
-
23518324273 Center PlateCenter Plate
-
24205982086 Socket Head Screw M8 X 20, Scotch GripSocket Head Screw M8 X 20, Scotch Grip
-
25234082410 Flat Washer M8Flat Washer M8
-
26293150096 RivetRivet
-
27518324384 Seat BracketSeat Bracket
-
28518324431 RH Frame ReinforcementRH Frame Reinforcement
-
29518324432 LH Frame ReinforcementLH Frame Reinforcement
-
30518322791 Tank BracketTank Bracket
-
31518324411 RH Rear ReinforcementRH Rear Reinforcement
-
32518324412 LH Rear ReinforcementLH Rear Reinforcement
-
33518324385 RH Frame Reinforcement, BlackRH Frame Reinforcement, Black
-
34518324386 LH Frame Reinforcement, BlackLH Frame Reinforcement, Black
-
35518323328 RH Tunnel StiffenerRH Tunnel Stiffener
