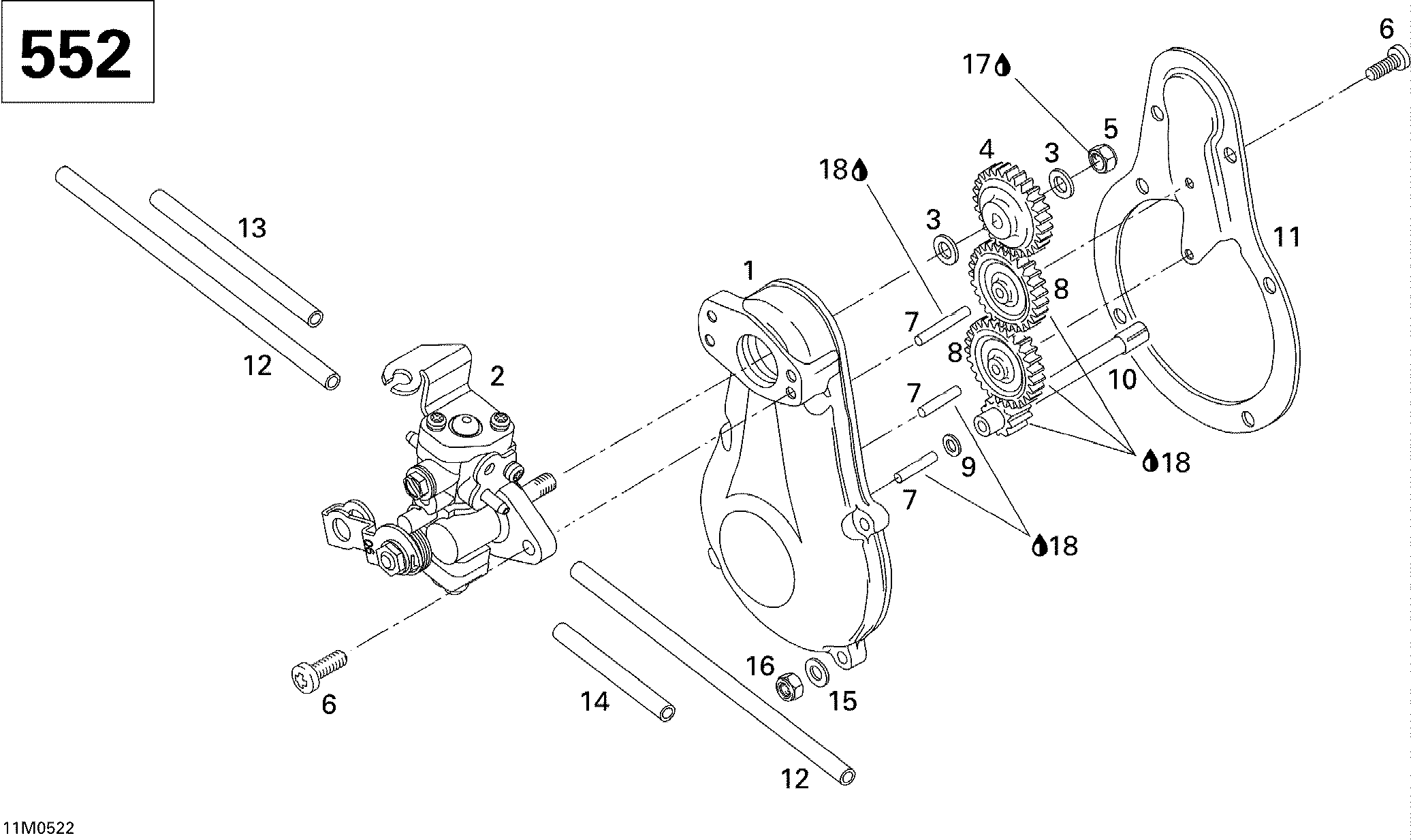

02- Oil Pump для BRP Ski-Doo Expedition 550F - 2005
-
№АртикулНазвание
-
1420810110 Flanged PumpFlanged Pump
-
2420889072 Oil Pump Ass'yOil Pump Ass'y
-
3420927945 Flat WasherFlat Washer
-
4420935930 Oil Pump Gear, 27 TeethOil Pump Gear, 27 Teeth
-
5232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
6420841971 ScrewScrew
-
7420232420 Needle PinNeedle Pin
-
8420834210 Oil Pump GearOil Pump Gear
-
9420244073 Washer 4.3 mmWasher 4.3 mm
-
10420935970 Gear, 9 TeethGear, 9 Teeth
-
11420810122 Flanged PumpFlanged Pump
-
12414413800 Oil LineOil Line
-
13276000048 Isolation Hose 260 mmIsolation Hose 260 mm
-
14420960729 Isolation Hose 150 mmIsolation Hose 150 mm
-
15420827800 WasherWasher
-
16420942025 Nut M5Nut M5
-
17293800060 Loctite 243, 250 mlLoctite 243, 250 ml
-
18413707000 Molykote 111, 150 GMolykote 111, 150 G
