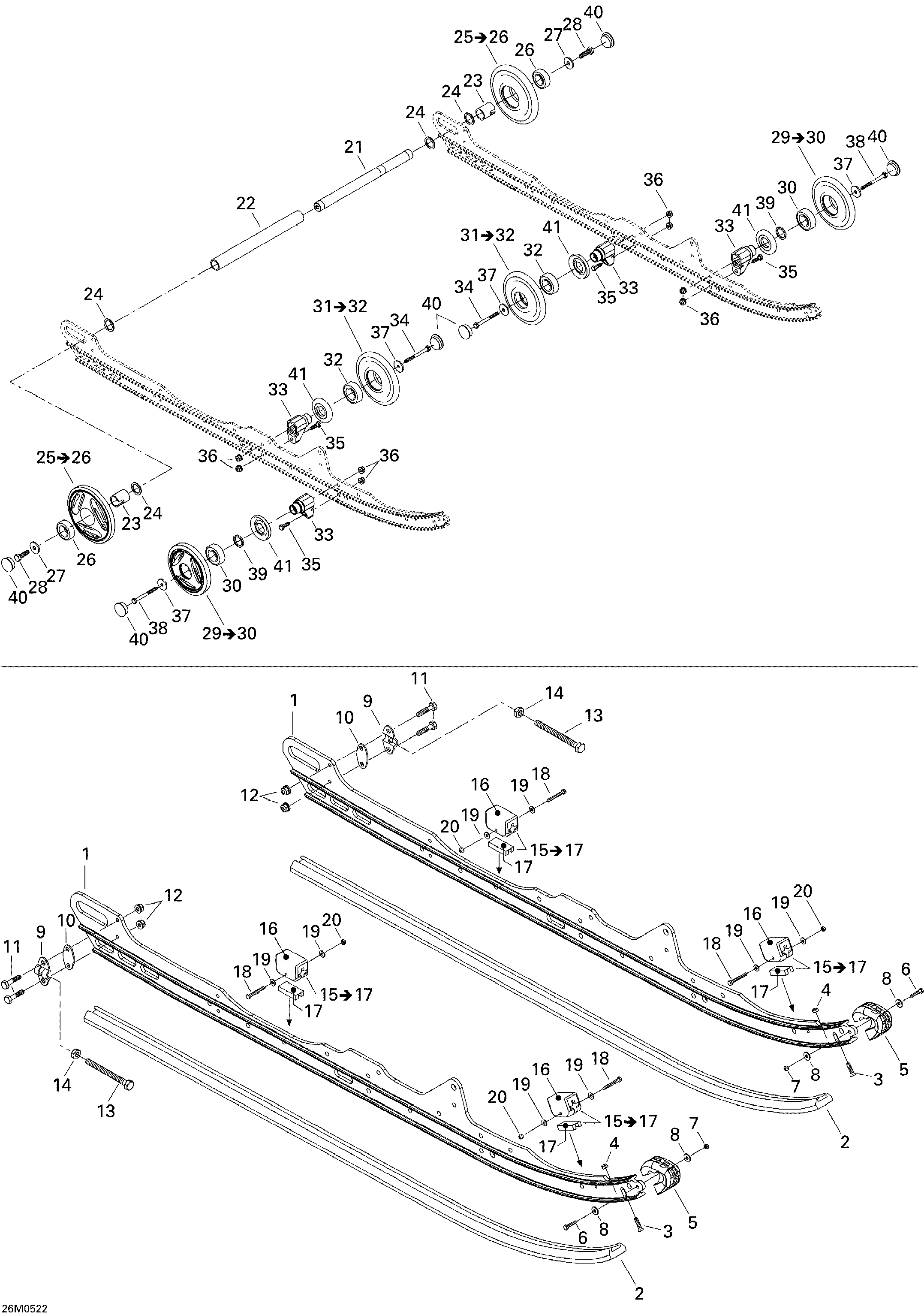

08- Rear Suspension для BRP Ski-Doo Expedition 550F - 2005
-
№АртикулНазвание
-
1503189582 Runner (136'')Runner (136'')
-
2503189639 ShoeShoe
-
3208562560 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
4232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
5572075400 Runner ProtectorRunner Protector
-
6207152544 Hex Screw M5 X 25Hex Screw M5 X 25
-
7232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
8391301600 WasherWasher
-
9503155300 TensionerTensioner
-
10503189160 Tensioner SpacerTensioner Spacer
-
11207063044 Hex Screw M6 X 30Hex Screw M6 X 30
-
12233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
13230100044 Hex Screw M10 X 100Hex Screw M10 X 100
-
14233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
15503190905 Rubber Stopper Ass'y. Includes 15 to 17Rubber Stopper Ass'y. Includes 15 to 17
-
16570063000 Rubber StopperRubber Stopper
-
17572084800 Reinforcement StopperReinforcement Stopper
-
18207054044 Hex Screw M5 X 40Hex Screw M5 X 40
-
19391301700 WasherWasher
-
20232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
21503162400 Rear AxleRear Axle
-
22503188941 SpacerSpacer
-
23503189809 Outer SpacerOuter Spacer
-
24503180400 WasherWasher
-
25503190856 Wheel 165 mm. Includes 25 to 26Wheel 165 mm. Includes 25 to 26
-
26503190795 Ball BearingBall Bearing
-
27503183300 WasherWasher
-
28250000019 Hex Screw With NylonHex Screw With Nylon
-
29503190794 Wheel 139 mm. Includes 29 to 30Wheel 139 mm. Includes 29 to 30
-
30503190795 Ball BearingBall Bearing
-
31503190798 Wheel 139 mm. Includes 31 to 32Wheel 139 mm. Includes 31 to 32
-
32503190795 Ball BearingBall Bearing
-
33503190389 SupportSupport
-
34207088044 Hex Screw M8 X 80Hex Screw M8 X 80
-
35207182544 Hex Screw M8 X 25Hex Screw M8 X 25
-
36233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
37503183100 WasherWasher
-
38207088544 Hex Screw M8 X 85Hex Screw M8 X 85
-
39503173700 WasherWasher
-
40570063600 Wheel CapWheel Cap
-
41572089000 Labyrinth SealLabyrinth Seal
