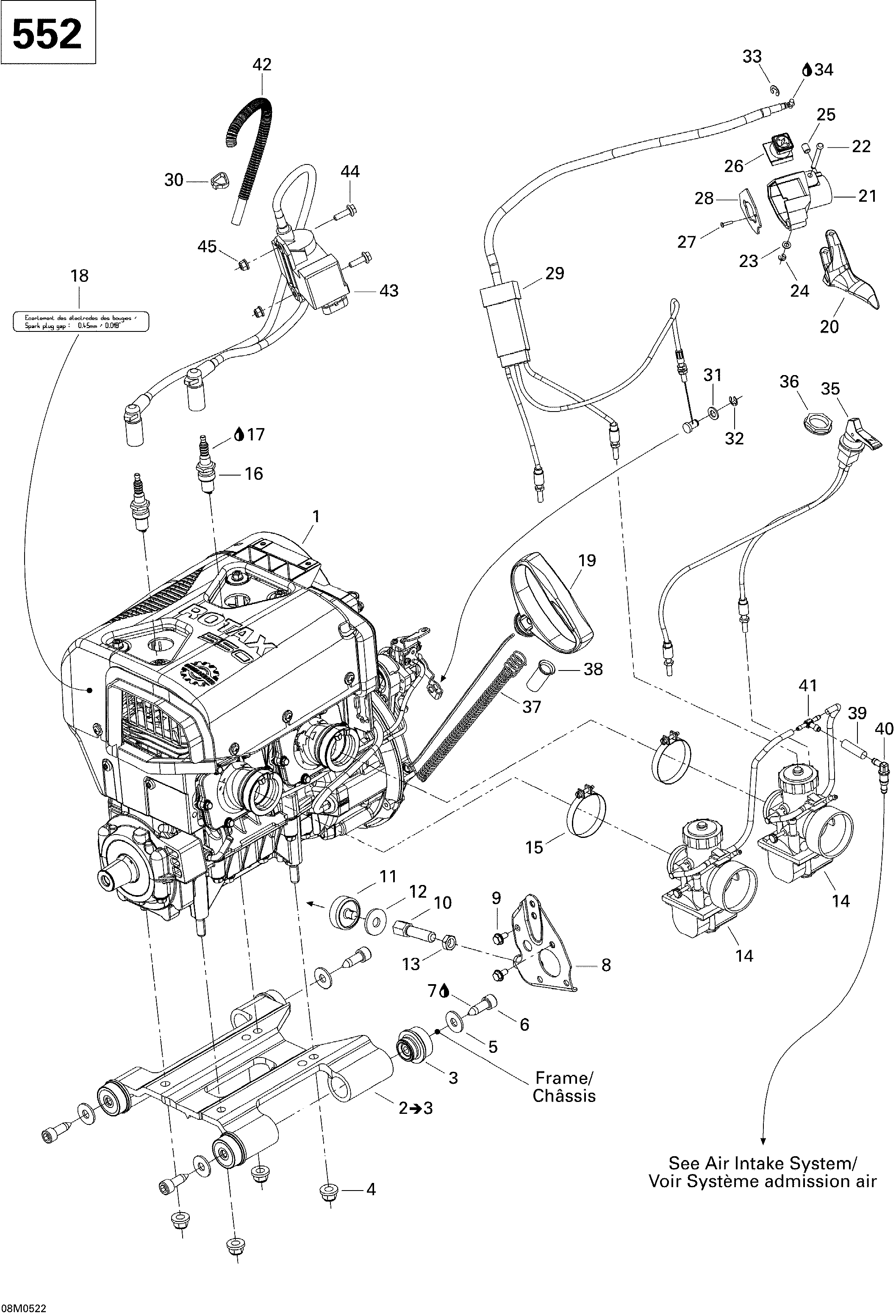

01- Engine And Engine Support для BRP Ski-Doo Expedition 550F - 2005
-
№АртикулНазвание
-
1400509755 552 Engine552 Engine
-
2512059885 Engine Support. Includes 2 to 3Engine Support. Includes 2 to 3
-
3512059691 Rubber MountRubber Mount
-
4233201414 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
5506151251 WasherWasher
-
6250000094 Screw M10 X 30Screw M10 X 30
-
7413703400 Loctite 222, 10 CcLoctite 222, 10 Cc
-
8512059910 Support PlateSupport Plate
-
9207561244 Hex Flanged Screw M6 X 12, Scotch GripHex Flanged Screw M6 X 12, Scotch Grip
-
10512058800 Stopper ScrewStopper Screw
-
11512059610 StopperStopper
-
12512059057 WasherWasher
-
13732610019 RH Hex Jam Nut M12RH Hex Jam Nut M12
-
14403138772 Carburetor Vm-34-616Carburetor Vm-34-616
-
15512059834 Gemi ClampGemi Clamp
-
16414961100 Spark Plug, NGK Br9esSpark Plug, NGK Br9es
-
17293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
18516000986 Spark Plug DecalSpark Plug Decal
-
19572084400 Starter GripStarter Grip
-
20512059997 Handle Ass'yHandle Ass'y
-
21512059334 Throttle Handle HousingThrottle Handle Housing
-
22414438700 Lever PinLever Pin
-
23234051600 Flat Washer M5Flat Washer M5
-
24414439000 CirclipCirclip
-
25414440800 Set Screw M8 X 10Set Screw M8 X 10
-
26515176091 Kill SwitchKill Switch
-
27250000022 Phillips ScrewPhillips Screw
-
28512059507 PlatePlate
-
29512059973 Throttle CableThrottle Cable
-
30414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
31234081100 Flat Washer 8 mmFlat Washer 8 mm
-
32414753500 CirclipCirclip
-
33414274500 CirclipCirclip
-
34293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
35512059914 Choke CableChoke Cable
-
36512060016 Plastic NutPlastic Nut
-
37512059535 Rope GuideRope Guide
-
38512059536 TubeTube
-
39415080200 LineLine
-
40414580600 Elbow Male ConnectorElbow Male Connector
-
41572045500 T-ConnectorT-Connector
-
42409901700 Tubing, 9 mmTubing, 9 mm
-
43512059945 Calibrated ModuleCalibrated Module
-
44207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
45233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
