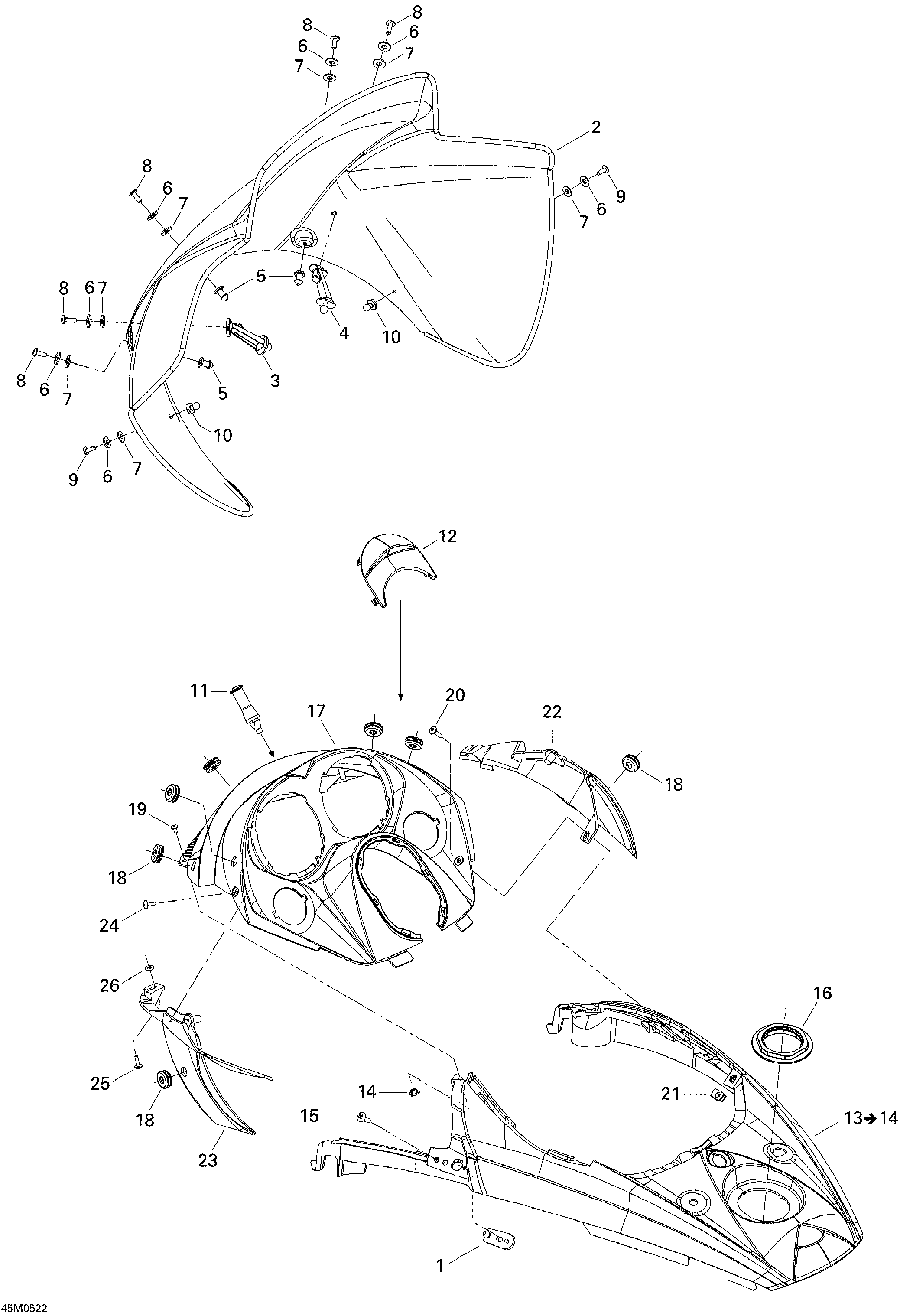

09- Windshield And Console для BRP Ski-Doo Expedition 550F - 2005
-
№АртикулНазвание
-
1517302616 Hood LatchHood Latch
-
2517303247 High WindshieldHigh Windshield
-
3517303214 LH Windshield SupportLH Windshield Support
-
4517303215 RH Windshield SupportRH Windshield Support
-
5517303439 KnobKnob
-
6250200025 Washer 5 mmWasher 5 mm
-
7250200024 Rubber Washer M5Rubber Washer M5
-
8250000146 Torx Screw K50 X 16Torx Screw K50 X 16
-
9250000145 Torx Screw M5 X 14Torx Screw M5 X 14
-
10517245800 KnobKnob
-
11517303197 Windshield SupportWindshield Support
-
12517302592 Console CapConsole Cap
-
13517303354 Center Console. Includes 13 to 14Center Console. Includes 13 to 14
-
14250100030 T Flanged Nut, M4T Flanged Nut, M4
-
15250000128 Torx Pan Head Screw M6 X 20Torx Pan Head Screw M6 X 20
-
16517302575 Console NutConsole Nut
-
17517303397 Indicator SupportIndicator Support
-
18517302841 GrommetGrommet
-
19250000127 Torx Screw M4 X 8Torx Screw M4 X 8
-
20250000130 Torx Screw M5 X 20Torx Screw M5 X 20
-
21250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
22517303413 RH Air DeflectorRH Air Deflector
-
23517303414 LH Air DeflectorLH Air Deflector
-
24250000084 Phillips Screw K40 X 16Phillips Screw K40 X 16
-
25250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
26234042600 Flat Washer 4 mmFlat Washer 4 mm
