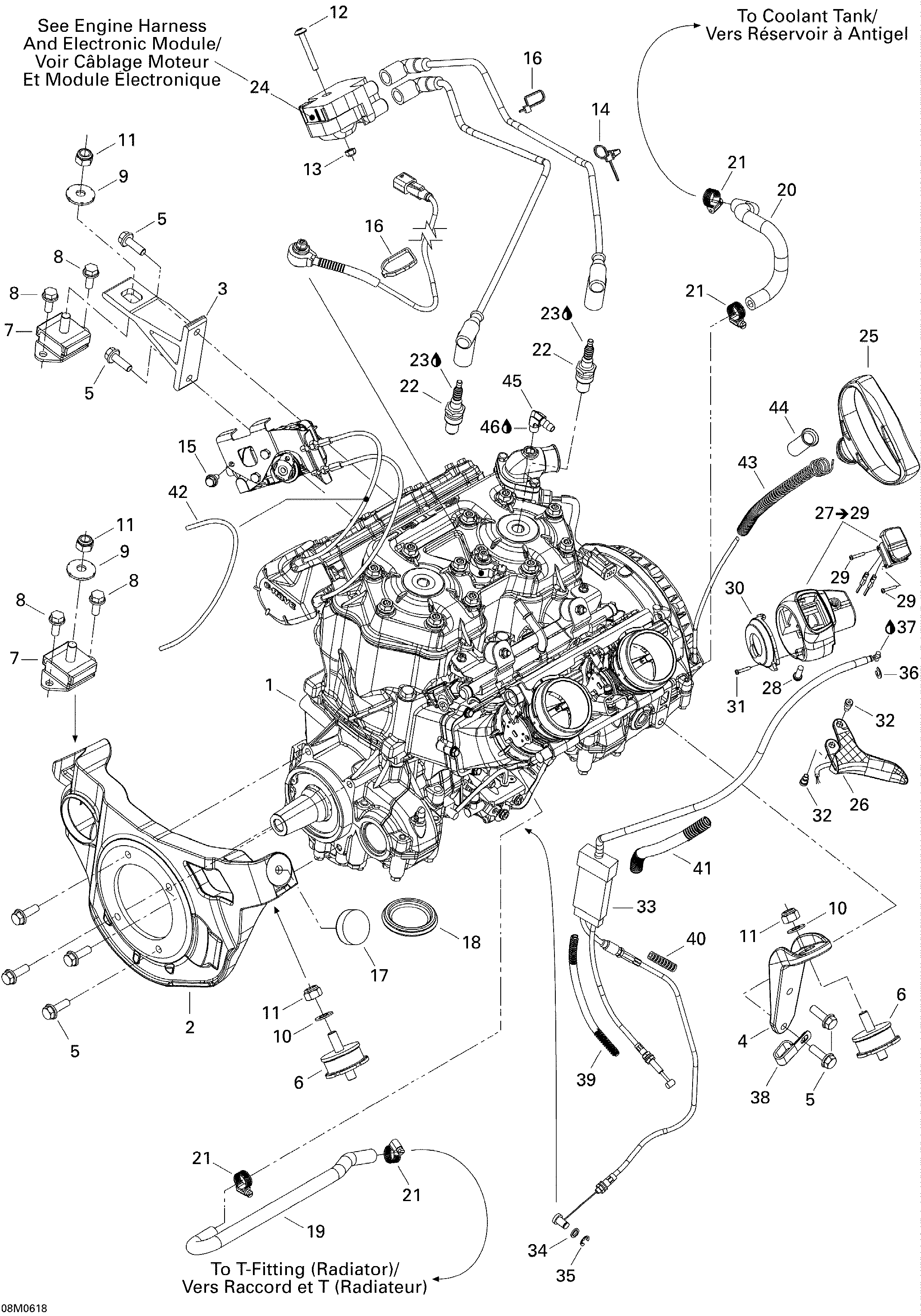

01- Engine для BRP Ski-Doo Mach Z 1000 SDI Adrenaline & X - 2006
-
№АртикулНазвание
-
1400101118 Engine 995 SDIEngine 995 SDI
-
2512059792 Engine Support, PTOEngine Support, PTO
-
3512059894 Front Engine Support, MagFront Engine Support, Mag
-
4512059794 Rear Engine Support, MagRear Engine Support, Mag
-
5207582544 Hex Flanged Screw M8 X 25, Scotch GripHex Flanged Screw M8 X 25, Scotch Grip
-
6512059960 Rubber MountRubber Mount
-
7512059936 Rubber MountRubber Mount
-
8207582044 Hex Flanged Screw M8 X 20, Scotch GripHex Flanged Screw M8 X 20, Scotch Grip
-
9512056700 Lock WasherLock Washer
-
10234001410 Flat Washer 10 mmFlat Washer 10 mm
-
11232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
12250000215 Torx Screw M6 X 45Torx Screw M6 X 45
-
13232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
14515175220 Tie RapTie Rap
-
15207661244 Hex Flange Screw M6 X 12Hex Flange Screw M6 X 12
-
16414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
17512060000 StopperStopper
-
18570045101 Bottom Pan CapBottom Pan Cap
-
19512060012 Formed Hose, Inlet Throttle BodyFormed Hose, Inlet Throttle Body
-
20512059935 Formed Hose, Outlet Throttle BodyFormed Hose, Outlet Throttle Body
-
21293650170 Tridon Hose ClampTridon Hose Clamp
-
22512060029 Spark Plug BR8ECSSpark Plug BR8ECS
-
23293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
24420266070 Double Ignition CoilDouble Ignition Coil
-
25572084400 Starter GripStarter Grip
-
26512059891 Handle Ass'yHandle Ass'y
-
27512060001 Housing Throttle Ass'y. Includes 27 to 29Housing Throttle Ass'y. Includes 27 to 29
-
28250000036 Socket Head Screw M6 X 16Socket Head Screw M6 X 16
-
29250000098 Phillips Screw M2.9 X 16Phillips Screw M2.9 X 16
-
30512059698 CoverCover
-
31250000098 Phillips Screw M2.9 X 16Phillips Screw M2.9 X 16
-
32732601143 Flanged ScrewFlanged Screw
-
33512060164 Throttle CableThrottle Cable
-
34234081100 Flat Washer 8 mmFlat Washer 8 mm
-
35414753500 CirclipCirclip
-
36414274500 CirclipCirclip
-
37293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
38515175980 Open ClampOpen Clamp
-
39515175442 Tubing, 6 mmTubing, 6 mm
-
40515175442 Tubing, 6 mmTubing, 6 mm
-
41409901700 Tubing, 9 mmTubing, 9 mm
-
42515175442 Tubing, 6 mmTubing, 6 mm
-
43512059964 Rope GuideRope Guide
-
44512059536 TubeTube
-
45293700045 Elbow Fitting 90°Elbow Fitting 90°
-
46293800018 Loctite 592, Pipe Sealant, 50 mlLoctite 592, Pipe Sealant, 50 ml
