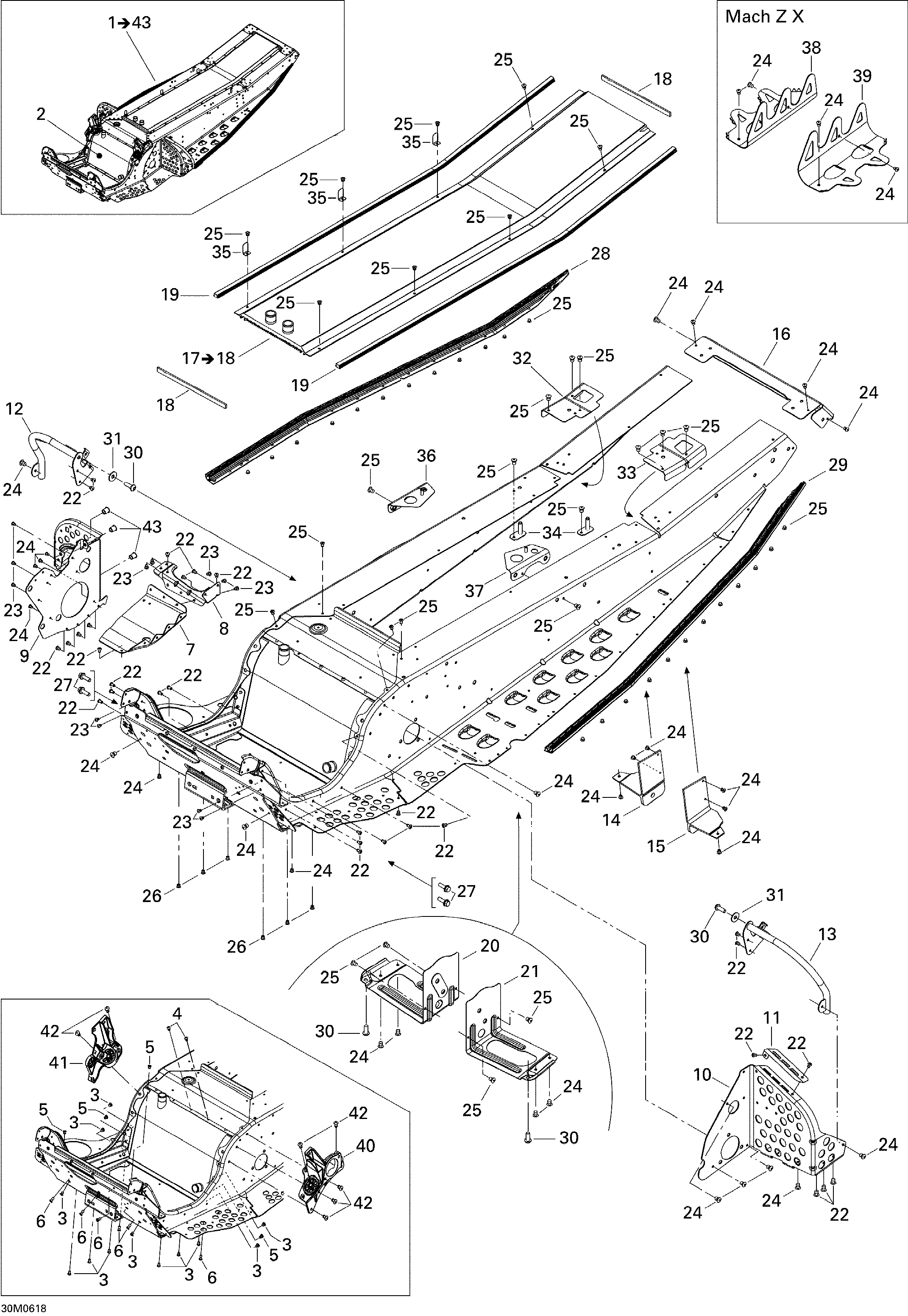

09- Frame для BRP Ski-Doo Mach Z 1000 SDI Adrenaline & X - 2006
-
№АртикулНазвание
-
1415129141 Frame Ass'y. X, Includes 1 to 43Frame Ass'y. X, Includes 1 to 43
-
1415129142 Frame Ass'y. Adrenaline, Includes 1 to 43Frame Ass'y. Adrenaline, Includes 1 to 43
-
3390909200 Avex RivetAvex Rivet
-
4390909100 Avex RivetAvex Rivet
-
5390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
6390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
11518323105 Plate, BlackPlate, Black
-
12518324098 RH Toe Hold SupportRH Toe Hold Support
-
13518324097 LH Toe Hold SupportLH Toe Hold Support
-
14518323572 RH Slide BracketRH Slide Bracket
-
15518323573 LH Slide BracketLH Slide Bracket
-
16518324409 Rear CapRear Cap
-
17518324242 Rear Radiator. Includes 17 to 18Rear Radiator. Includes 17 to 18
-
18415012300 Radiator ProtectorRadiator Protector
-
19293200097 GasketGasket
-
20518323952 RH Footrest ReinforcementRH Footrest Reinforcement
-
21518323954 LH Footrest ReinforcementLH Footrest Reinforcement
-
22390909200 Avex RivetAvex Rivet
-
23390909100 Avex RivetAvex Rivet
-
24390402200 Pop Rivet 3/16''. XPop Rivet 3/16''. X
-
24390402200 Pop Rivet 3/16''. AdrenalinePop Rivet 3/16''. Adrenaline
-
25390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
26390910300 Rivet HenrobRivet Henrob
-
27207582544 Hex Flanged Screw M8 X 25, Scotch GripHex Flanged Screw M8 X 25, Scotch Grip
-
28518325000 RH RollerRH Roller
-
29518325001 LH RollerLH Roller
-
30205982086 Socket Head Screw M8 X 20, Scotch GripSocket Head Screw M8 X 20, Scotch Grip
-
31234082410 Flat Washer M8Flat Washer M8
-
32518324431 RH Frame ReinforcementRH Frame Reinforcement
-
33518324432 LH Frame ReinforcementLH Frame Reinforcement
-
34518322791 Tank BracketTank Bracket
-
36518324385 RH Frame Reinforcement, BlackRH Frame Reinforcement, Black
-
37518324386 LH Frame Reinforcement, BlackLH Frame Reinforcement, Black
-
38518324759 RH Tunnel Liner. XRH Tunnel Liner. X
-
39518324760 LH Tunnel Liner. XLH Tunnel Liner. X
-
40518323715 LH Engine SupportLH Engine Support
-
41518323716 RH Engine SupportRH Engine Support
-
42293150120 Hemlock Rivet 6.5 mmHemlock Rivet 6.5 mm
-
43415107300 InsertInsert
