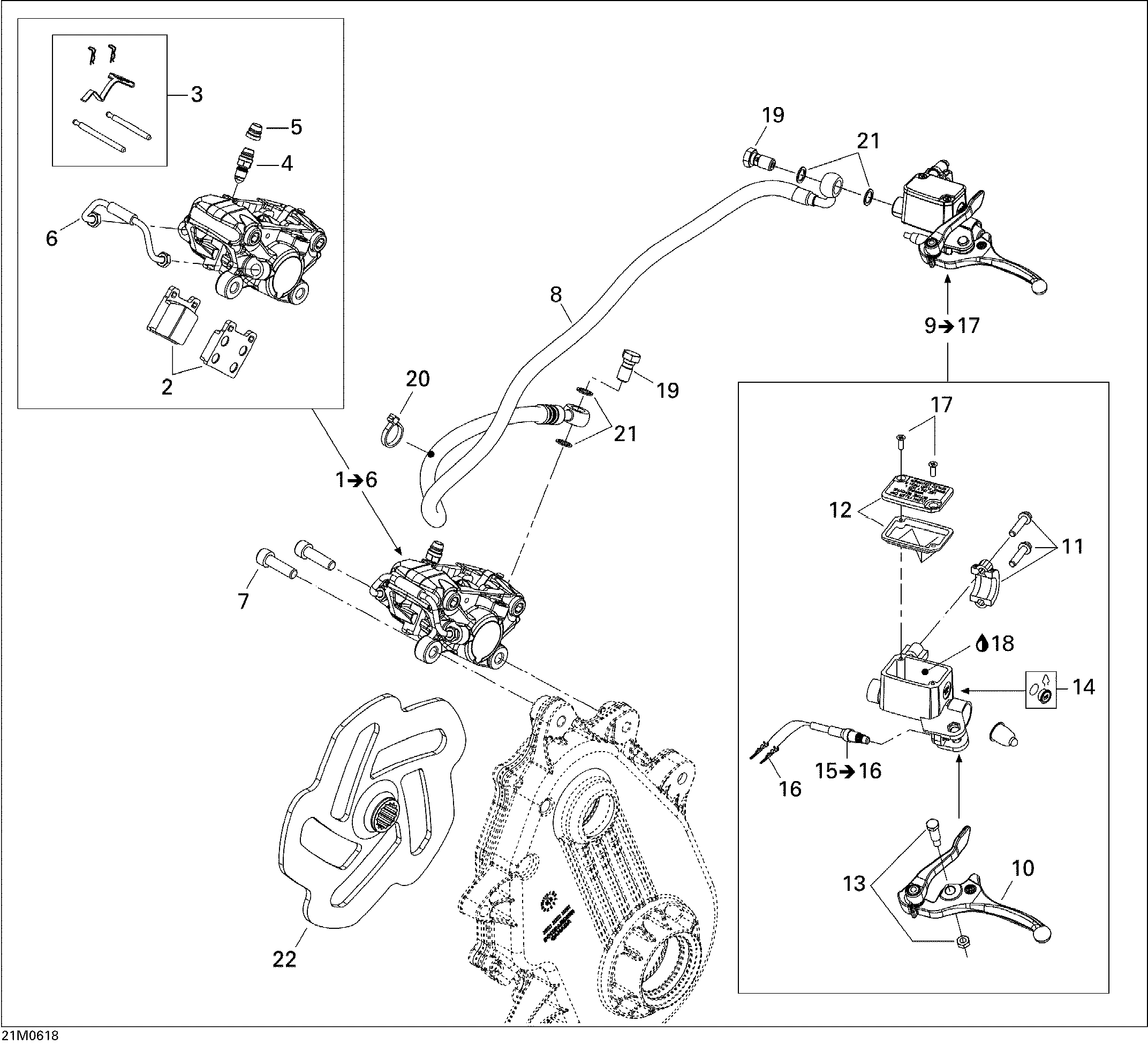

06- Brakes для BRP Ski-Doo Mach Z 1000 SDI Adrenaline & X - 2006
-
№АртикулНазвание
-
1507032387 Brake Caliper. X / Includes 1 to 6Brake Caliper. X / Includes 1 to 6
-
1507032417 Brake Caliper. Adrenaline / Includes 1 to 6Brake Caliper. Adrenaline / Includes 1 to 6
-
2415084600 Brake Pad KitBrake Pad Kit
-
3415128865 Kit (Pins, Retainers, Spring)Kit (Pins, Retainers, Spring)
-
4414989800 Bleeder ScrewBleeder Screw
-
5414989700 BootBoot
-
6414989900 Rigid TubingRigid Tubing
-
7205503544 Socket Head Screw M10 X 35, Scotch GripSocket Head Screw M10 X 35, Scotch Grip
-
8507032384 Hose. AdrenalineHose. Adrenaline
-
8507032385 Hose. XHose. X
-
9507032407 Master Cylinder. Includes 9 to 17Master Cylinder. Includes 9 to 17
-
10507032423 Brake Lever Ass'yBrake Lever Ass'y
-
11415029800 Clamp Ass'yClamp Ass'y
-
12415029900 CapCap
-
13415030000 Pin Ass'yPin Ass'y
-
14414990600 WindowWindow
-
15507032366 MicroswitchMicroswitch
-
16515175232 Male TerminalMale Terminal
-
17216141260 Screw M4 X 12Screw M4 X 12
-
18293600063 Brake Fluid, SRF (DOT 4)Brake Fluid, SRF (DOT 4)
-
18293600062 Brake Fluid, GTLMA (DOT 4) 12 X 354 mlBrake Fluid, GTLMA (DOT 4) 12 X 354 ml
-
19414920500 Banjo BoltBanjo Bolt
-
20293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
21414920600 WasherWasher
-
22507032400 Brake DiskBrake Disk
