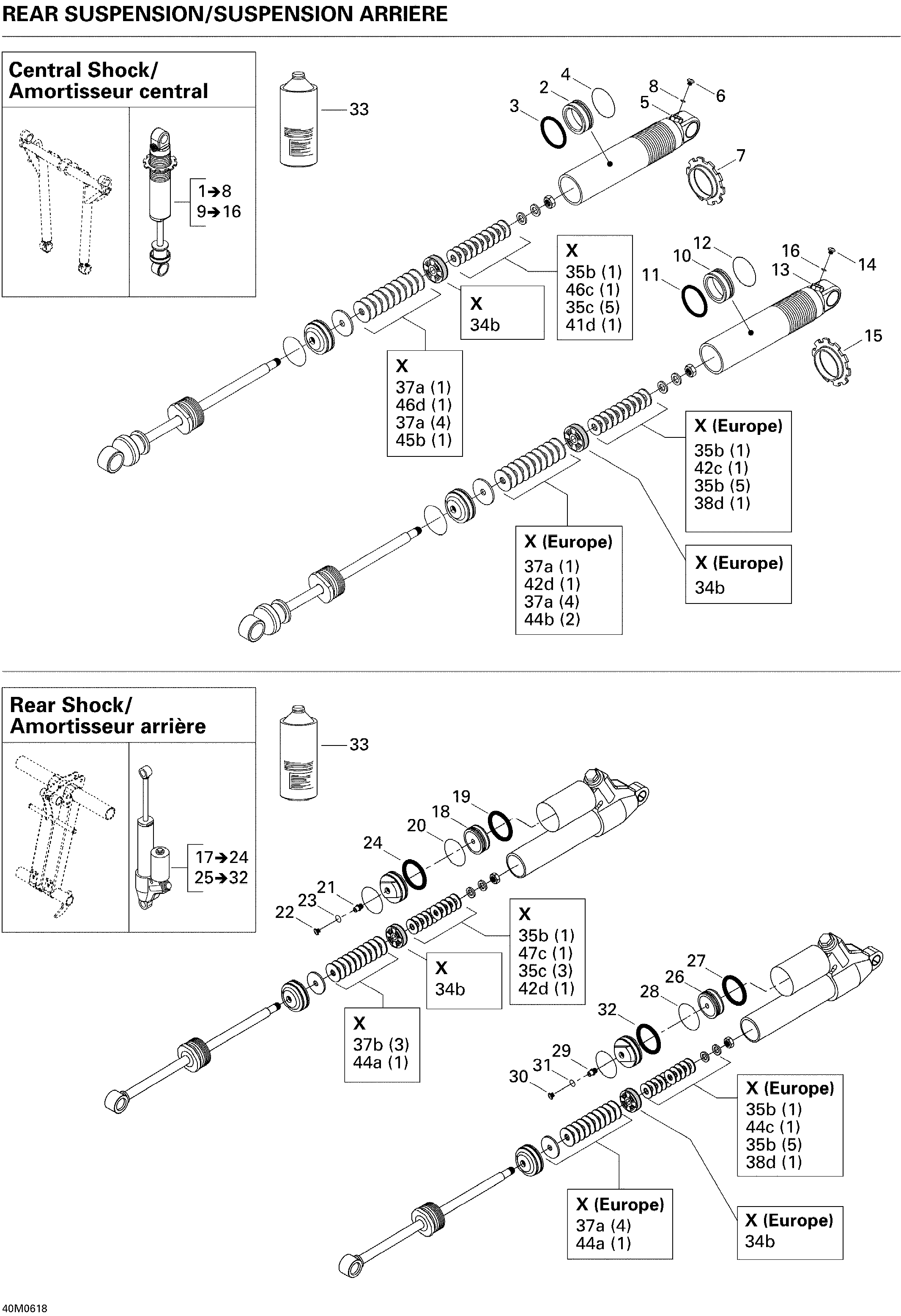

08- Take Apart Shock, Rear для BRP Ski-Doo Mach Z 1000 SDI Adrenaline & X - 2006
-
№АртикулНазвание
-
1503191203 Center Shock. X, Includes 1 to 8Center Shock. X, Includes 1 to 8
-
2503189309 Free Piston. XFree Piston. X
-
3414888312 O-Ring. XO-Ring. X
-
4503189308 Piston Ring. XPiston Ring. X
-
5505070398 Air Valve Ring. XAir Valve Ring. X
-
6505070399 Screw. XScrew. X
-
7414888316 Spring Collar. XSpring Collar. X
-
8505070400 O-Ring. XO-Ring. X
-
9503191220 Center Shock. X (Europe), Includes 9 to 16Center Shock. X (Europe), Includes 9 to 16
-
10503189309 Free Piston. X (Europe)Free Piston. X (Europe)
-
11414888312 O-Ring. X (Europe)O-Ring. X (Europe)
-
12503189308 Piston Ring. X (Europe)Piston Ring. X (Europe)
-
13505070398 Air Valve Ring. X (Europe)Air Valve Ring. X (Europe)
-
14505070399 Screw. X (Europe)Screw. X (Europe)
-
15414888316 Spring Collar. X (Europe)Spring Collar. X (Europe)
-
16505070400 O-Ring. X (Europe)O-Ring. X (Europe)
-
17503190847 Rear Shock. X, Includes 17 to 24Rear Shock. X, Includes 17 to 24
-
18415093812 Free Piston. XFree Piston. X
-
19415093807 O-Ring. XO-Ring. X
-
20415093806 Piston Ring. XPiston Ring. X
-
21505070398 Air Valve Ring. XAir Valve Ring. X
-
22505070399 Screw. XScrew. X
-
23505070400 O-Ring. XO-Ring. X
-
24415093804 O-Ring. XO-Ring. X
-
25503191221 Rear Shock. X (Europe), Includes 25 to 32Rear Shock. X (Europe), Includes 25 to 32
-
26415093812 Free Piston. X (Europe)Free Piston. X (Europe)
-
27415093807 O-Ring. X (Europe)O-Ring. X (Europe)
-
28415093806 Piston Ring. X (Europe)Piston Ring. X (Europe)
-
29505070398 Air Valve Ring. X (Europe)Air Valve Ring. X (Europe)
-
30505070399 Screw. X (Europe)Screw. X (Europe)
-
31505070400 O-Ring. X (Europe)O-Ring. X (Europe)
-
32415093804 O-Ring. X (Europe)O-Ring. X (Europe)
-
33293600035 Shock Oil, 1 LiterShock Oil, 1 Liter
-
34a414888304 Piston (C36)Piston (C36)
-
34c414888305 Piston (2 X 0.3-2) (C36)Piston (2 X 0.3-2) (C36)
-
34E414888306 Piston (2 X 0.3-4) (C36)Piston (2 X 0.3-4) (C36)
-
34g414888307 Piston (2 X 0.3-6) (C36)Piston (2 X 0.3-6) (C36)
-
35a415039100 Leaf Valve O30 X 0.254 (C36)Leaf Valve O30 X 0.254 (C36)
-
35b414888318 Leaf Valve O30 X 0.203 (C36)Leaf Valve O30 X 0.203 (C36)
-
35c414888319 Leaf Valve O30 X 0.152 (C36)Leaf Valve O30 X 0.152 (C36)
-
36b414888320 Leaf Valve O28 X 0.203 (C36)Leaf Valve O28 X 0.203 (C36)
-
36c414888321 Leaf Valve O28 X 0.152 (C36)Leaf Valve O28 X 0.152 (C36)
-
37a415039000 Leaf Valve O26 X 0.254 (C36)Leaf Valve O26 X 0.254 (C36)
-
37b414888322 Leaf Valve O26 X 0.203 (C36)Leaf Valve O26 X 0.203 (C36)
-
37c414888323 Leaf Valve O26 X 0.152 (C36)Leaf Valve O26 X 0.152 (C36)
-
39b414888324 Leaf Valve O22 X 0.203 (C36)Leaf Valve O22 X 0.203 (C36)
-
39c414888325 Leaf Valve O22 X 0.152 (C36)Leaf Valve O22 X 0.152 (C36)
-
40d414888340 Leaf Valve O21 X 0.114 (C36)Leaf Valve O21 X 0.114 (C36)
-
41b414888326 Leaf Valve O20 X 0.203 (C36)Leaf Valve O20 X 0.203 (C36)
-
41c414888327 Leaf Valve O20 X 0.152 (C36)Leaf Valve O20 X 0.152 (C36)
-
41d414888328 Leaf Valve O20 X 0.114 (C36)Leaf Valve O20 X 0.114 (C36)
-
43b414888329 Leaf Valve O18 X 0.203 (C36)Leaf Valve O18 X 0.203 (C36)
-
43c414888330 Leaf Valve O18 X 0.152 (C36)Leaf Valve O18 X 0.152 (C36)
-
45a414888331 Leaf Valve O16 X 0.254 (C36)Leaf Valve O16 X 0.254 (C36)
-
45b414888332 Leaf Valve O16 X 0.203 (C36)Leaf Valve O16 X 0.203 (C36)
-
45c414888333 Leaf Valve O16 X 0.152 (C36)Leaf Valve O16 X 0.152 (C36)
-
45d415038900 Leaf Valve O16 X 0.114 (C36)Leaf Valve O16 X 0.114 (C36)
-
46a414888334 Leaf Valve O15 X 0.254 (C36)Leaf Valve O15 X 0.254 (C36)
-
46b414888335 Leaf Valve O15 X 0.203 (C36)Leaf Valve O15 X 0.203 (C36)
-
46c414888336 Leaf Valve O15 X 0.152 (C36)Leaf Valve O15 X 0.152 (C36)
-
46d414888337 Leaf Valve O15 X 0.114 (C36)Leaf Valve O15 X 0.114 (C36)
-
49a503189538 Leaf Valve O12 X 0.254 (C36)Leaf Valve O12 X 0.254 (C36)
-
49b414888338 Leaf Valve O12 X 0.203 (C36)Leaf Valve O12 X 0.203 (C36)
-
49c414888339 Leaf Valve O12 X 0.152 (C36)Leaf Valve O12 X 0.152 (C36)
-
49d415038800 Leaf Valve O12 X 0.114 (C36)Leaf Valve O12 X 0.114 (C36)
